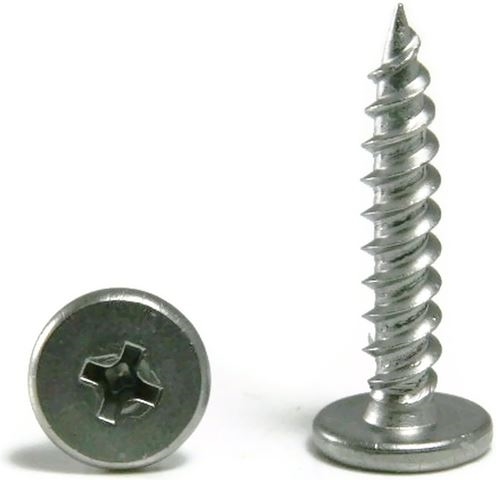

Stainless Steel Phillips Pancake Head Sheet Metal Screws
Diameter - Thread Pitch: #12-11
Phillips Pancake Head Sheet Metal Screws feature an ultra low profile head, creating a sleek, finished look to the fastener assembly. The "Pancake" name comes from the screw's low profile, which is valued for both decorative and practical reasons. Stainless Steel sheet metal screws have sharp cutting threads that cut into sheet metal, plastic or wood.
Stainless Steel Pancake Head sheet metal screws are made from Grade 410 Stainless Steel, which is harder than standard 18-8 stainless steel which makes 410 Stainless Steel Screws easier to install into various materials (including metal), because the screw is harder than the surface material.
|
Product Specifications:
|
|
Phillips Pancake Head Sheet Metal Screws
|
|
Thread Diameter Major: (#12) 0.221" - 0.215"
|
|
Thread Diameter Minor: (#12) 0.133" - 0.127"
|
|
Thread Pitch: 11 Per Inch (Coarse)
|
|
Head Diameter: Max 0.447 - Min 0.423
|
|
Overall Head Height: Max 0.086 - Min 0.084
|
|
Point Type: A
|
|
Thread Direction: Right Hand
|
|
Material: 410 Stainless Steel
|
|
Phillips Drive: #2
|
|
ANSI B18.6.4
|
|
Tensile: 180,000 PSI Heat Treated
|
|
Yield: 150,000 PSI
|
|
Hardness: 40 Rockwell C
|
Diameter x Length from Underside of Head
Product Specifications may vary slightly +/- depending upon production run
within IFI Tolerances
|
