Metric Thinwall Ribbed Low Profile Head Rivet Nut - 18-8 Stainless Steel

Metric Thinwall Ribbed Low Profile Head Rivet Nut - 18-8 Stainless Steel

Flanged Insert With a Stainless Steel Internal Threaded Nut

• Ribbed body helps prevent spinning
• For use in round holes
• Low profile head installs near flush
• Compatible with Spin-Spin or Spin-Pull tools

Rivet Nuts are used to install a threaded insert into a material where only one side is accessible. Installed “blind”, the Rivet Nut partially collapses upon installation to grip the material between the head and compressed body. Rivet Nuts are useful for securing permanent threads into materials otherwise too thin for tapped holes.

Sizes listed as Diameter - Thread Count x Length

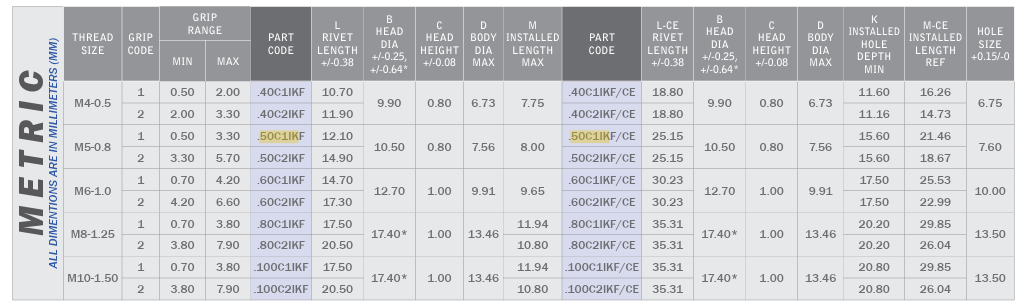

SKU Thread Size Grip Range Length Installed Length Head Diameter Head Height (Nominal) Body Dia Max Hole Size
1600-012-002 M6-1.0 0.7-4.2 14.73 0.38 12.7 0.76 9.91 10
1600-012-004 M8-1.25 0.7-3.8 17.53 11.94 17.4 0.89 13.46 13.5
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Thinwall Ribbed Low Profile Head Rivet Nut 18-8 SS M6-1.0 x 14.73 (0.7 - 4.2 Grip)
SKU #1600-012-002
Thinwall Ribbed Low Profile Head Rivet Nut 18-8 SS M6-1.0 x 14.73 (0.7 - 4.2 Grip)
SKU #1600-012-002
1
 $0.79 (0.79/ea)
100
 $67.00 (0.67/ea)
1000
 $670.00 (0.67/ea)
Subtotal: $0.00 /
Thinwall Ribbed Low Profile Head Rivet Nut 18-8 SS M8-1.25 x 17.53 (0.7 - 3.8 Grip)
SKU #1600-012-004
Thinwall Ribbed Low Profile Head Rivet Nut 18-8 SS M8-1.25 x 17.53 (0.7 - 3.8 Grip)
SKU #1600-012-004
1
 $1.68 (1.68/ea)
100
 $144.00 (1.44/ea)
1000
 $1,330.00 (1.33/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Rivet King RK-100 Metric Rivet Nut Hand Tool M3 to M6
Rivet King RK-100 Metric Rivet Nut Hand Tool M3 to M6 1600-024-012
Rivet King RK-100 Metric Rivet Nut Hand Tool M3 to M6
Rivet King RK-100 Metric Rivet Nut Hand Tool M3 to M6
Our Price: $59.00
Subtotal: $0.00 /
Rivet King RK-22 Metric Ratchet Rivet Nut Tool M4 to M12
Rivet King RK-22 Metric Ratchet Rivet Nut Tool M4 to M12 1600-024-008
Rivet King RK-22 Metric Ratchet Rivet Nut Tool M4 to M12
Rivet King RK-22 Metric Ratchet Rivet Nut Tool M4 to M12
Our Price: $425.00
Subtotal: $0.00 /
Rivet King RK-50SP Spin-Pull to Pressure Pneudraulic Rivet Nut Tool 6565 lb. Pull Force
Rivet King RK-50SP Spin-Pull to Pressure Pneudraulic Rivet Nut Tool 6565 lb. Pull Force 1600-024-002
Rivet King RK-50SP Spin-Pull to Pressure Pneudraulic Rivet Nut Tool 6565 lb. Pull Force
Rivet King RK-50SP Spin-Pull to Pressure Pneudraulic Rivet Nut Tool 6565 lb. Pull Force
Our Price: $3,055.00
Subtotal: $0.00 /
Product Specifications
Color
Silver
Head Style
Low Profile
Material
18-8 Stainless Steel
Product Type
Rivet Nut
Standards Met
ROHS Compliant
System of Measurement (Unit)
Metric
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
