Stainless Steel Internal Tooth Lock Washers
Serrated Lock Washers in 410 Stainless Steel
- Used to add tension to a fastener assembly
- Internal teeth bite into the assembly to add tension
- Extra tension prevents unintentional fastener rotation do to vibration
- Often chosen over external tooth lock washers for aesthetic reasons
- 410 Stainless steel is primarily used when a harder metal is desired
- Actual measurements may vary slightly +/- depending on production run

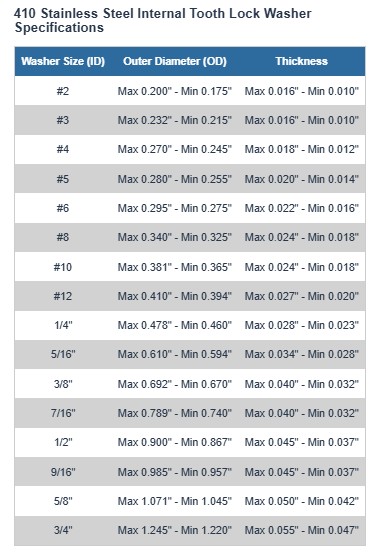

410 Stainless Steel Internal Tooth Lock Washer Specifications
| Washer Size (ID) | Outer Diameter (OD) | Thickness |
|
#2
|
Max 0.200" - Min 0.175" | Max 0.016" - Min 0.010" |
|
#3
|
Max 0.232" - Min 0.215" | Max 0.016" - Min 0.010" |
|
#4
|
Max 0.270" - Min 0.245" | Max 0.018" - Min 0.012" |
|
#5
|
Max 0.280" - Min 0.255" | Max 0.020" - Min 0.014" |
|
#6
|
Max 0.295" - Min 0.275" | Max 0.022" - Min 0.016" |
|
#8
|
Max 0.340" - Min 0.325" | Max 0.024" - Min 0.018" |
|
#10
|
Max 0.381" - Min 0.365" | Max 0.024" - Min 0.018" |
|
#12
|
Max 0.410" - Min 0.394" | Max 0.027" - Min 0.020" |
|
1/4"
|
Max 0.478" - Min 0.460" | Max 0.028" - Min 0.023" |
| 5/16" | Max 0.610" - Min 0.594" | Max 0.034" - Min 0.028" |
| 3/8" | Max 0.692" - Min 0.670" | Max 0.040" - Min 0.032" |
| 7/16" | Max 0.789" - Min 0.740" | Max 0.040" - Min 0.032" |
| 1/2" | Max 0.900" - Min 0.867" | Max 0.045" - Min 0.037" |
| 9/16" | Max 0.985" - Min 0.957" | Max 0.045" - Min 0.037" |
| 5/8" | Max 1.071" - Min 1.045" | Max 0.050" - Min 0.042" |
| 3/4" | Max 1.245" - Min 1.220" | Max 0.055" - Min 0.047" |
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Grade
410
Material
Stainless Steel
Product Type
Internal Tooth Lock Washer
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
