Hex Cap Screws Grade 2 Zinc 1-8"

1"-8 Zinc Plated Hex Cap Screws - Grade 2

Diameter - Thread Pitch: 1" - 8


  • 1"-8
  • Hexagon head designed to be driven by a wrench or socket
  • Also called hex cap bolts, hex bolts, tap bolts or hex cap screws
  • Grade 2 Zinc plated steel hex cap screws have a layer of corrosion resistance
  • Distinguished by having no hash marks on top of the bolt's head
  • REACH and RoHS Compliant

A hex cap screw in smaller sizes may not have a shoulder. When a hex cap screw is fully threaded it can also be referred to as a tap bolt.

A Hex Bolt is measured as: Diameter x Thread Pitch x Length from Under Head

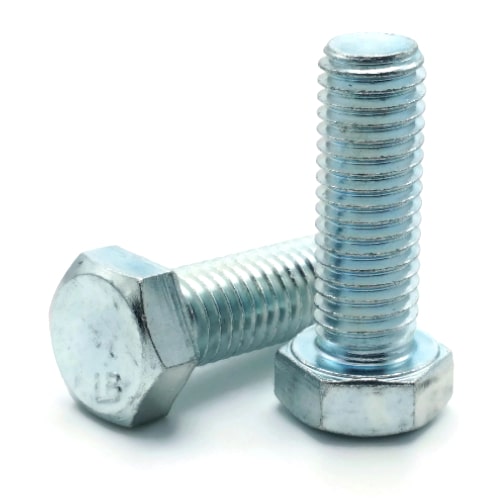

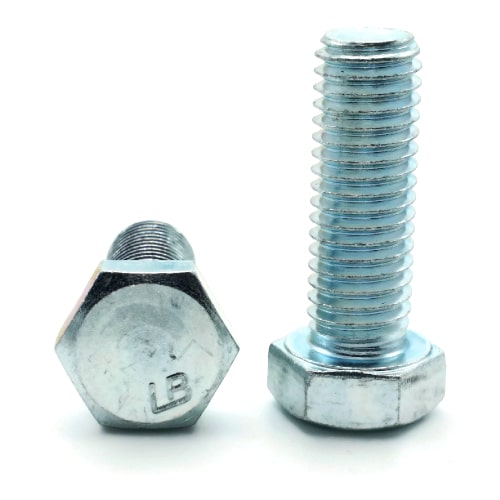

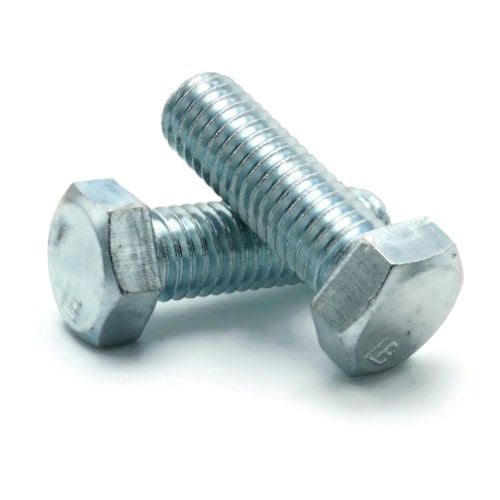

FT: Fully Threaded

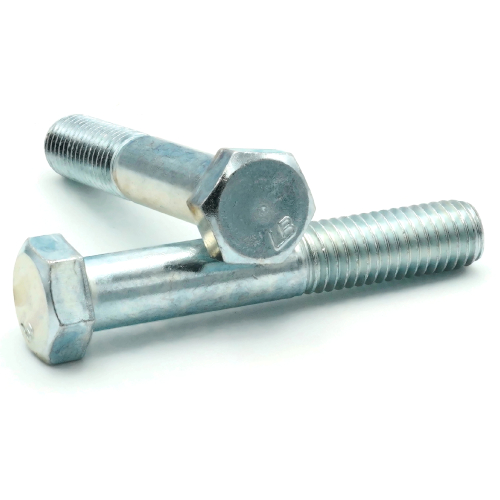

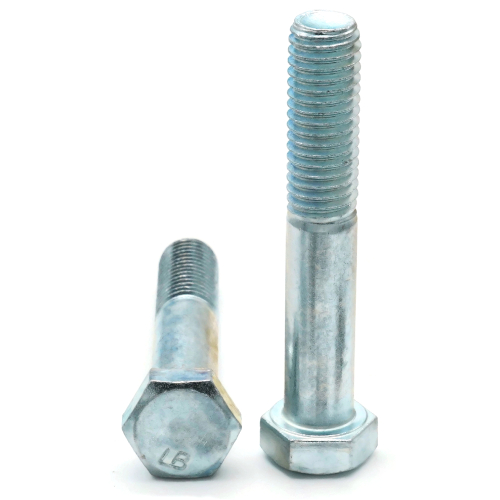

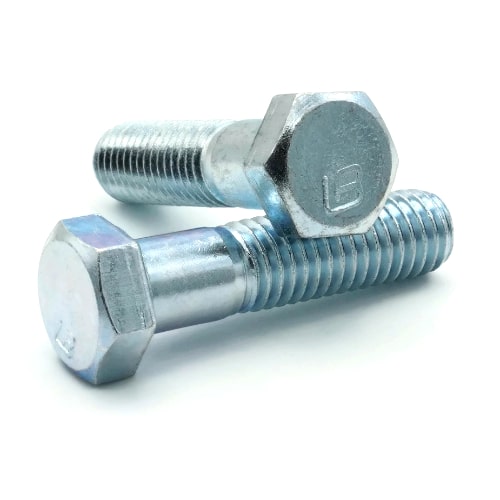

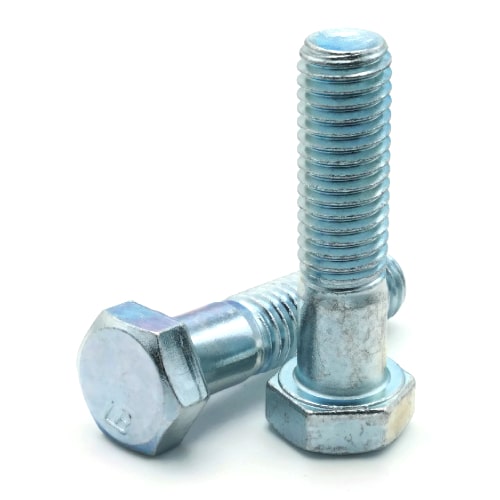

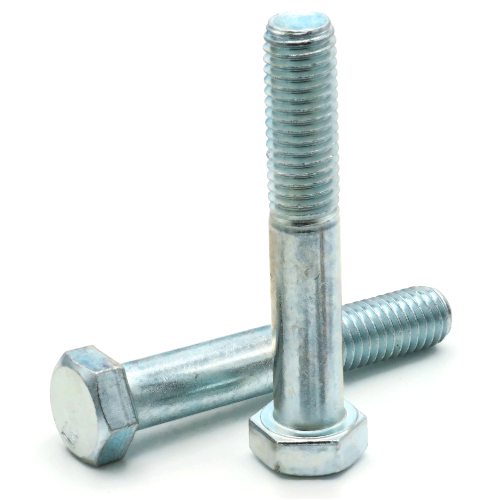

PT: Partially Threaded


** 1"-8 Hex Cap Screws listed as PT, usually have a threaded portion of about 2-1/4".
However, this can vary slightly from manufacturer to manufacturer.

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
1"-8 x 2" FT
1"-8 x 2" FT
1 $7.79 (7.79/ea)
100 $417.00 (4.17/ea)
1000 $4,150.00 (4.15/ea)
Subtotal: $0.00 /
1"-8 x 2-1/2" FT
1"-8 x 2-1/2" FT
1 $7.89 (7.89/ea)
100 $470.00 (4.7/ea)
1000 $4,680.00 (4.68/ea)
Subtotal: $0.00 /
1"-8 x 2-3/4" FT
1"-8 x 2-3/4" FT
1 $8.39 (8.39/ea)
100 $502.00 (5.02/ea)
1000 $5,010.00 (5.01/ea)
Subtotal: $0.00 /
1"-8 x 3" FT
1"-8 x 3" FT
1 $7.71 (7.71/ea)
100 $536.00 (5.36/ea)
1000 $5,330.00 (5.33/ea)
Subtotal: $0.00 /
1"-8 x 3-1/4" PT
1"-8 x 3-1/4" PT
1 $8.17 (8.17/ea)
100 $569.00 (5.69/ea)
1000 $5,680.00 (5.68/ea)
Subtotal: $0.00 /
1"-8 x 3-1/2" PT
1"-8 x 3-1/2" PT
1 $10.04 (10.04/ea)
100 $598.00 (5.98/ea)
1000 $5,960.00 (5.96/ea)
Subtotal: $0.00 /
1"-8 x 4" PT
1"-8 x 4" PT
1 $9.56 (9.56/ea)
100 $663.00 (6.63/ea)
1000 $6,610.00 (6.61/ea)
Subtotal: $0.00 /
1"-8 x 4-1/2" PT
1"-8 x 4-1/2" PT
1 $12.26 (12.26/ea)
100 $727.00 (7.27/ea)
1000 $7,230.00 (7.23/ea)
Subtotal: $0.00 /
1"-8 x 5" PT
1"-8 x 5" PT
1 $13.32 (13.32/ea)
100 $793.00 (7.93/ea)
1000 $7,890.00 (7.89/ea)
Subtotal: $0.00 /
1"-8 x 12" PT
1"-8 x 12" PT
1 $31.49 (31.49/ea)
100 $1,872.00 (18.72/ea)
1000 $18,700.00 (18.7/ea)
Subtotal: $0.00 /

Frequently Used With

1 $2.24 (2.24/ea)
100 $151.00 (1.51/ea)
1000 $1,210.00 (1.21/ea)
Subtotal: $0.00
1 $0.51 (0.51/ea)
100 $36.00 (0.36/ea)
1000 $280.00 (0.28/ea)
Subtotal: $0.00
1 $1.00 (1/ea)
100 $66.00 (0.66/ea)
1000 $560.00 (0.56/ea)
Subtotal: $0.00
1 $0.73 (0.73/ea)
100 $40.00 (0.4/ea)
1000 $340.00 (0.34/ea)
Subtotal: $0.00

Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
1"
Drive Style
External Hex
Finish
Zinc Plated
Grade
2
Head Height
Max 0.627 - Min 0.591
Head Height Basic
39/64"
Head Style
Hex
Material
Steel
Product Type
Hex Cap Screws
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
8 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Width Across Corners
Max 1.732 - Min 1.675
Wrench Size
1-1/2"
