H6 Hurricane Tie Framing Connectors - 316 Stainless Steel
H6 Hurricane Tie Framing Connector Anchors in 316 Stainless Steel



Alternative Views:


Stainless Steel H6 Rafter & Hurricane Ties

316 Stainless Steel Framing Connectors for Rafters, Trusses, and Joists

Hurricane Ties, also known as rafter or truss ties, are used for deck or roof framing to secure rafters, trusses, or joists to the wood framework. This is done to resist uplift and lateral forces, such as those that come from a hurricane or severe storm. Proudly made in the USA.

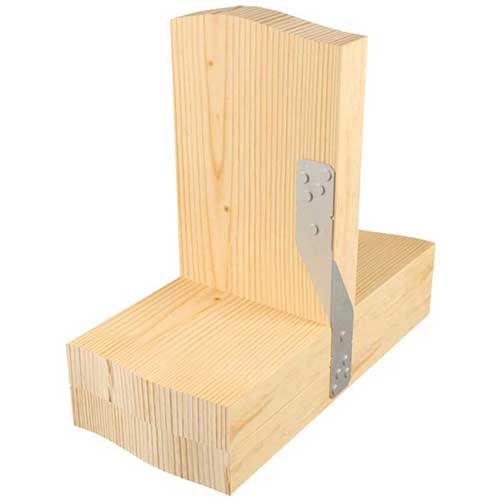

H6 Hurricane Ties are installed across two different pieces of wood: the top plate or wall plate and a stud. H6 ties are installed by connecting the two pieces of lumber, securing them together (see image for example).

All Hurricane ties in this selection are made of 316 Stainless Steel for superior corrosion resistance. 316 Stainless Steel is well suited for applications in severe, harsh, or marine or saltwater environments. 316 Stainless steel hurricane ties should only be installed with 316 stainless steel nails to maintain the manufacturer's warranty.

Please note: depending on pitch, birdsmouth notching may be required with some models to enable installers to fill all nail holes.

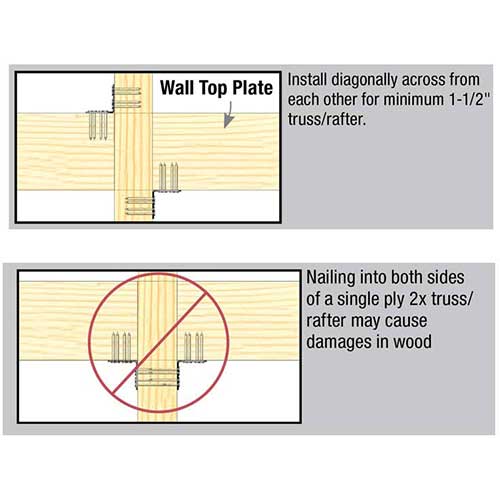

Caution: Do not install Hurricane ties into both sides of a given truss, rafter, or joist. Doing so may cause damages in the wood and risks collision of the nails (see image). Instead, install them diagonally across from each other.


Hurricane Tie: H6
Manufacturer Part Number: RT8A-SS
Simpson Part Number: H8SS
Uplift Load (Lbs.): 650
Lateral Load (Lbs.): 180
Steel Gauge: 18
Material: 316 Stainless Steel

Note: All allowable loads listed are for S-P-F (Spruce-Pine-Fir).

Made in the USA
Related Products:
Joist Hanger Nails
Joist Hanger Nails



Item# Item Name Our Price Qty Add
6110-012-0002 Hurricane Tie Framing Connectors 316 SS - H6 - Qty-1
$8.47
6110-012-0004 Hurricane Tie Framing Connectors 316 SS - H6 - Qty-2
$16.38
6110-012-0006 Hurricane Tie Framing Connectors 316 SS - H6 - Qty-4
$32.31
6110-012-0008 Hurricane Tie Framing Connectors 316 SS - H6 - Qty-10
$79.08
6110-012-0010 Hurricane Tie Framing Connectors 316 SS - H6 - Qty-100 (FULL BOX)
$779.42
