Coupling Reducer Nuts Zinc Plated

Zinc Plated Steel Reducer Nuts

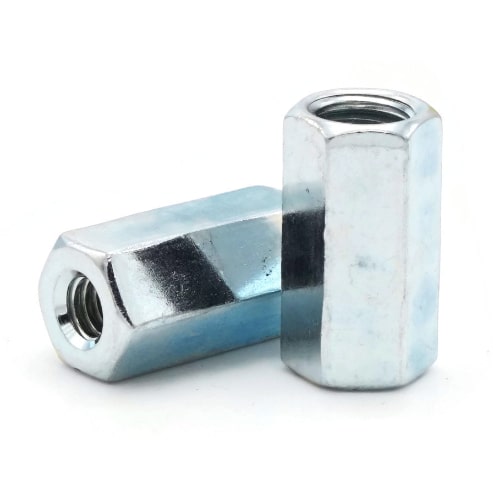

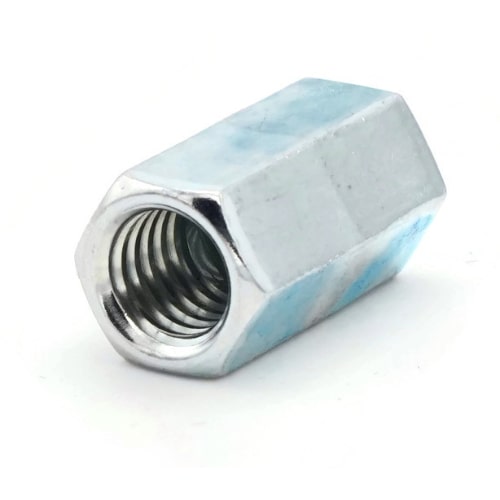

Rod Coupling Nut, or Extension Nut, in CR+3 Zinc Plated A563 Grade A Steel


  • Join two male threads
  • Commonly used with threaded rod
  • Also known as Extension Nuts

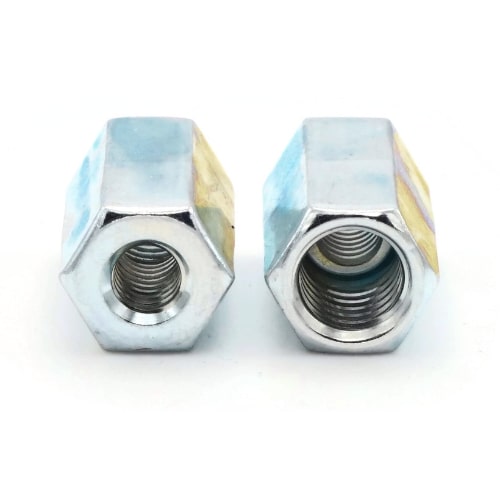

  • Available in reducer versions to connect two different sizes
  • Make longer rod assemblies from shorter lengths
  • Fine or coarse thread
  • Typically wrench driven
  • Sizes listed as: Diameter - Pitch Min. to Diameter-Pitch Max (Width Across Flats x Length)

Nut Sizes Flats Length
3/8"-16 to 1/4"-20 1/2" 1"
1/2"-13 to 3/8"-16 5/8" 1-1/4"
3/4"-10 to 5/8"-11 1" 1-1/2"
1"-8 to 5/8"-11 - -
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Reducer Nut Zinc - 3/8"-16 to 1/4"-20 (1/2" F x 1" L)-
SKU #1102-080-0002
Reducer Nut Zinc - 3/8"-16 to 1/4"-20 (1/2" F x 1" L)-
SKU #1102-080-0002
1
NA
25
$10.00 (0.4/ea)
100
$34.00 (0.34/ea)
1000
$320.00 (0.32/ea)
Subtotal: $0.00 /
Reducer Nut Zinc - 1/2"-13 to 3/8"-16 (5/8" F x 1-1/4" L)-
SKU #1102-080-0022
Reducer Nut Zinc - 1/2"-13 to 3/8"-16 (5/8" F x 1-1/4" L)-
SKU #1102-080-0022
1
$0.74 (0.74/ea)
25
$17.50 (0.7/ea)
100
$58.00 (0.58/ea)
1000
$550.00 (0.55/ea)
Subtotal: $0.00 /
Reducer Nut Zinc - 3/4"-10 to 5/8"-11 (1" F x 1-1/2" L)
SKU #1102-080-0052
Reducer Nut Zinc - 3/4"-10 to 5/8"-11 (1" F x 1-1/2" L)
SKU #1102-080-0052
1
$2.97 (2.97/ea)
25
$67.50 (2.7/ea)
100
$222.00 (2.22/ea)
1000
$2,080.00 (2.08/ea)
Subtotal: $0.00 /

Product Specifications
Color
Silver
Drive Style
External Hex
Finish
Zinc Plated
Grade
A563 Grade A
Material
Steel
Product Type
Reducer Coupling Nut
Standards Met
REACH, RoHS, IFI-128
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
