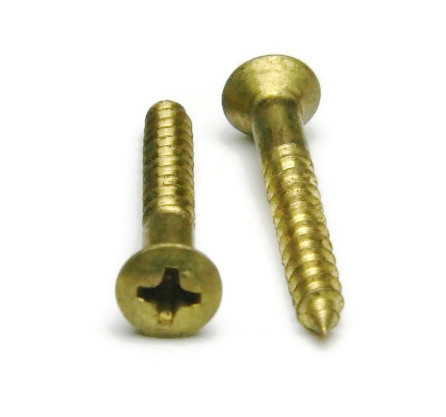

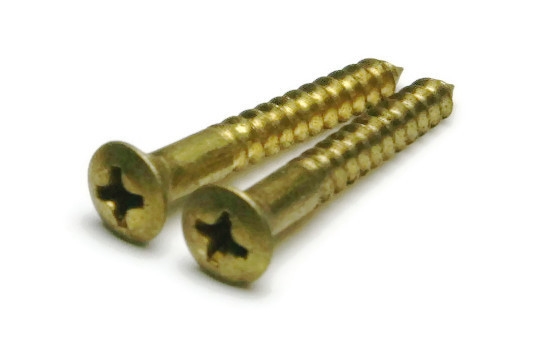

#8-15 Brass Phillips Oval Head Wood Screws
Diameter - Thread Pitch: #8-15
#8 Brass Phillips oval head wood screws are designed to hold two pieces of wood together tightly and efficiently.
- Partially threaded with a shoulder
- Designed to slide through top piece of wood and provide a strong hold
- Features a countersunk and undercut head
- Phillips Drive Style
- Very corrosion resistant but also very soft material
- Not suitable for all applications
- Used in marine, saltwater, high heat, and other harsh environments
Wood Screws are usually threaded about 2/3 of length; short lengths may be full thread.
Sizes Listed As:
Diameter x Length from Top of Head
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Yellow
Color May Vary
Color and sheen may vary
Corrosion Resistant
Yes
Countersink
82 Degree
Diameter
#8
Drive Style
Phillips
Head Diameter
Max 0.332
Head Style
Oval
Material
Brass
Phillips Drive
#2
Product Type
Wood Screws
System of Measurement (Unit)
Inch
Thread Diameter
(#8) Max 0.168 - Min 0.145
Thread Direction
Right Hand
Thread Pitch (Count)
15 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
