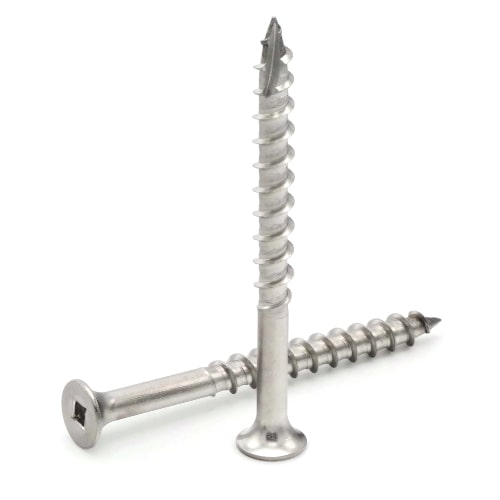

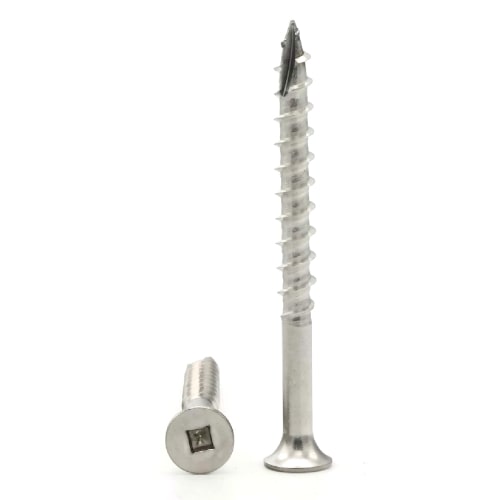

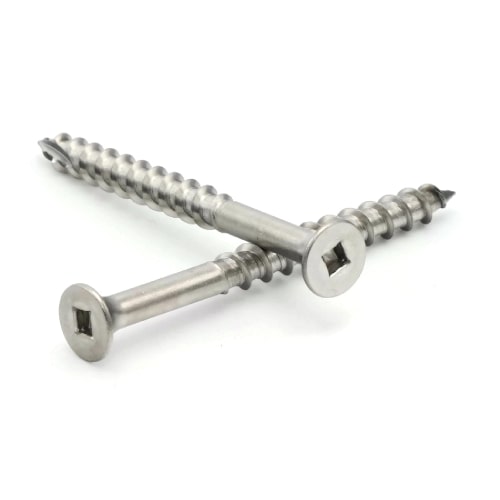

#6-7 Stainless Steel Square Drive Bugle Head Deck Screws
Type 17 Point
- #6
- Available in different lengths
- Designed to drive easily
- Type 17 Point
- Fasten deck boards to main beams
- Square drive style helps eliminate stripping effect
- Lay flat with the surface they are installed in
- 305 Stainless Steel is the most common material for a deck screw
- #2 Square Drive (#1 Square Drive for the 1-1/4" Length)
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Countersink
Bugle
Diameter
#6
Drive Style
Internal Square
Grade
305
Head Diameter
Max 0.289 - Min 0.279
Head Height Max
0.025
Head Style
Bugle
Material
Stainless Steel
Overall Head Height
Max 0.025 - Min 0.021
Pilot Hole
7/64"
Point Type
Type 17
Product Type
Deck Screws
Square Drive
#2 (#1 For 1-1/4" Length)
System of Measurement (Unit)
Inch
Thread Diameter
0.156 (#6)
Thread Direction
Right Hand
Thread Pitch (Count)
7 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
