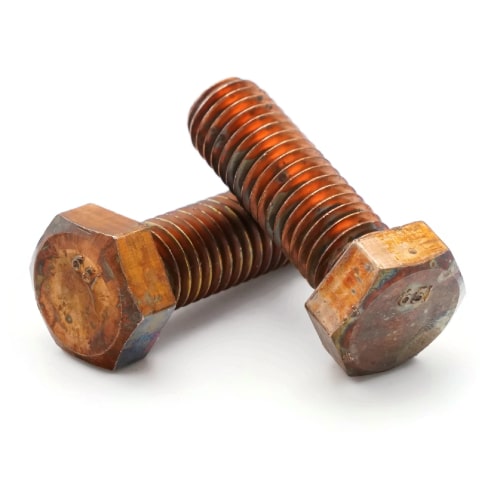

Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 3/4", Full Thread

Diameter - Thread Pitch: 3/8" - 16

Quantity	Unit price
To 99	$2.37*
To 999	$1.66*
From 1000	$1.31*

Across Flats (Width): 9/16" (Max 0.562 - Min 0.551)
Color: Bronze
Color May Vary: Color and sheen may vary
Condition: New
Corrosion Resistant: Yes

Diameter: 3/8"
Drive Style: External Hex
Head Type: Hex Head
Thread Direction: Right Hand
Thread Type: Coarse
Fit: 2A
FT = Full Thread: Yes
Head Height: Basic 15/16", Max 0.243 - Min 0.226
Head Height Basic: 15/64"
Head Height Max: 0.243
Head Style: Hex
Length: 3/4"
Marine Grade: Yes
Material: Silicon Bronze
Part Number: 720572162509
Product Type: Hex Tap Bolts
Size System: US
Size Type: Regular
System of Measurement: Inch
Tensile PSI: 100,000 - 125,000
Thread Direction: Right Hand
Thread Pitch: 16 Per Inch
Thread Size: 3/8"-16
Thread Standard: UNC
Thread Type: Coarse
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Weight: 1 lb
Wrench Size: 9/16"

Toggle More

3/8"-16
Alloy 651 Silicon Bronze
Tap bolts are fully threaded from the point to the underside of the hex head
Also referred to as a hex bolt
Hexagonal head designed to be driven by wrench or socket
Silicon bronze tap bolts are commonly used for their look as a finishing bolt
Superior corrosion resistance to 316 stainless steel
Commonly used for:
- Plumbing
- Electrical
- Power Plants
NOTE: Color and sheen may vary

A Hex Bolt is measured as: Diameter x Thread Pitch x Length from Under Head

Note: All Silicon Bronze products will develop a patina based on the environment and time. These fasteners are not coated with any sealants to prevent a patina from forming. Depending on when the product was manufactured, you may receive a product that has started to develop a patina.

SIZE/SKU	SELECT PACKAGE QUANTITY			SUBTOTAL
3/8"-16 x 3/4" FT 1904-006-0002	1 $2.37 (2.37/ea)	100 $166.00 (1.66/ea)	1000 $1,310.00 (1.31/ea)	Quantity for Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 3/4", Full Thread $0.00
3/8"-16 x 1" FT 1904-006-0012	1 $2.49 (2.49/ea)	100 $174.00 (1.74/ea)	1000 $1,600.00 (1.6/ea)	Quantity for Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 1", Full Thread $0.00
3/8"-16 x 1-1/4" FT 1904-006-0022	1 $2.69 (2.69/ea)	100 $186.00 (1.86/ea)	1000 $1,710.00 (1.71/ea)	Quantity for Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 1-1/4", Full Thread $0.00
3/8"-16 x 1-1/2" FT 1904-006-0032	1 $2.94 (2.94/ea)	100 $207.00 (2.07/ea)	1000 $1,900.00 (1.9/ea)	Quantity for Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 1-1/2", Full Thread $0.00
3/8"-16 x 1-3/4" FT 1904-006-0042	1 $3.16 (3.16/ea)	100 $221.00 (2.21/ea)	1000 $2,030.00 (2.03/ea)	Quantity for Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 1-3/4", Full Thread $0.00
3/8"-16 x 2" FT 1904-006-0052	1 $3.48 (3.48/ea)	100 $240.00 (2.4/ea)	1000 $2,210.00 (2.21/ea)	Quantity for Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 2", Full Thread $0.00
3/8"-16 x 2-1/2" FT 1904-006-0062	1 $3.58 (3.58/ea)	100 $259.00 (2.59/ea)	1000 $2,380.00 (2.38/ea)	Quantity for Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 2-1/2", Full Thread $0.00
3/8"-16 x 3" FT 1904-006-0072	1 $3.74 (3.74/ea)	100 $287.00 (2.87/ea)	1000 $2,640.00 (2.64/ea)	Quantity for Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 3", Full Thread $0.00
3/8"-16 x 3-1/2" FT 1904-006-0082	1 $6.43 (6.43/ea)	100 $497.00 (4.97/ea)	1000 $4,570.00 (4.57/ea)	Quantity for Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 3-1/2", Full Thread $0.00
3/8"-16 x 4" FT 1904-006-0092	1 $7.01 (7.01/ea)	100 $540.00 (5.4/ea)	1000 $4,960.00 (4.96/ea)	Quantity for Hex Tap Bolts, Silicon Bronze, 3/8"-16 x 4", Full Thread $0.00

Page Total: $0.00
