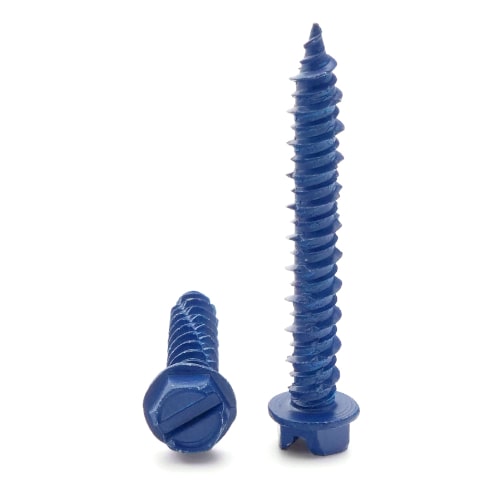

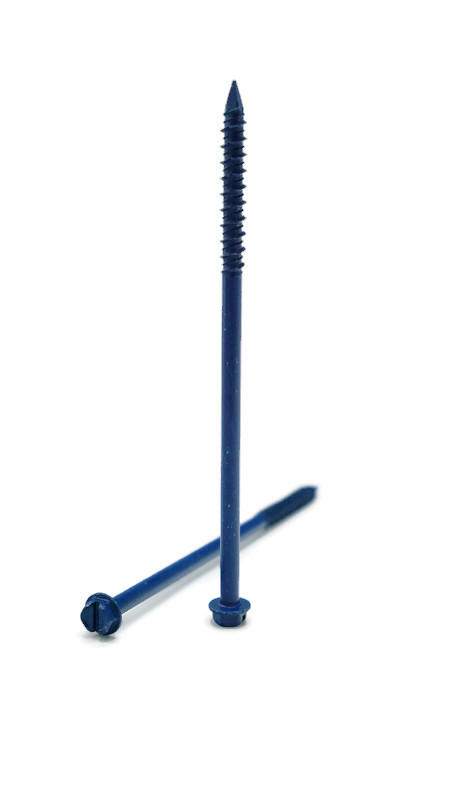

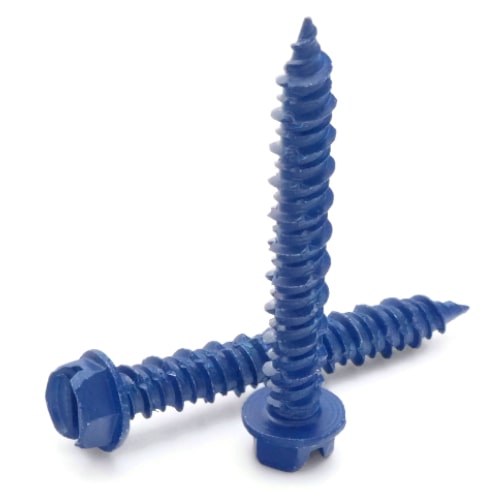

3/16" Slotted Hex Washer Head Concrete Screw

3/16" Slotted Hex Washer Head Concrete Screws

Screw Diameter: 3/16"


  • Cut its own threads
  • Used for concrete, brick or block
  • Maximum performance achieved when using the Concrete screw, Condrive installation tool and carbide tipped drill bits
  • Pre-drilled hole should be one size smaller than the screw size
  • One standard 5/32" masonry bit is included for each SKU purchased, with a minimum pack size of 100 pieces.
Select Products Below
See Product Specifications
Size:
Qty
Size
Select Package Quantity
SubTotal
Loading ...
Product Specifications
Across Flats (Width)
1-1/8" (Max 1.125 - Min 1.100)
Body Diameter
3/16"
Color
Blue
Corrosion Resistant
Yes
Diameter
3/16"
Drill (Hole) Size
5/32"
Drive Style
External Hex Slotted
Finish
Blue Climaseal
Head Style
Hex Washer
Material
Carbon Steel
Product Type
Masonry Anchor
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Wrench Size
1-1/8"
