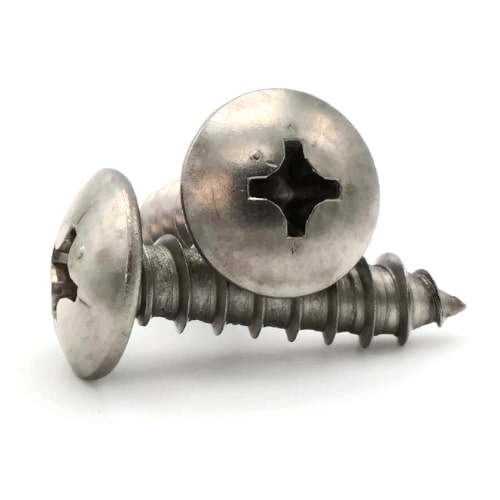

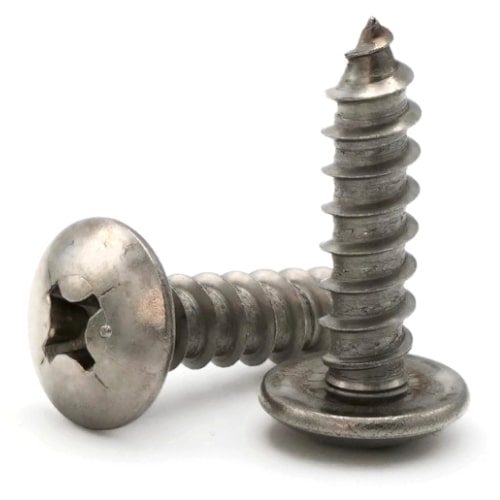

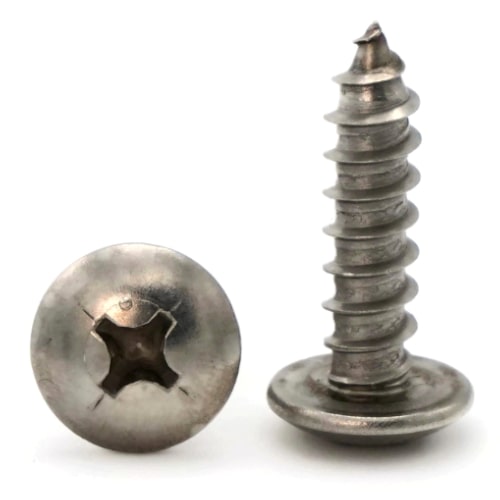

Sheet Metal Screws, Phillips Truss Head, Stainless Steel 316, #14 x 3/4"
Diameter - Thread Pitch: #14-10
| Quantity | Unit price |
|---|---|
| To 99 |
$0.63*
|
| To 999 |
$0.47*
|
| From 1000 |
$0.41*
|
- ANSI: ANSI B18.6.4
- Color: Silver
- Corrosion Resistant: Yes
- Diameter: #14
- Drive Style: Phillips
- Elongation: 30%
- Head Type: Truss Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 316
- Hardness: 100 Rockwell B
- Head Height Max: 0.15
- Head Diameter: Max 0.573 - Min 0.546
- Head Style: Truss
- Length: 3/4"
- Marine Grade: Yes
- Material: Stainless Steel
- Overall Head Height: Max 0.150 - Min 0.133
- Phillips Drive: #3
- Point Type: A
- Product Type: Sheet Metal Screws
- Reduction: 0.4
- Standards Met: ANSI B18.6.4
- System of Measurement: Inch
- Thread Diameter Major: (#14) 0.254" - 0.248"
- Thread Diameter Minor: (#14) 0.185" - 0.178"
- Thread Direction: Right Hand
- Thread Pitch: 10 Per Inch
- Thread Size: #14-10
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Yield PSI: 55,000 - 75,000 PSI
- #14-10
- Sharp cutting threads that cut into material for better retention
- Fully Threaded
- Excellent for attaching metal hardware to wood
- Suitable for Salt water moisture environments
- Extremely Corrosion Resistant
- Most commonly used for:
- Sheet Metal
- Wood
- Plastic
- Sizes listed below as: Diameter - Thread Pitch
Product number:
6014-010-002
