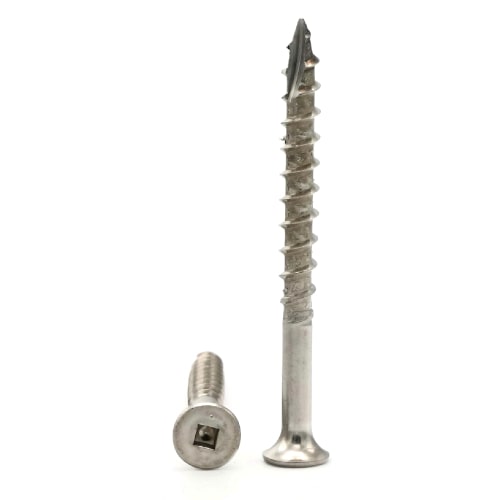

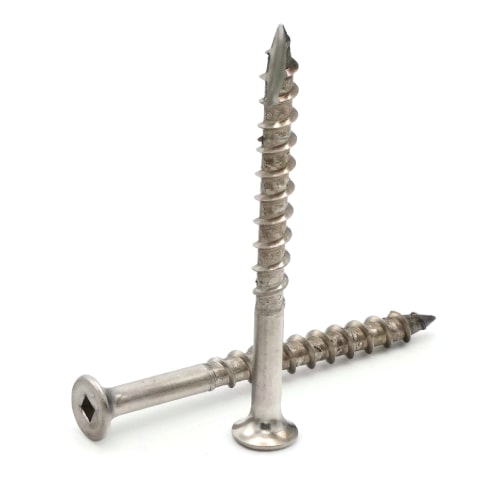

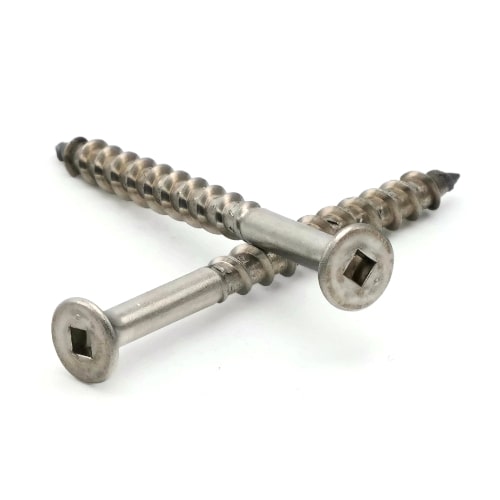

#12 | 316 Stainless Steel Square Drive Bugle Head Deck Screw
Type 17 Point | 316 Stainless Steel
- #12
- Available in different lengths
- Designed to drive easily
- Used for: Fastening deck boards to beams
- Square drive style helps eliminate stripping effect
- Lay flat with the surface they are installed in
- 316 Stainless Steel is extremely resistant to rust making it the material of choice for locations near salt water
See Product Specifications
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Countersink
Bugle
Diameter
#12
Drive Style
Square
Grade
316
Head Diameter
Max 0.423 - Min 0.413
Head Height Max
0.066
Head Style
Bugle
Marine Grade
Yes
Material
Stainless Steel
Overall Head Height
Max 0.066 - Min 0.064
Pilot Hole
7/32"
Point Type
Type 17
Product Type
Deck Screws
Square Drive
#3
System of Measurement (Unit)
Inch
Thread Diameter
0.232 (#12)
Thread Direction
Right Hand
Thread Pitch (Count)
8 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
