Thread Insert for Metal, Metric Internal - Imperial External, 303 Stainless Steel #653-10F, M10-1.25

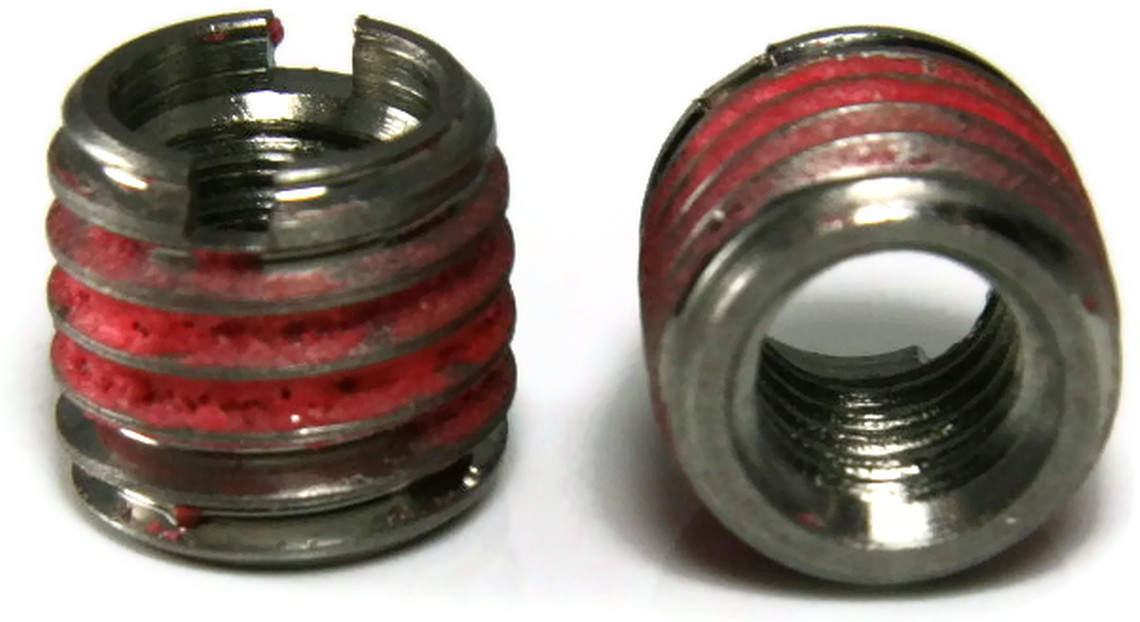

M10-1.25 Stainless Steel Threaded Inserts for Metal

Internal Thread Size: M10-1.25 / External Thread Size: 9/16"-12

M10 - 1.25 Stainless Steel Threaded Inserts are machined out of 303 Stainless Steel. These inserts follow Metric measurements internally and Imperial Measurements externally.

  • Use standard taps for installation
  • For use in soft metals
  • Replace stripped out or worn holes
  • Metric Internal Threading, Imperial External Threading
  • First, Drill with a standard drill
  • Then, Tap the hole
  • Finally, Turn in the E-Z LOK like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK drive tool

Sizes Listed As:
Manufacturer Part Number, Internal Diameter x External Diameter

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Metric/US Thread Insert 303 Stainless Steel #653-10F, M10-1.25 x 9/16"-12
SKU #1097-008-0002
Metric/US Thread Insert 303 Stainless Steel #653-10F, M10-1.25 x 9/16"-12
SKU #1097-008-0002
1
 $10.91 (10.91/ea)
10
 $104.80 (10.48/ea)
100
 $1,002.00 (10.02/ea)
1000
 $9,980.00 (9.98/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
M10
Drill (Hole) Size
31/64"
Drive Style
Slotted/E-Z Lok Drive Tool
External Thread
9/16"-12
EZ Lok Drive Took
500-5
Grade
303
Head Style
No Head
Internal Thread
M10-1.25
Manufacturer Part Number
653-10F
Material
Stainless Steel
Product Type
Thread Insert
System of Measurement (Unit)
Millimeter
Thread Direction
Right Hand
Thread Pitch (Count)
1.25 mm
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
