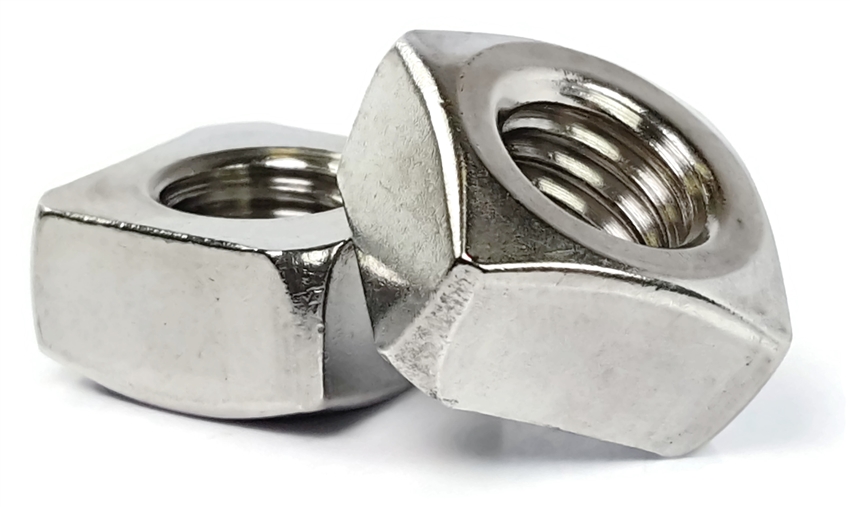

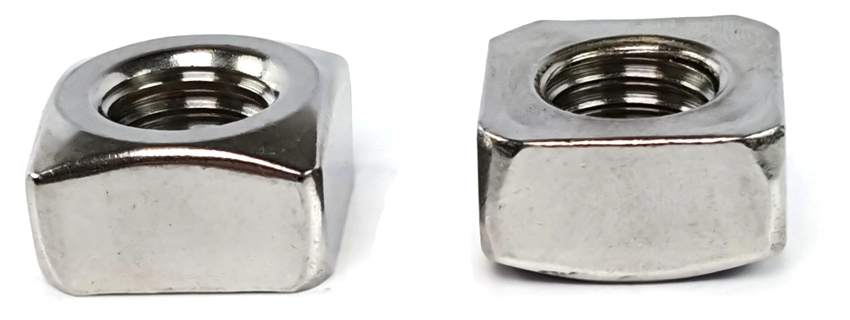

Square Nuts 316 Stainless Steel

316 Stainless Steel Square Nuts

Four-Sided Square Nuts in Corrosion Resistant 316 Stainless Steel


  • Four sided square nut
  • Available in UNC Coarse thread sizes
  • Greater resistance to loosening
  • More contact with surface of fastener
  • Less likely to lose their shape from constant loosening/tightening
  • Use with a flat washer to avoid damage from sharp edges
  • Highly corrosion resistant 316 stainless steel
  • Suitable for saltwater environments
  • Sizes listed below as: Internal Diameter - Thread Pitch

Size Across Flats
(Max-Min)
Thickness
(Max-Min)
Square Shape
1/4" 0.438-0.423 0.193-0.178 Flat & Beveled
5/16" 0.562-0.545 0.225-0.208 Beveled
3/8" 0.625-0.607 0.257-0.239 Beveled
1/2" 0.812-0.788 0.458-0.418 Beveled
5/8" 1.000-0.969 0.569-0.525 Beveled
3/4" 1.125-1.088 0.680-0.632 Beveled
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Square Nuts 316 Stainless Steel 1/4"-20
SKU #6002-012-002
Square Nuts 316 Stainless Steel 1/4"-20
SKU #6002-012-002
1
$0.86 (0.86/ea)
25
$19.50 (0.78/ea)
100
$52.00 (0.52/ea)
1000
$480.00 (0.48/ea)
Subtotal: $0.00 /
Square Nuts 316 Stainless Steel 5/16"-18
SKU #6002-012-012
Square Nuts 316 Stainless Steel 5/16"-18
SKU #6002-012-012
1
$1.61 (1.61/ea)
25
$36.50 (1.46/ea)
100
$97.00 (0.97/ea)
1000
$890.00 (0.89/ea)
Subtotal: $0.00 /
Square Nuts 316 Stainless Steel 3/8"-16
SKU #6002-012-022
Square Nuts 316 Stainless Steel 3/8"-16
SKU #6002-012-022
1
$2.61 (2.61/ea)
25
$59.25 (2.37/ea)
100
$158.00 (1.58/ea)
1000
$1,460.00 (1.46/ea)
Subtotal: $0.00 /
Square Nuts 316 Stainless Steel 1/2"-13
SKU #6002-012-032
Square Nuts 316 Stainless Steel 1/2"-13
SKU #6002-012-032
1
$5.19 (5.19/ea)
25
$118.00 (4.72/ea)
100
$315.00 (3.15/ea)
1000
$2,900.00 (2.9/ea)
Subtotal: $0.00 /
Square Nuts 316 Stainless Steel 5/8"-11
SKU #6002-012-042
Square Nuts 316 Stainless Steel 5/8"-11
SKU #6002-012-042
1
$19.26 (19.26/ea)
25
$437.75 (17.51/ea)
100
$1,168.00 (11.68/ea)
1000
$10,740.00 (10.74/ea)
Subtotal: $0.00 /
Square Nuts 316 Stainless Steel 3/4"-10
SKU #6002-012-052
Square Nuts 316 Stainless Steel 3/4"-10
SKU #6002-012-052
1
$27.21 (27.21/ea)
25
$618.50 (24.74/ea)
100
$1,650.00 (16.5/ea)
1000
$15,180.00 (15.18/ea)
Subtotal: $0.00 /




Product Specifications
Color
Silver
Corrosion Resistant
Yes
Drive Style
External Square
Grade
316
Marine Grade
Yes
Material
Stainless Steel
Product Type
Square Nut
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
