Spot Weld Round Base T Nuts, Plain Steel, 1/4"-20 x 7/16"
Weld Nut with a Round Base For Spot Welding
| Quantity | Unit price |
|---|---|
| To 99 |
$0.34*
|
| To 999 |
$0.27*
|
| From 1000 |
$0.25*
|
- Color: Silver
- Diameter: 1/4"
- Thread Direction: Right Hand
- Finish: Plain
- Fit: 2B
- Internal Thread: 1/4/2020
- Length: 7/16"
- Material: Low Carbon Steel
- Product Type: Spot Weld T-Nut
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 20 Per Inch
- Thread Size: 1/4"-20
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

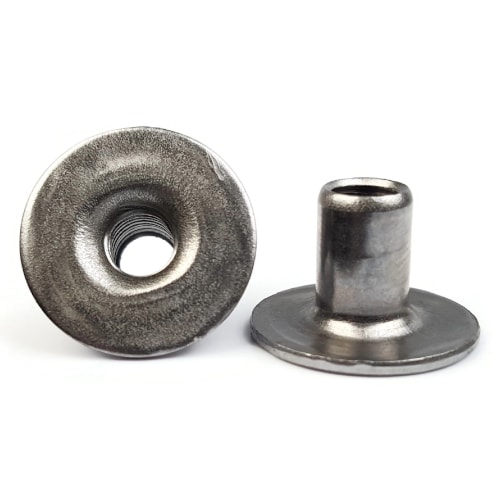

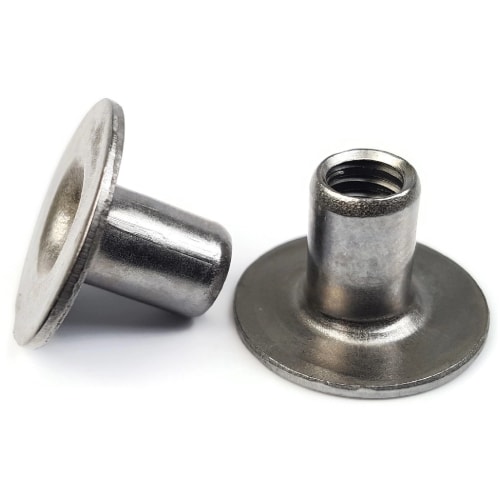

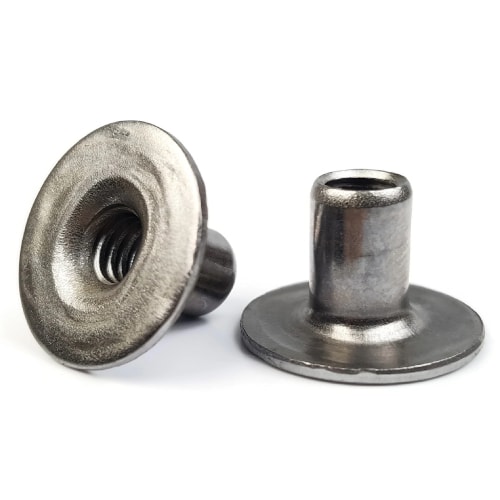

Round Base Spot Weld T-Nuts feature a circular base with a threaded barrel rising from the center, giving the nut a "T" shape. The circualar base is flat all round with no projections to prevent mating of the flange to the base material. The circular base also doubles as a flange for distributing load even across the base material.
Spot Weld T-Nuts are ideal for through-the-hole and flush mount applications. The fully circular slim base allows the weld nut to be easily spotwelded while eliminating the need for orientation during welding.
Round Base Spot Weld T-Nuts are available in Plain Low Carbon Steel
Spot Weld T Nuts sizes are displayed as the Thread Size (Diameter x Thread Pitch) x the Barrel Length
You May Also Like:
| Welding Safety Equipment |
|
| Thread Size | Barrel Length | Thickness | Base Diameter | Barrel Diameter |
| 1/4"-20 | 7/16" | 0.047" | 3/4" | 0.305" |
Product number:
8102-002-0092
