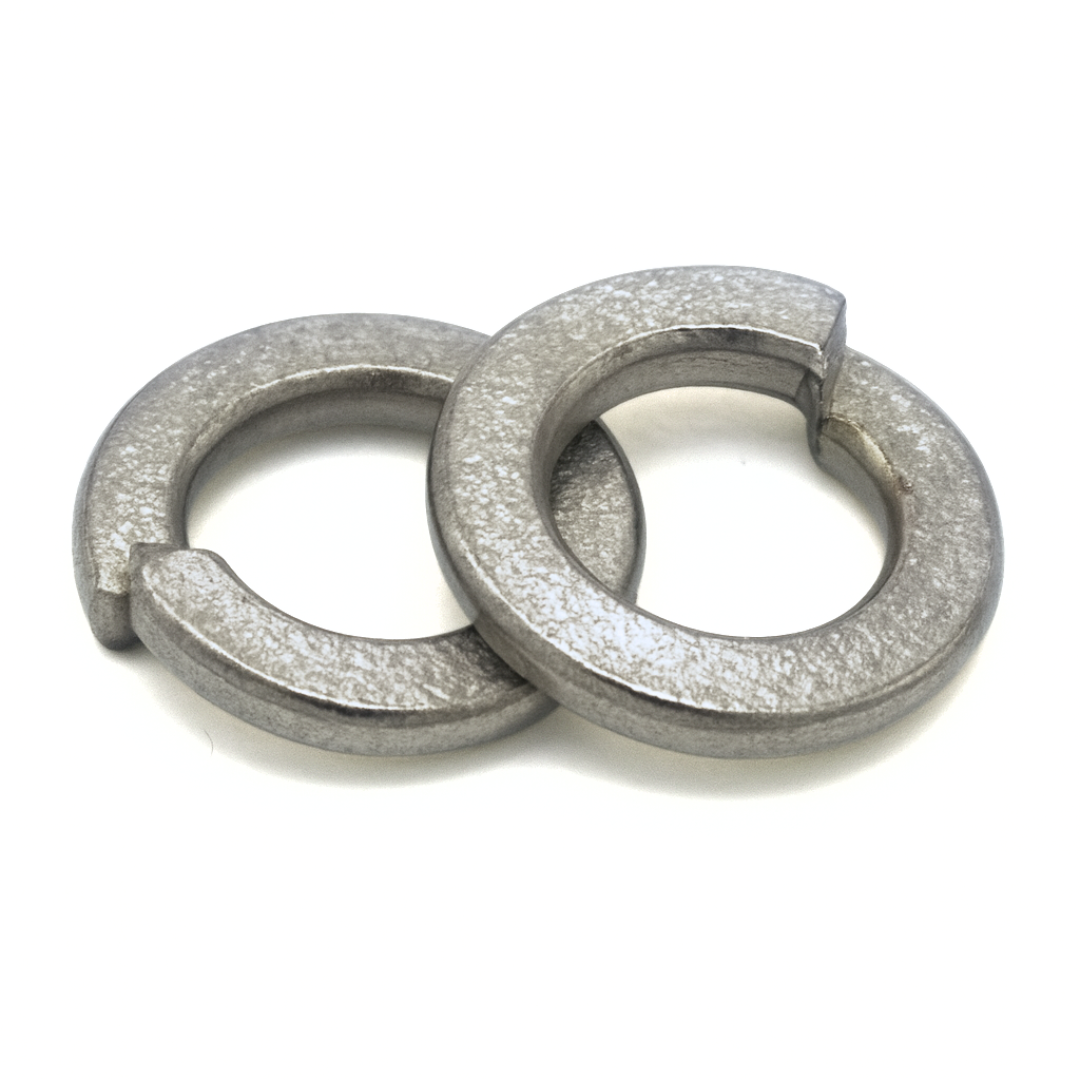

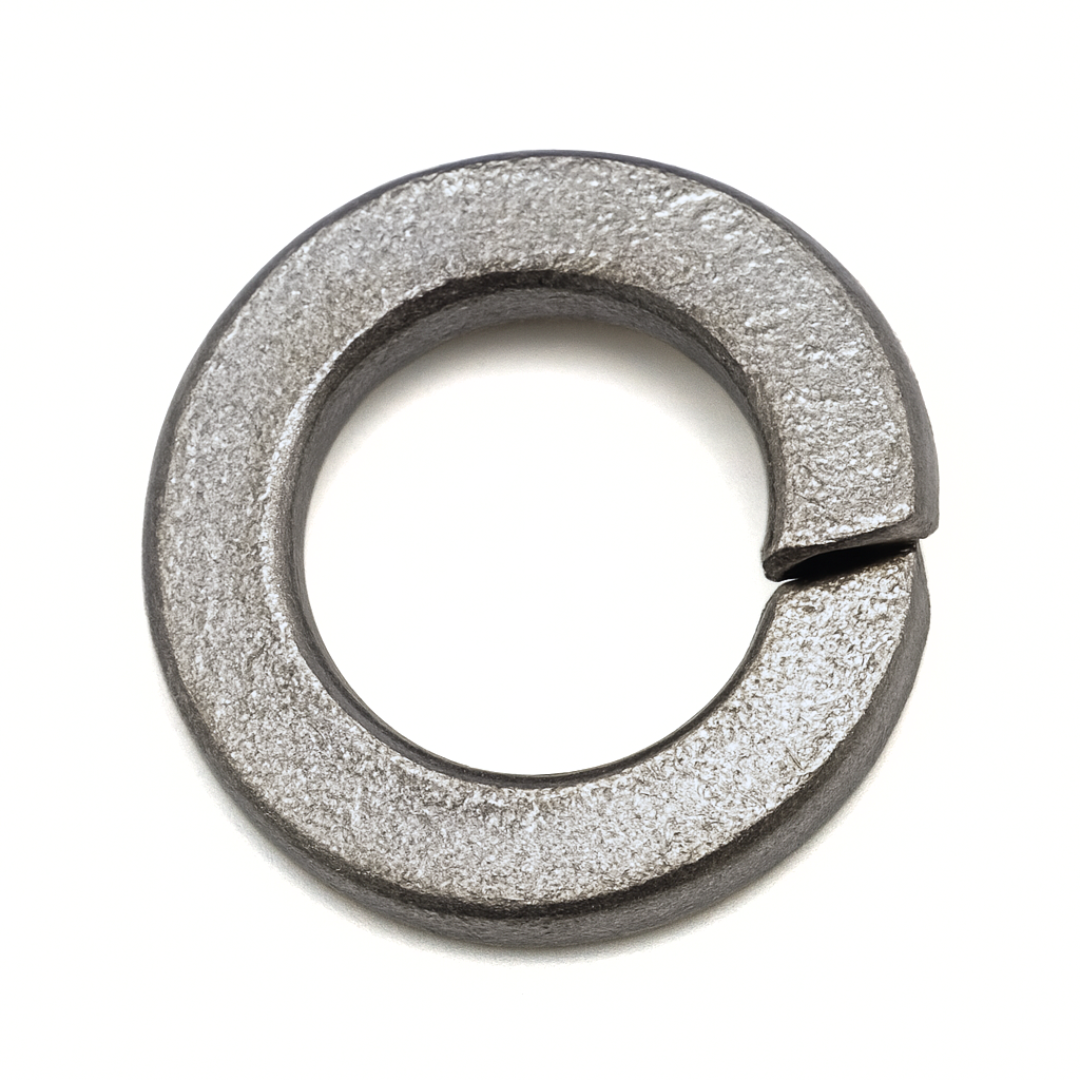

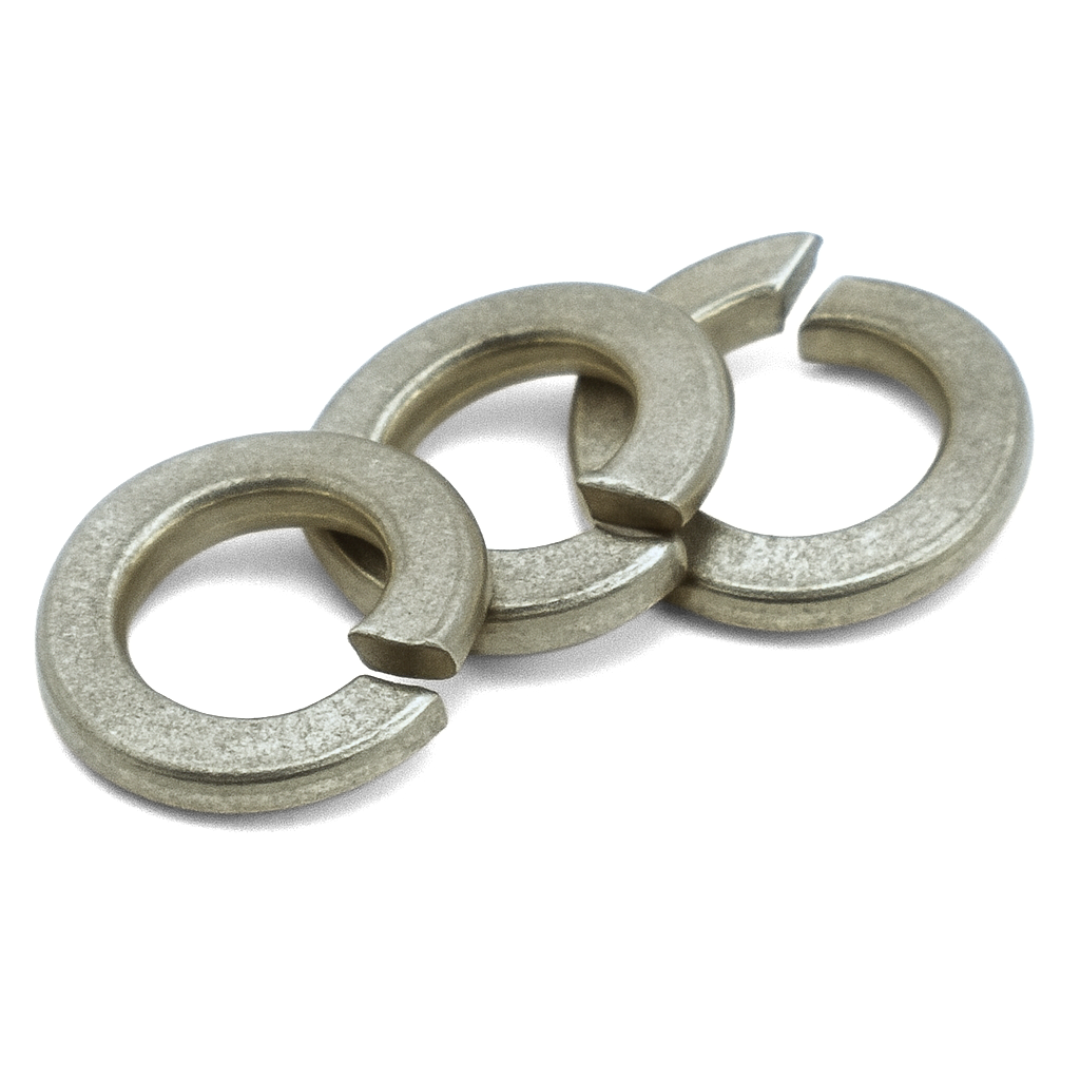

Split Ring Lock Washers Metric A4 Stainless Steel M3 (3.1M ID x 6.2M OD x 0.8 Thick)

Medium Profile Split Ring Lock Washers - Metric Sizes

Split Ring Lock Washers, also referred to as Spring Lock Washers, are circular washers split at a certain point to create a helical shape.

Applies force between the head of a bolt or screw and the installation surface
Creates a resistance to rotation and prevents nuts, bolts and screws from vibrating loose
Durable and long lasting
Industry standard A4 Stainless steel

Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

Sizes	Inner Diameter	Outer Diameter	Thickness
M3	3.1M	6.2M	0.8M
M4	4.1M	7.6M	0.9M

Product number: MLWSSA4M3

Print this page

Specifications

Color (Duplicate): Silver
Color: Silver
Corrosion Resistant: Yes
Diameter: M3
Grade: A4
Material: Stainless Steel
Outside Diameter (OD): 6.2MM
Part Number: 3661124162424
Product Type: Lock Washers
System of Measurement: Metric
Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances

Select Size/SKU & Quantity

12 Available Sizes

SIZE/SKU	Review Volume Pricing*	Enter Any Qty
M2 MLWSSA4M2	1 $0.05 ($0.05/ea) 100 $4.00 ($0.04/ea) 1000 $30.00 ($0.03/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M2 (2M ID x 4.4M OD x 0.5 Thick) $0.00
M2.5 MLWSSA4M2.5	1 $0.05 ($0.05/ea) 100 $4.00 ($0.04/ea) 1000 $30.00 ($0.03/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M2.5 (2.5M ID x 5.1M OD x 0.6 Thick) $0.00
M3 MLWSSA4M3	1 $0.05 ($0.05/ea) 100 $4.00 ($0.04/ea) 1000 $30.00 ($0.03/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M3 (3.1M ID x 6.2M OD x 0.8 Thick) $0.00
M4 MLWSSA4M4	1 $0.05 ($0.05/ea) 100 $4.00 ($0.04/ea) 1000 $30.00 ($0.03/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M4 (4.1M ID x 7.6M OD x 0.9 Thick) $0.00
M5 MLWSSA4M5	1 $0.05 ($0.05/ea) 100 $4.00 ($0.04/ea) 1000 $30.00 ($0.03/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M5 (5M ID x 9.2M OD x 1.2M Thick) $0.00
M6 MLWSSA4M6	1 $0.06 ($0.06/ea) 100 $5.00 ($0.05/ea) 1000 $40.00 ($0.04/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M6 (6M ID x 11.8M OD x 1.6M Thick) $0.00
M8 MLWSSA4M8	1 $0.08 ($0.08/ea) 100 $7.00 ($0.07/ea) 1000 $60.00 ($0.06/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M8 (8M ID x 14.8M OD x 2.0M Thick) $0.00
M10 MLWSSA4MM10	1 $0.25 ($0.25/ea) 100 $23.00 ($0.23/ea) 1000 $200.00 ($0.20/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M10 (10M ID x 18.1M OD x 2.15M Thick) $0.00
M12 MLWSSA4MM12	1 $0.25 ($0.25/ea) 100 $23.00 ($0.23/ea) 1000 $200.00 ($0.20/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M12 (12M ID x 21.1M OD x 2.5M Thick) $0.00
M14 MLWSSA4MM14	1 $0.40 ($0.40/ea) 100 $35.00 ($0.35/ea) 1000 $300.00 ($0.30/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M14 (14M ID x 24.1M OD x 3M Thick) $0.00
M16 MLWSSA4MM16	1 $0.50 ($0.50/ea) 100 $45.00 ($0.45/ea) 1000 $400.00 ($0.40/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M16 (16M ID x 27.4M OD x 3.5M Thick) $0.00
M20 MLWSSA4MM20	1 $0.75 ($0.75/ea) 100 $70.00 ($0.70/ea) 1000 $650.00 ($0.65/ea)	Quantity for Split Ring Lock Washers Metric A4 Stainless Steel M20 (20M ID x 33.6M OD x 4M Thick) $0.00

*Volume pricing available on select products. Products without quantity breaks are priced per unit.

Page Total: $0.00
