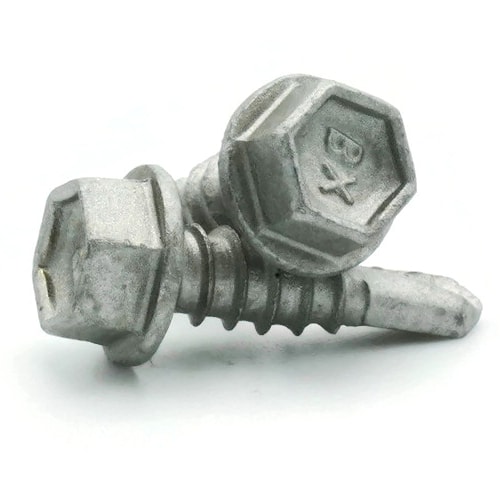

Sheet Metal Screws, ITW Buildex, Hex Washer Head, SD TEK 3, Climaseal Coated Steel, #14" x 1"
Climaseal Coated for Maximum Durability
| Quantity | Unit price |
|---|---|
| To 99 |
$0.20*
|
| To 999 |
$0.16*
|
| From 1000 |
$0.15*
|
- Across Flats (Width): 3/8" (Max 0.375 - Min 0.368)
- Brand: ITW Buildex
- Color: Gray
- Diameter: #14
- Drive Style: External Hex
- Elongation: 30%
- Head Type: Hex Washer Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: Climaseal
- Head Size: 3/8"
- Head Style: Hex Washer
- Length: 1"
- Material: Carbon Steel
- Point Type: TEK-3
- Product Type: Self Drilling Screws
- Standards Met: ASTM B117, DIN50018, 2.0L
- System of Measurement: Inch
- TEK Self Drilling Point: TEK 3
- Thread Diameter Major: 1/4 (#14) 0.246"
- Thread Diameter Minor: 1/4 (#14) 0.192"
- Thread Direction: Right Hand
- Thread Pitch: 14 Per Inch
- Thread Size: #14-14
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Wrench Size: 3/8"
- 1/4"-14
- ITW Buildex
- Hex Washer Head Self Drilling Screws
- Durable Climaseal coating designed for excellent resistance from corrosion, abrasion, torque, humidity, solvents, impacts and UV rays
- Self Drilling TEK point with non-walking, cutting edges
- Integrated Drill point and Tapping threads for a simple smooth installation and a quick transition from drilling to tapping
- Engages material faster, drills with less effort, safer installation
| Size | ITW Buildex Part Number | Size | ITW Buildex Part Number |
| 1/4"-14 x 3/4" | 1147000 | 1/4"-14 x 2" | 1155000 |
| 1/4"-14 x 1" | 1149000 | 1/4"-14 x 2-1/2" | 1554000 |
| 1/4"-14 x 1-1/4" | 1150000 | 1/4"-14 x 3" | 1157000 |
| 1/4"-14 x 1-1/2" | 1152000 | 1/4"-14 x 4" | 1304000 |
Product number:
8206-008-012
