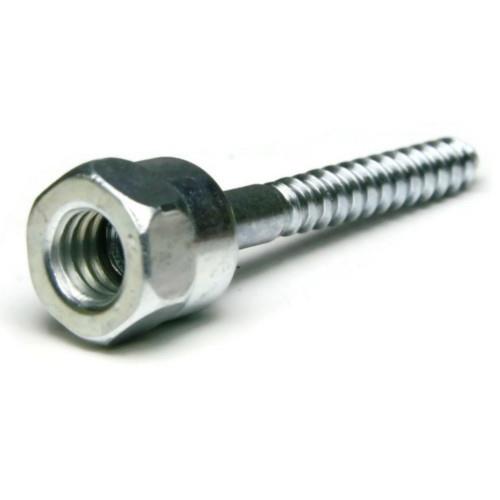

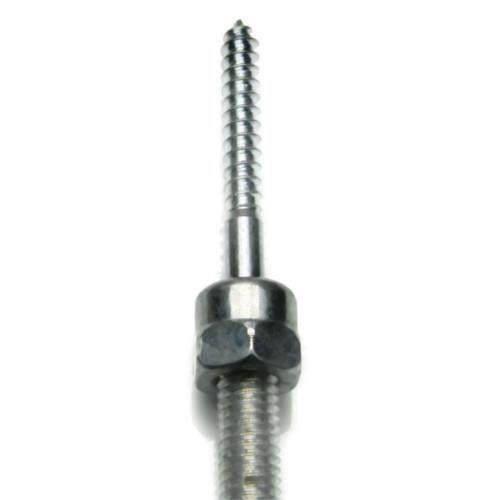

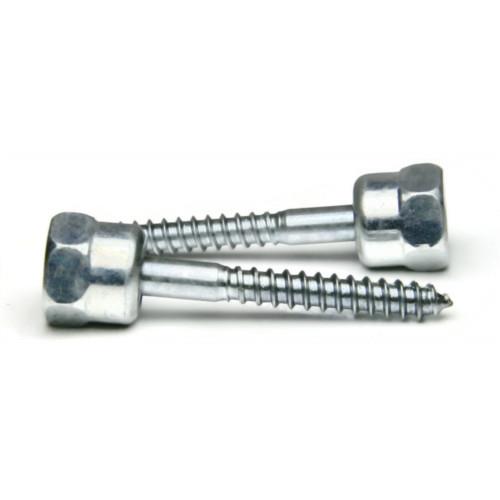

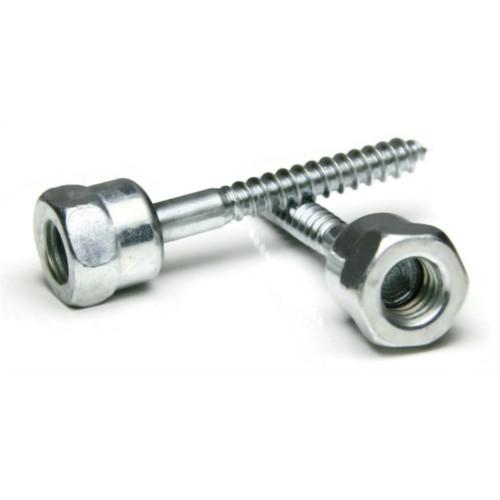

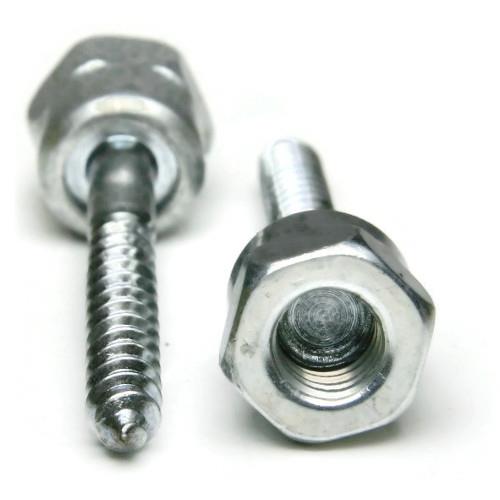

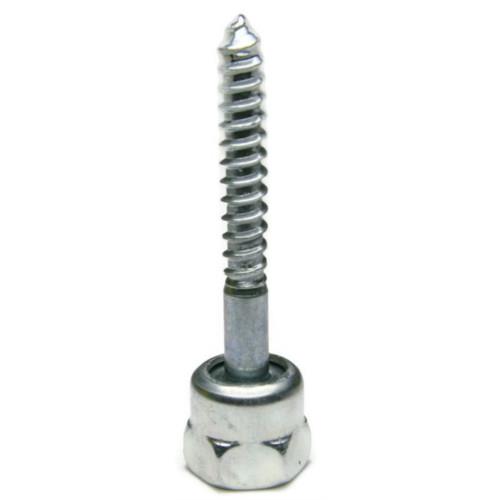

Sammy Screws for Wood - Vertical
For Vertical Applications - Made in the USA
Vertical Sammys anchors for Wood
- Install vertically into the bottom of wood structure
- Used to hang threaded rod to support industrial equipment and other structural assemblies
- Do not require pre-drilling before installation but may be required by joist or truss wood manufacturers
- If pre-drilling is required pre-drill the hole 1/8" smaller than the root diameter of the fastener
NOTES:
- Do Not Install with a drill set to impact mode
- We recommend using Sammys Nut Drivers to install Sammys rod hangers
- Sammys warranty will only apply if the Sammys nut driver is used for installations
- For warranty information, visit the ITW Buildex website on Sammy Anchors
- Please consult the joist or truss manufacturer for the recommended installation point
Product Specifications
Anchor Diameter
1/4"
Brand
ITW Buildex
Color
Silver
Corrosion Resistant
Yes
Drill (Hole) Size
1/8"
Drive Style
External Hex
Grade
18-8
Head Style
Hex
Intended Work Material
Wood
Length Under Anchor
2"
Material
Stainless Steel
Minimum Wood Thickness
1-1/2"
Mount Style
Vertical
Product Type
Sammy Rod Hanger Anchors
Pullout
1760 lbs
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
USA Made
Yes
