Plastic Hollow Wall Toggle Anchors, Short (3/8" Thick Wall)
Expansion Anchors Commonly Used in Wall Board & Cinder Block
- Can be used on drywall, sheet rock, gypsum board or cinder block
- Single piece, plastic design
- Used with a sheet metal screw to anchor behind wallboard
- FF-S-325 Group V, Type 2, Class 4
- Used to attach lightweight fixtures to hollow walls including curtain rods, junction boxes, towel bars and soap dishes.

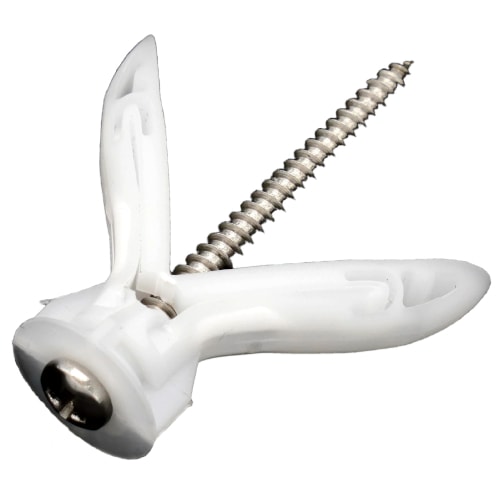

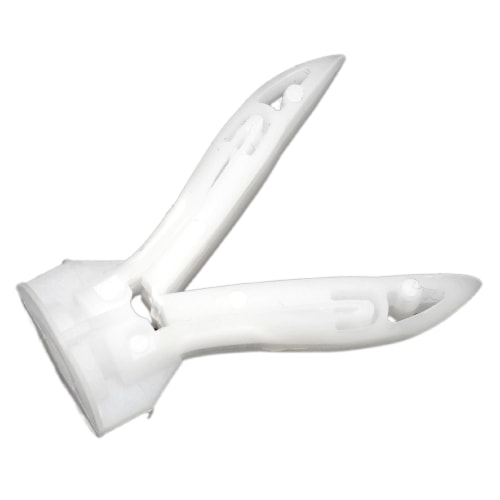

A one-piece, plastic anchor with a cylindrical body and two legs. The hole through the center of the body has ribs on the outside to hold the anchor in place during installation.

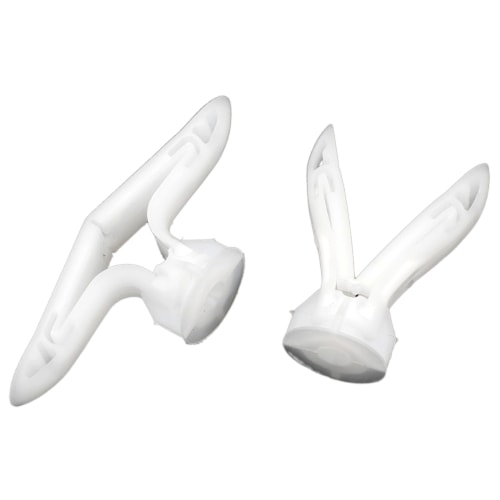

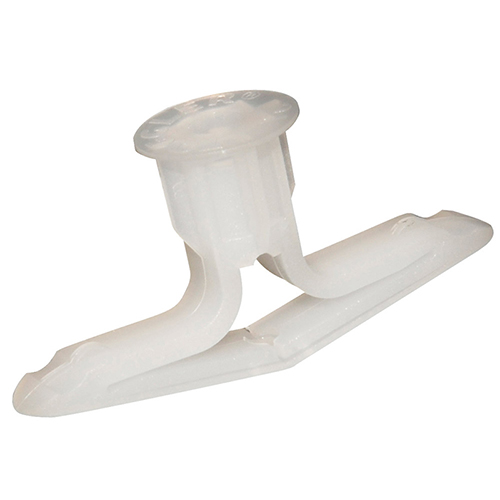

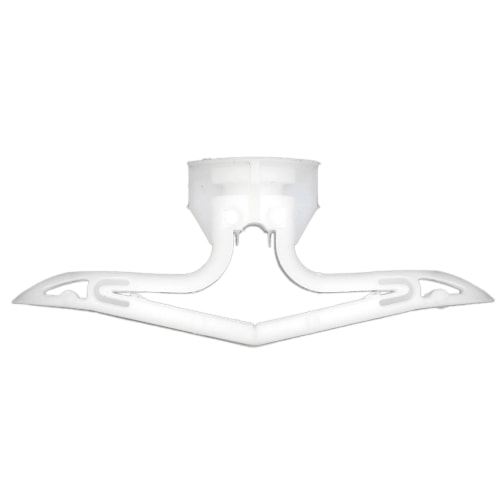

When a tapping screw is driven into the toggle, the legs collapse which forms a tongue. As the screw is driven through the body, it pulls in and expands the legs. Plastic toggles are intended for lightweight duty in hollow walls (wallboard or plaster), ie. drapery rods, junction boxes, soap dishes, towel bars, etc. The anchor remains in place even after the screw is removed.
| Size: | Wall Thickness: | Drill Diameter: | Screw Diameter Range: | Minimum Screw Length: | Flange Diameter: | Minimum Embedment: | Wallboard Tensile: | Wallboard Shear: | Cinder Block Tensile: | Cinder Block Shear: |
| Extra Short | 1/8" | 5/16" | #6 - #12 | 1" | 29/64" | 5/8" | 120 lbs | 100 lbs | N/A | N/A |
| Short | 3/8" | 5/16" | #6 - #12 | 1-1/4" | 1/2" | 1-1/8" | 135 lbs | 165 lbs | 240 lbs | 220 lbs |
| Medium | 1/2" | 5/16" | #6 - #12 | 1-1/4" | 1/2" | 1-1/4" | 150 lbs | 220 lbs | 280 lbs | 230 lbs |
| Long | 5/8" | 5/16" | #6 - #12 | 1-1/2" | 1/2" | 1-3/8" | 170 lbs | 250 lbs | 350 lbs | 230 lbs |
| X-Long | 3/4" | 5/16" | #6 - #12 | 1-3/4" | 1/2" | 1-1/2" | 180 lbs | 250 lbs | 400 lbs | 240 lbs |
| XX-Long | 1" | 5/16" | #6 - #12 | 2" | 1/2" | 1-3/4" | 220 lbs | 250 lbs | 450 lbs | 250 lbs |
Product number:
5804-010-012
