Zoom Lens for Adjustable Beam Width & Tilt Mechanism to Adjust Beam Postion

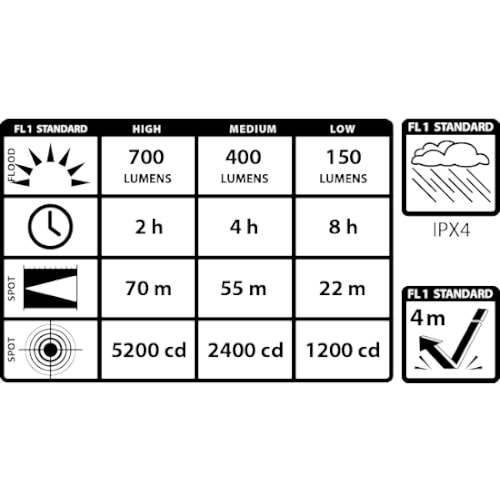

Features 3 Brightness Settings:
High: 700 Lumens
Medium: 400 Lumens
Low: 150 Lumens
Rechargeable with Included USB Cable
Water Resistant with sliding cover for USB Port & waterproof connector to battery pack

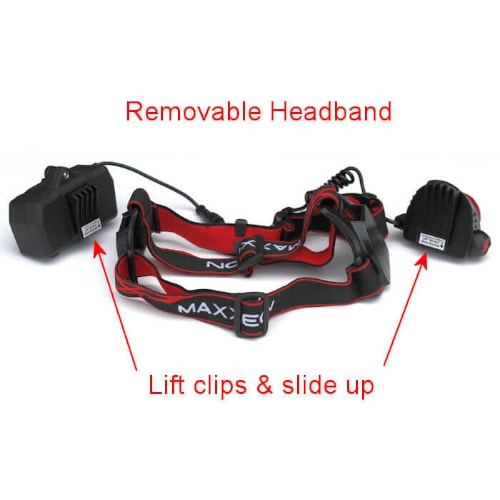

Includes Extension Cord for Relocating Battery Pack & Hard Hat Clips for attaching the headlamp to your hard hat
Runtime: 2 Hours for High Setting, 4 Hours for Medium Setting, & 8 Hours for Low Setting
Maxxeon Part Number: MXN00630

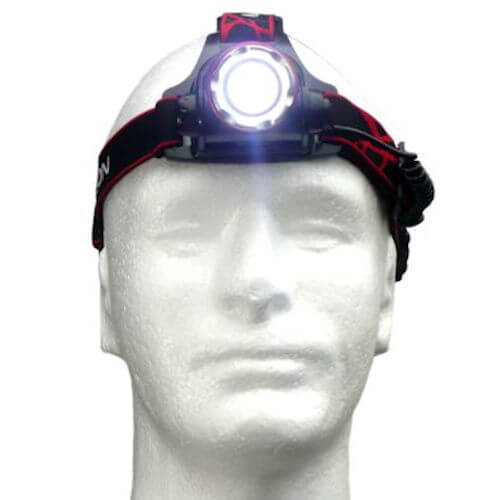

The WorkStar® 630 Technician's Rechargeable Headlamp is a professional headlamp that produces 700/400/150 lumens and runs for 2/4/8 hours respectively. The front mounted On/Off switch cycles through the three brightness settings for easy operation. With its 6x zoom lens and 90 degree tilt adjustment, the Technician's Rechargeable Headlamp can get you the right beam size and strength for the job. This headlamp also features a water resistant connection between the battery pack and light module and hot swapping functionality so you can swap battery packs with no time lost.

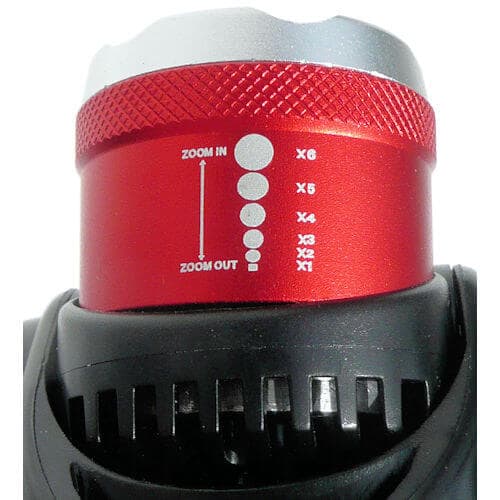

Glass lens slides back and forth allowing you to focus the beam on your work area. The zoom adjusts from huge floodlight beam with no rings, shadows, or hot spots to an intense narrow beam. The beam diameter to distance ratio ranges from 1:1 to 1:6, meaning at 2 ft from an object, the minimum zoom beam is about 2 ft wide and the maximum zoom beam is about 4 in wide. In other words, it has 6X zoom at maximum, relative to minimum.
Head Pivot
Light head aims forward and securely pivots down 90 degrees through 4 indented positions

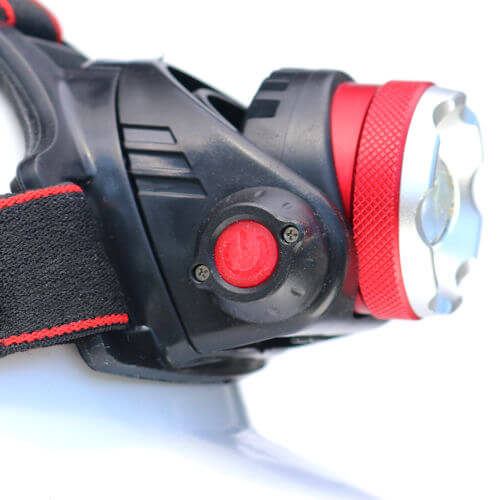

Switch
Front mounted push button cycles through Low-Medium-High-Off
Battery Included
Two 2800 mAh Li-ion 18650 rechargeable batteries with extra safety features. The battery pack is secured with a thumbscrew, so the batteries are accessible for upgrade or replacement.
Run Time
High: 2 hours, Medium: 4 hours, Low: 8 hours
Charge Time
6 hours
Charge Indicator
4 green LEDs monitor the battery level during charging and during use
Charging Input
Micro USB

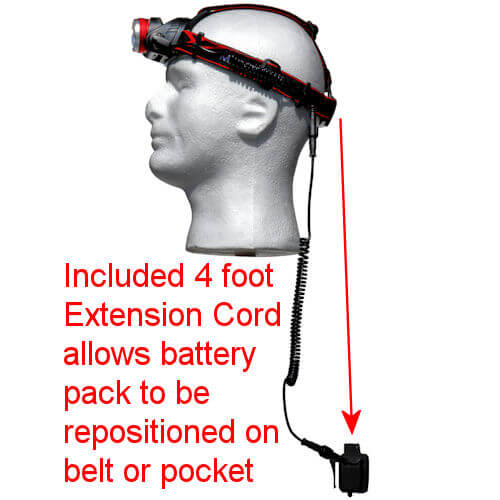

Extension Cord
Includes 4 foot (1.2 m) extension cord, so battery pack can be relocated to belt or pocket

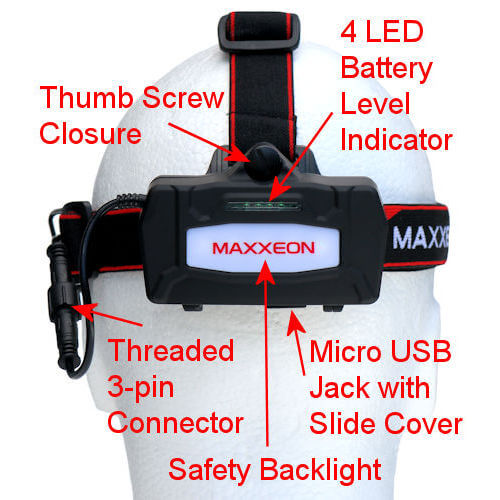

Battery Pack

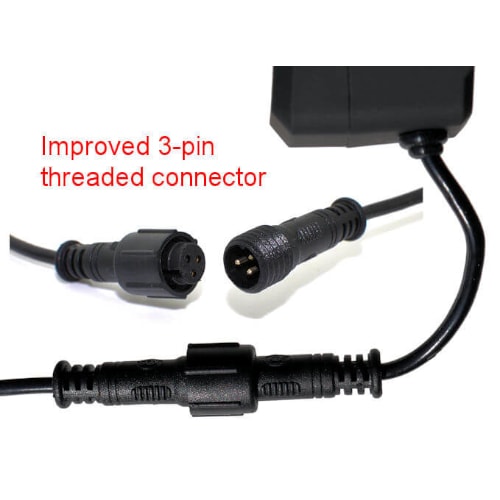

Includes a waterproof connector so the pack can be relocated to belt or pocket and a dead pack can be swapped out for charged pack. Includes a 4 LED battery level indicator and a micro USB charging jack with a water resistant sliding rubber cover. Dimensions: 3.25 X 2.25 X 1.25 inches (8.3 x 5.7 x 3.2 cm) Extra battery packs can purchased separately, Order MXN00602.
Power Supply/Charger
100-240 VAC, 50/60 Hz UL-Approved North American 5 volt power supply with standard "Type A", two prong plug. Note: the power supply output is standard USB jack.

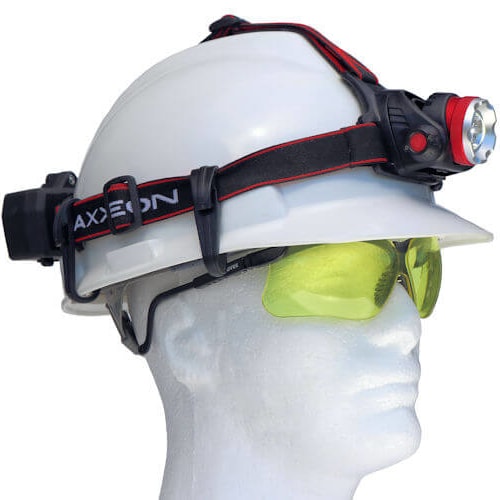

Hard Hat Clips
Includes 4 hard hat clips
Head Length
2 inches (5 cm)
Head Diameter
1.5 inches (3.5 cm)
Weight
11 ounces (300 grams)
Temperature
15° to 105°F (-10° to +40°C)
Ingress Protection
IPX4 = water resistant, i.e., protection from rain, sprays and splashing of water in all directions. But not waterproof, do not immerse in liquids.
Drop Test
6 ft (2 m)
Package Includes
WorkStar® 630, two 2800mAh Li-ion 18650 rechargeable batteries, 4 ft extension cable, 4 hard hat clips, UL-approved 100-240 VAC, 50/60 Hz power supply with USB port and a USB cable
