MAXXEON WorkStar® 5400 LUMENATOR®Sr
Industrial Grade Work Light with Magnetic Base | MXN05401
SKU: 1060-816
- WorkStar® 5400 LUMENATOR®Sr
- Rechargeable, industrial grade work light
- Multiple Power Settings
- High: 4300 lumens
- Medium: 2300 lumens
- Low: 1100 lumens
- USB port to charge cellphones, tablets or penlights
- Aluminum body with rubber bumper

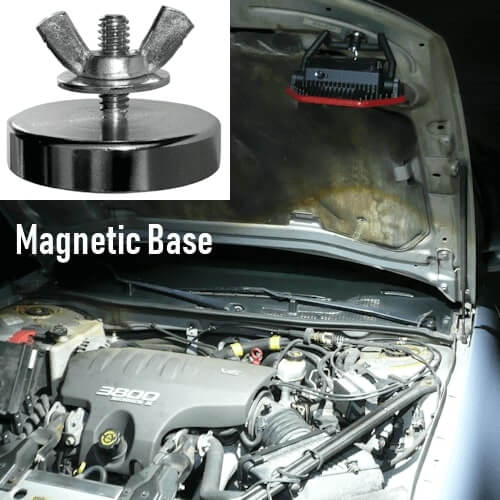

- Powerful Neodymium magnetic base (included) attaches to the nylon handle
- COB LEDs plus the unique "fresnel-like" lens creates an ultra wide floodlight beam without rings, shadows, or hot spots
- Nylon handle tilts 180 degrees and acts like a support leg or mounting point
The Maxxeon WorkStar® 5400 LUMENATOR®Sr task light is engineered for practicality and performance. The hexagonal shape works with the nylon stand for easy and stable positioning, and also has a mounting hole for the included magnetic base or a tripod. The Chips On Board (COB) LED system allows for three powerful light settings, while still maintaining a workable battery life. The diameter to distance ratio is about 3:1, meaning for example, the beam diameter is about 9 ft wide when the light is 3 ft from an object. This industrial grade work light can light up a whole room, an engine bay, or a campsite, you name it. It is flexible, versatile and tough.

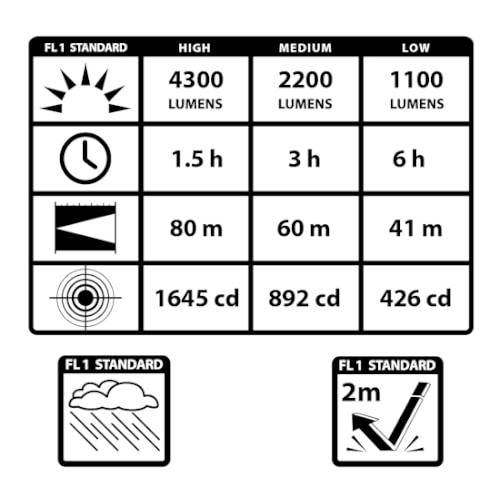

LED Brightness (Luminous Flux) | High: 4300 lumens, Medium: 2300 lumens, Low: 1100 lumens |
Power, Color | 50 W COB (chips on board), CRI > 80, Daylight White, 5700K |
Heat Sink | LED is mounted in a sealed aluminum heat sink assembly, which protects the LED from dirt and fluids |
Power/Brightness Switch | Sealed power switch controls the 3 brightness levels: LOW-MEDIUM-HIGH-OFF |

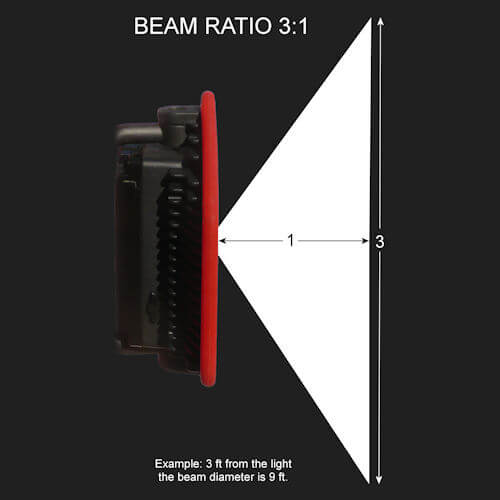

Beam Ratio | The COB LEDs plus the unique glass lens creates an ultra wide floodlight beam - no rings, no shadows, no hot spots. The beam diameter to distance ratio is about 3:1, meaning for example, the beam diameter is about 6 ft wide when the light is 2 ft from an object. |
Batteries Included | Li-ion 11.1 volt, 5200 mAh battery pack. Pack is user replaceable |
Run Time | High: 1.5 hours, Medium: 3 hours Low: 6 hours |
Recharge Time | 3.5 hours |
Regulator Circuit | High efficiency constant current circuit to maximize brightness and runtime |

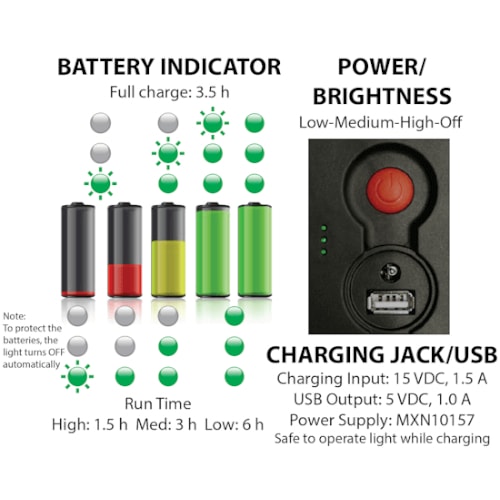

Battery Life and Charge Indicator | Three green LEDs are arranged in a bar graph format to indicate both the battery life and the charge level |
Wall Power Supply/Charger | Input: 100-220 VAC, 50/60 Hz UL-Approved North American power supply with standard "Type A", two prong plug. Output: 15 VDC, 1.5 A. Use only the supplied the MXN10157 Power Supply. The LUMENATOR®Sr is not compatible with the original LUMENATOR® MXN10080 Li-ion Charger. |
USB Output | 5 VDC, 1 A |
Operate While Charging | Safe to operate the light while charging or plugged in |
Body | Aluminum with rubber edge protector |

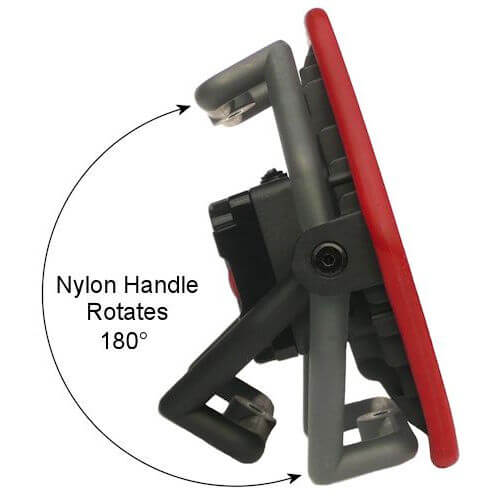

Handle | The sturdy nylon handle rotates 180° to adjust the light angle and it is the mounting point for optional tripod stand and included magnetic base |
Dimsensions | 10.5 x 9.5 x 2.25 inches (27 x 24 x 6 cm) |
Weight | 3 lb (1.4 kg) |
Temperature | 15º to 105ºF (-10º to +40ºC) |
Ingress Protection | IP65 = dust tight + waterproof to water jets and rain |
Impact Test | IK07 = 2 J |
Drop Test | 6 ft (2 m) |
Included | WorkStar® 5400, a user replaceable 11.1 VDC, 5.2 Ah Li-ion battery pack and a 100-240 VAC, 50/60 Hz, 15 VDC, 1.5 A UL-approved power supply, Magnetic Base |
