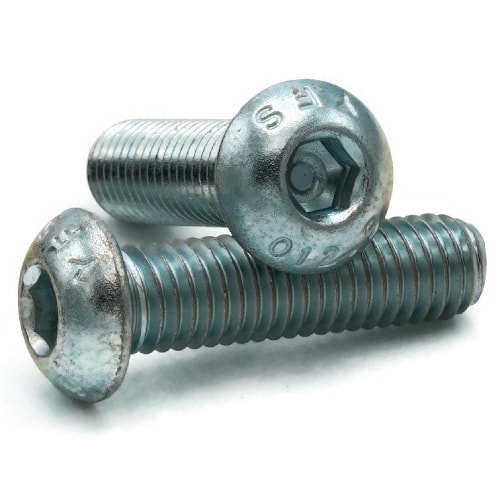

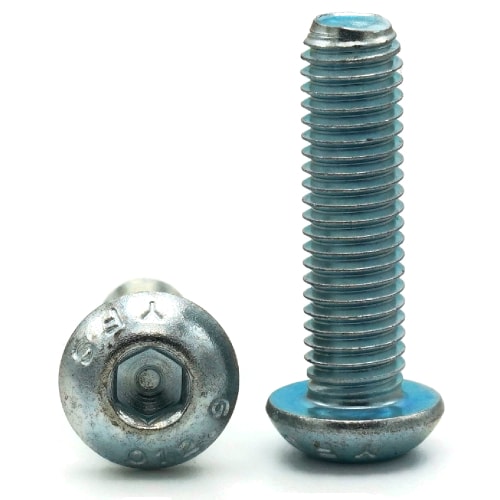

M6-1.00 Zinc Plated Metric Button Head Socket Cap Screws
Screw Diameter x Thread Pitch: M6-1.00
- Driven by metric allen wrenches
- Zinc plated for added corrosion resistance
- Button Head for a nice presentable finish
M6-1.00 Button head socket cap screws are bolts or machine screws with an Internal Hex or Allen drive style. The term socket head cap screw typically refers to a type of threaded fastener whose head diameter is nominally 1.5 times or more that of the screw shank (major) diameter.
Sizes Listed As:
Diameter - Thread Pitch x Length from Underside of Head
FT = Full Thread
PT = Partial Thread
Visit this page to see our Metric Allen Wrenches and Sets
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
M6
Drive Style
Internal Hex (Allen)
Finish
Zinc Plating
FT = Full Thread
Yes
Grade
Class 12.9
Head Diameter
Max 10.50mm - Min 10.07mm
Head Height Max
3.3mm
Head Style
Button
Hex Drive
4mm
Material
Steel
Overall Head Height
Max 3.30mm - Min 3.00mm
Product Type
Metric Socket Cap Screws
System of Measurement (Unit)
Metric
Thread Direction
Right Hand
Thread Pitch (Count)
1.00 mm
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
