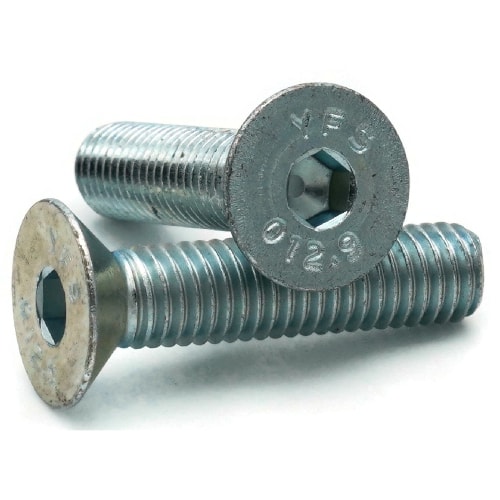

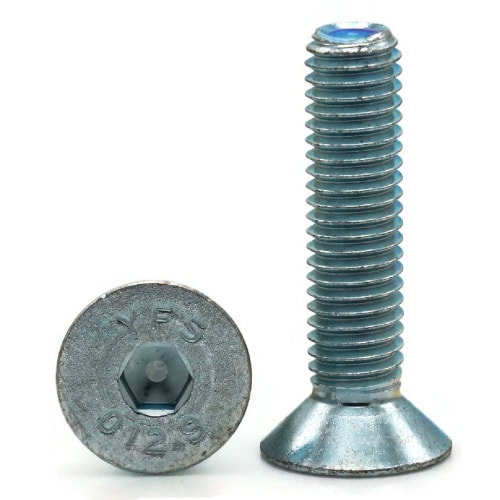

Metric Socket Cap Screws, Flat Head, Zinc Plated Steel, Class 12.9, M5-0.80 x 8M FT
Screw Diameter - Thread Pitch: M5-0.80 (ISO 4762/Din 912)
| Quantity | Unit price |
|---|---|
| To 99 |
$0.29*
|
| To 999 |
$0.17*
|
| From 1000 |
$0.15*
|
- Class: 12.9
- Color: Silver
- Diameter: M5
- Drive Style: Internal Hex (Allen)
- Head Type: Flat Head
- Thread Direction: Right Hand
- Thread Type: Coarse
- Finish: CR+3 Case Hardened Zinc Plated
- Fit: 6g
- Grade: Class 12.9
- Head Diameter: Max 11.20mm - Min 9.75mm
- Head Style: Flat
- Hex Drive: 3mm
- Length: 8M FT
- Material: Steel
- Overall Head Height: Ref. 3.1mm
- Product Type: Socket Cap Screw
- System of Measurement: Metric
- Thread Direction: Right Hand
- Thread Pitch: 0.80 mm
- Thread Size: M5-0.80
- Thread Standard: Metric
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Driven by metric allen wrenches
- Zinc plated for added corrosion resistance
- CR+3 Zinc
- ISO 4762/Din 912
- Flat head to create a flush finish when installed
M5-0.80 Flat Head Socket Cap Screws are bolts or machine screws with an Internal Hex or Allen drive style. The term socket head cap screw typically refers to a type of threaded fastener whose head diameter is nominally 1.5 times or more that of the screw shank (major) diameter.
Sizes Listed As:
Diameter - Thread Pitch x Length from Underside of Head
FT = Full Thread
PT = Partial Thread
Visit this page to see our Metric Allen Wrenches and Sets
Product number:
5540-004-002
