Internal Tooth Lock Washers 316 Stainless Steel

316 Stainless Steel Internal Tooth Lock Washers

Serrated Lock Washers in Marine Grade 316 Stainless Steel


  • Used to add tension to a fastener assembly
  • Internal teeth bite into the assembly to add tension
  • Extra tension prevents unintentional fastener rotation do to vibration
  • Often chosen over external tooth lock washers for aesthetic reasons
  • Highly corrosion resistant, marine grade 316 stainless steel
  • Actual measurements may vary slightly +/- depending on production run

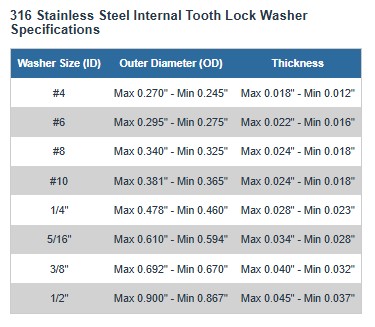

316 Stainless Steel Internal Tooth Lock Washer Specifications
Washer Size (ID) Outer Diameter (OD) Thickness
#4
Max 0.270" - Min 0.245" Max 0.018" - Min 0.012"
#6
Max 0.295" - Min 0.275" Max 0.022" - Min 0.016"
#8
Max 0.340" - Min 0.325" Max 0.024" - Min 0.018"
#10
Max 0.381" - Min 0.365" Max 0.024" - Min 0.018"
1/4"
Max 0.478" - Min 0.460" Max 0.028" - Min 0.023"
5/16" Max 0.610" - Min 0.594" Max 0.034" - Min 0.028"
3/8" Max 0.692" - Min 0.670" Max 0.040" - Min 0.032"
1/2" Max 0.900" - Min 0.867" Max 0.045" - Min 0.037"
Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Lock Washer Internal Tooth 316 Stainless Steel #4
SKU #111206-002
Lock Washer Internal Tooth 316 Stainless Steel #4
SKU #111206-002
1
$0.15 (0.15/ea)
100
$8.00 (0.08/ea)
1000
$60.00 (0.06/ea)
Subtotal: $0.00 /
Lock Washer Internal Tooth 316 Stainless Steel #6
SKU #111206-012
Lock Washer Internal Tooth 316 Stainless Steel #6
SKU #111206-012
1
$0.16 (0.16/ea)
100
$9.00 (0.09/ea)
1000
$80.00 (0.08/ea)
Subtotal: $0.00 /
Lock Washer Internal Tooth 316 Stainless Steel #8
SKU #111206-022
Lock Washer Internal Tooth 316 Stainless Steel #8
SKU #111206-022
1
$0.17 (0.17/ea)
100
$11.00 (0.11/ea)
1000
$90.00 (0.09/ea)
Subtotal: $0.00 /
Lock Washer Internal Tooth 316 Stainless Steel #10
SKU #111206-032
Lock Washer Internal Tooth 316 Stainless Steel #10
SKU #111206-032
1
$0.21 (0.21/ea)
100
$13.00 (0.13/ea)
1000
$100.00 (0.1/ea)
Subtotal: $0.00 /
Lock Washer Internal Tooth 316 Stainless Steel 5/16"
SKU #111206-052
Lock Washer Internal Tooth 316 Stainless Steel 5/16"
SKU #111206-052
1
$0.55 (0.55/ea)
100
$34.00 (0.34/ea)
1000
$270.00 (0.27/ea)
Subtotal: $0.00 /
Lock Washer Internal Tooth 316 Stainless Steel 3/8"
SKU #111206-062
Lock Washer Internal Tooth 316 Stainless Steel 3/8"
SKU #111206-062
1
$0.96 (0.96/ea)
100
$60.00 (0.6/ea)
1000
$500.00 (0.5/ea)
Subtotal: $0.00 /
Lock Washer Internal Tooth 316 Stainless Steel 1/2"
SKU #111206-072
Lock Washer Internal Tooth 316 Stainless Steel 1/2"
SKU #111206-072
1
$1.13 (1.13/ea)
100
$68.00 (0.68/ea)
1000
$550.00 (0.55/ea)
Subtotal: $0.00 /
Lock Washer Internal Tooth 316 Stainless Steel 1/4"
SKU #111206-042
Lock Washer Internal Tooth 316 Stainless Steel 1/4"
SKU #111206-042
1
$0.26 (0.26/ea)
100
$16.00 (0.16/ea)
1000
$130.00 (0.13/ea)
Subtotal: $0.00 /

Product Specifications
Color
Silver
Corrosion Resistant
Yes
Grade
316
Material
Stainless Steel
Product Type
Internal Tooth Lock Washer
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
