External Tooth Lock Washers 316 Stainless Steel

316 Stainless Steel External Tooth Lock Washers

Premium Stainless Steel Lock Washers for use with a Screw, Bolt, or Nut


  • Serrated washers to create tension between the washers "teeth" and installation surface
  • The added tension makes the fastener assembly resistant to rotation
  • Highly corrosion resistant 316 stainless steel
  • Actual measurements may vary slightly +/- depending on production run
  • Trade Names: Star Lock Washers

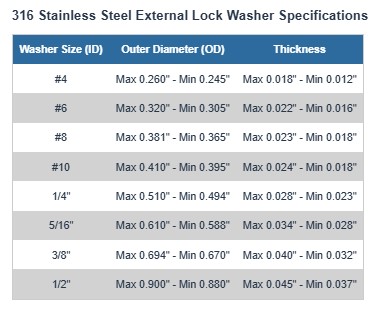

316 Stainless Steel External Lock Washer Specifications
Washer Size (ID) Outer Diameter (OD) Thickness
#4
Max 0.260" - Min 0.245" Max 0.018" - Min 0.012"
#6
Max 0.320" - Min 0.305" Max 0.022" - Min 0.016"
#8
Max 0.381" - Min 0.365" Max 0.023" - Min 0.018"
#10
Max 0.410" - Min 0.395" Max 0.024" - Min 0.018"
1/4"
Max 0.510" - Min 0.494" Max 0.028" - Min 0.023"
5/16" Max 0.610" - Min 0.588" Max 0.034" - Min 0.028"
3/8" Max 0.694" - Min 0.670" Max 0.040" - Min 0.032"
1/2" Max 0.900" - Min 0.880" Max 0.045" - Min 0.037"
Select Products Below
See Product Specifications
Size:
Qty
Size
Select Package Quantity
SubTotal
Loading ...



Product Specifications
Color
Silver
Corrosion Resistant
Yes
Grade
316
Material
Stainless Steel
Product Type
External Tooth (Star) Lock Washers
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
