1/8" x 3/16" Stainless Steel Painted Open End Blind POP Rivets
POP Rivet, or Blind Rivet, in Painted 304 Stainless Steel
- 1/8" or #4 (Rivet Sizing Chart)
- 3/16" with a Grip Range of 0.126" - 0.187"
- Domed head rivets are used when there is no access to the blind side of the two materials
- Most common type of rivet

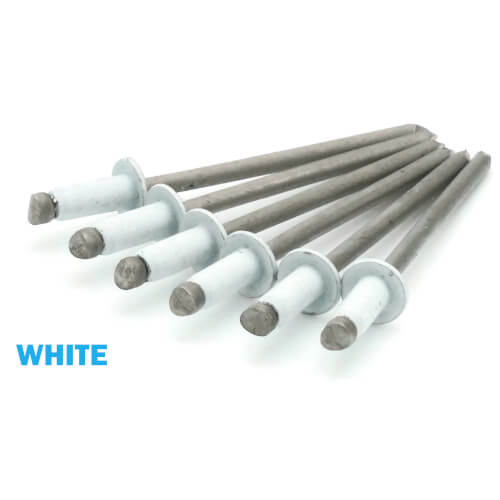

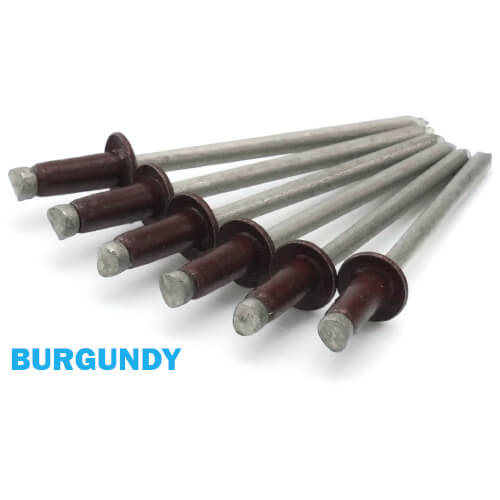

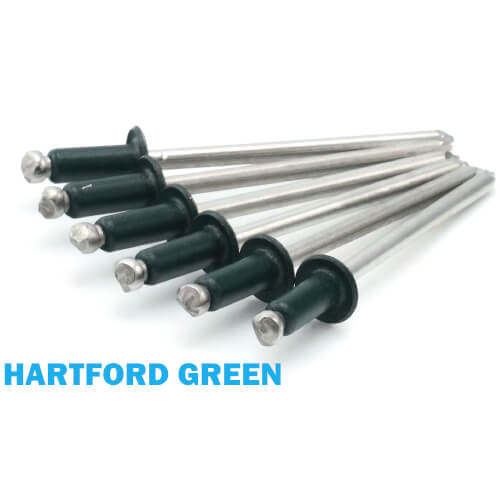

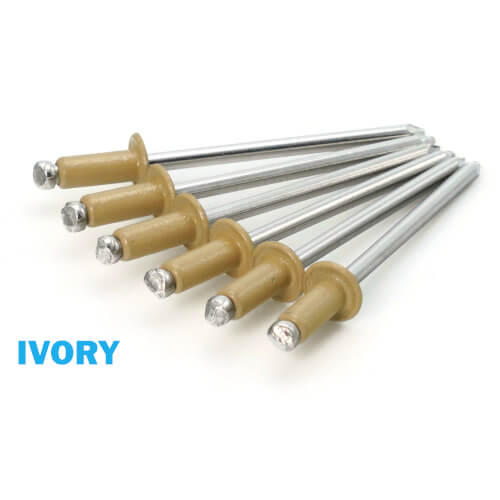

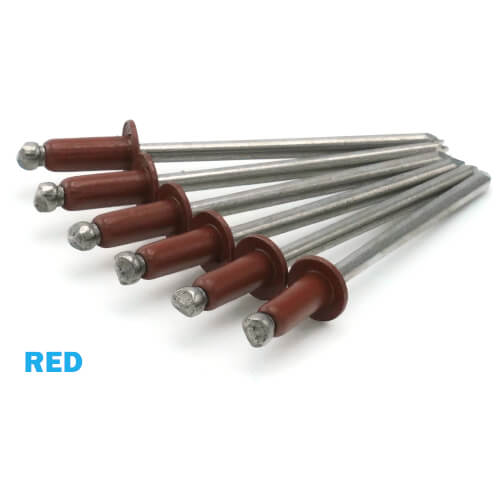

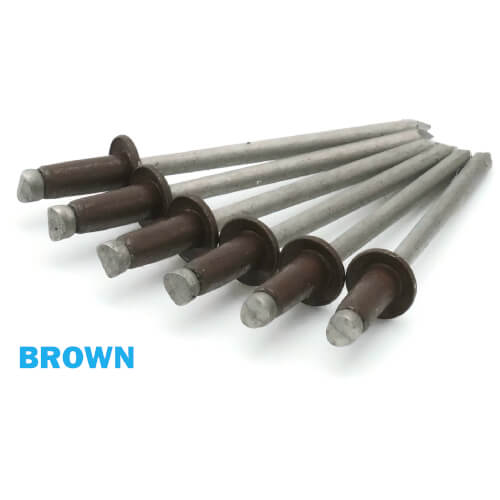

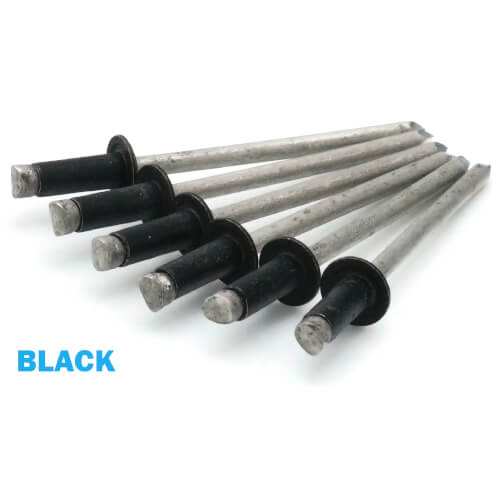

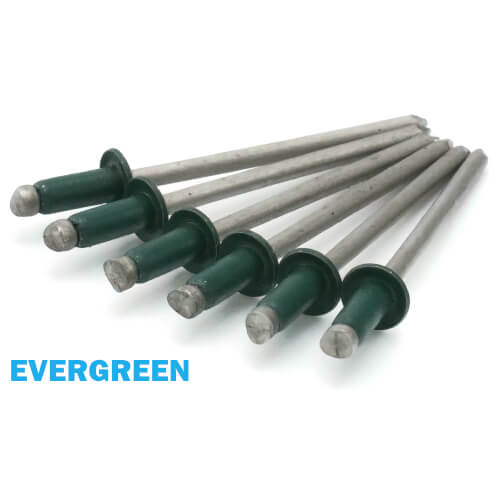

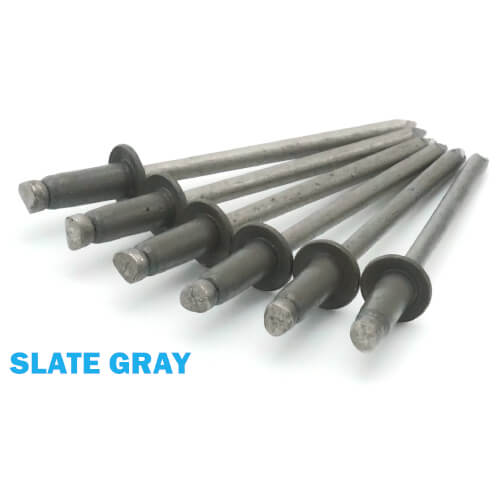

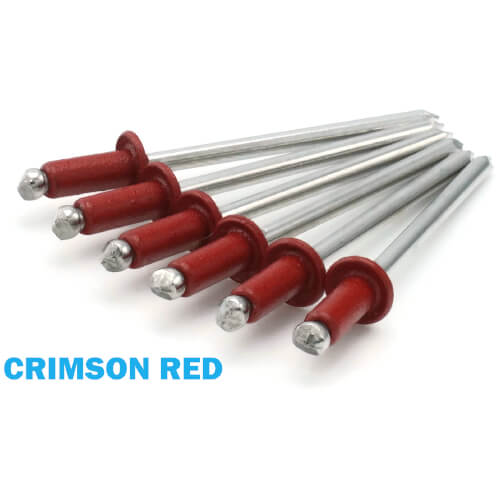

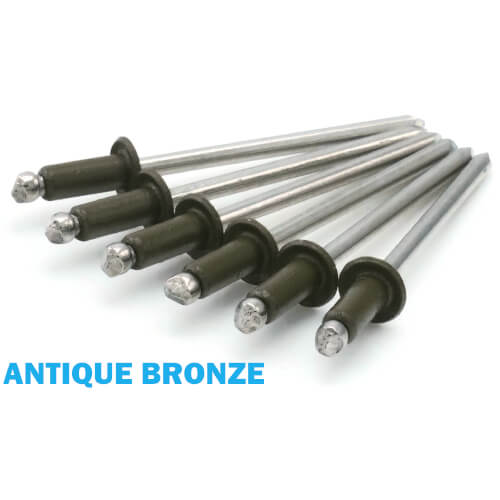

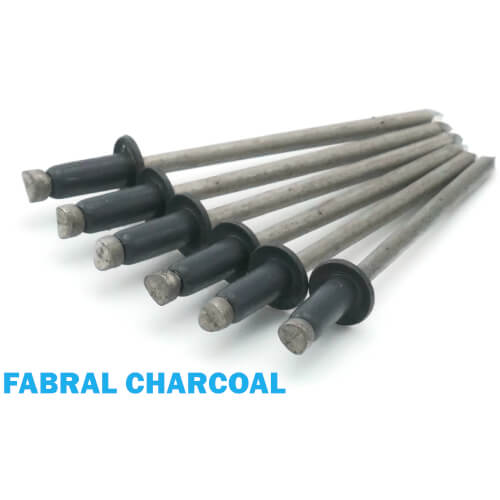

- The Hat is painted in one of a variety of colors
- Used to join two materials together quickly
- After mandrel breaks off domed head is left exposed
- Leaves behind a professional finished look
- 304 Stainless steel dome head rivets are suitable for corrosive environments
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Corrosion Resistant
Yes
Diameter
1/8"
Drill (Hole) Size
#30
Finish
Painted
Flange Diameter Nominal
0.250"
Grade
304
Head Height Max
0.040"
Head Style
Dome
Mandrel Diameter Nominal
0.076"
Material
Stainless Steel
Nominal Size
4
Other
Grip Range: 0.126 - 0.187
Pilot Hole
0.129 - 0.133
Product Type
POP Rivets (Blind Rivets) Open End
Rivet Diameter
(#4) 1/8" (.125)
Shear (lbs)
420
Sizing
4-3 | 1/8" x 3/16"
System of Measurement (Unit)
Inch
Tensile PSI
530
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
