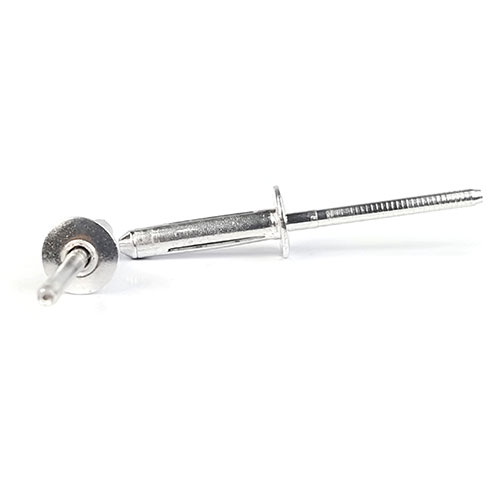

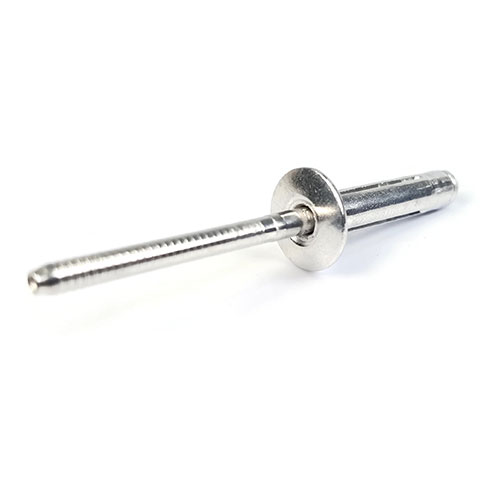

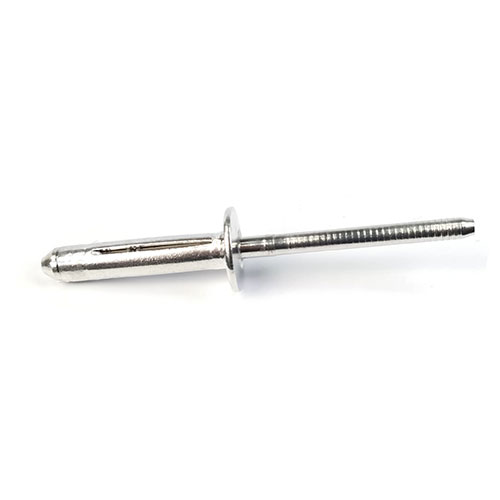

3/16" (#6) Low Profile Flat Head Tri Bulb Rivets - Aluminum

Aluminum Flat Head Tri-Fold Rivets

3/16" (#6) Blind Rivet Diameter


  • 3/16" or #6 Diameter
  • Trade Names: Tri Fold Rivets, Bulbing Rivets, Exploding Rivets, Tri Grip Rivets, Trailer Rivets, Expanding Rivets
  • Wildly popular in domestic appliances, plastic components, automotive, trailers, RV, kayaks and sporting goods.
  • Three anchor point grip adds resistance to pull though
  • Wider effective grip range - Excellent as a Multi-Grip Rivet
  • Caulk or sealant is recommended when installing to be truly watertight

Tri-Bulb Rivets expand in three directions as the mandrel is pulled through them, creating three anchor points on the blind end of the application. They have better retention than a standard pop rivet due to their increased surface area. These rivets also work better in thinner metals without causing damage to the materials. Aluminum Tri-Fold Rivets are used for their high strength to weight ratio, and corrosion resistance.

Low Profile Flat Head Tri-Fold Aluminum Rivets create a finished look similar to a standard pop rivet, and do not require any special tools for installation (other than a standard riveter).

Tri Bulb Rivet Spec Sheet

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
#6-4 (3/16" x 1/4" Grip) Low Profile Flat Head Tri Bulb Rivets with Sealing Washer - Aluminum
SKU #2066-002-002
#6-4 (3/16" x 1/4" Grip) Low Profile Flat Head Tri Bulb Rivets with Sealing Washer - Aluminum
SKU #2066-002-002
1
$0.86 (0.86/ea)
25
$19.25 (0.77/ea)
100
$73.00 (0.73/ea)
1000
$510.00 (0.51/ea)
Subtotal: $0.00 /
#6-6 (3/16" x 3/8" Grip) Low Profile Flat Head Tri Bulb Rivets with Sealing Washer - Aluminum
SKU #2066-002-012
#6-6 (3/16" x 3/8" Grip) Low Profile Flat Head Tri Bulb Rivets with Sealing Washer - Aluminum
SKU #2066-002-012
1
$0.88 (0.88/ea)
25
$19.25 (0.77/ea)
100
$77.00 (0.77/ea)
1000
$530.00 (0.53/ea)
Subtotal: $0.00 /
#6-8 (3/16" x 1/2" Grip) Low Profile Flat Head Tri Bulb Rivets with Sealing Washer - Aluminum
SKU #2066-002-022
#6-8 (3/16" x 1/2" Grip) Low Profile Flat Head Tri Bulb Rivets with Sealing Washer - Aluminum
SKU #2066-002-022
1
$0.89 (0.89/ea)
25
$19.50 (0.78/ea)
100
$77.00 (0.77/ea)
1000
$540.00 (0.54/ea)
Subtotal: $0.00 /

Product Specifications
Additional Sizing Info
Drill (Hole) Size
#4
Flange Diameter
0.430 - 0.455
Head Height
0.062
Head Style
Flat
Material
Aluminum
Product Type
Low Profile Flat Head Blind Tri Fold Rivet
Rivet Diameter
3/16" (#6, 0.187")
Shear (lbs)
400
System of Measurement (Unit)
Inch
Tensile PSI
450
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
