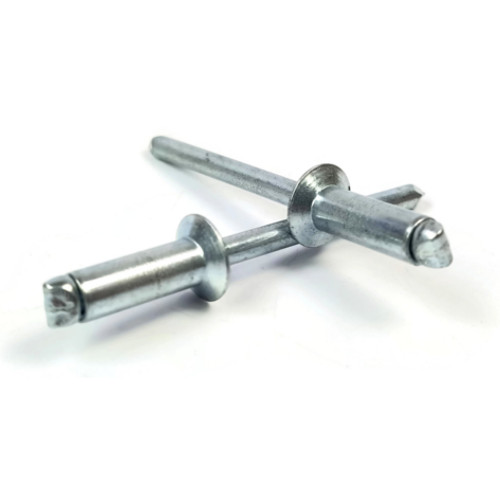

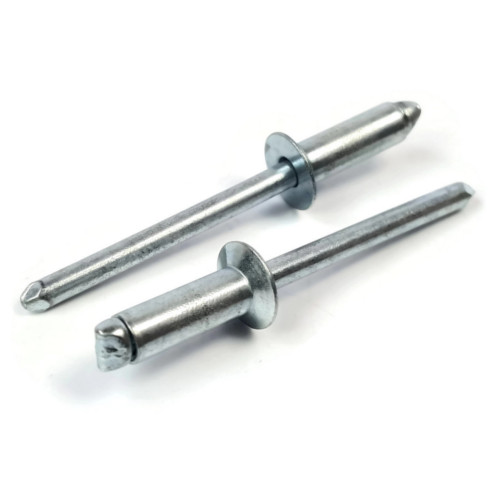

3/16" (#6 C) POP Rivet Countersunk 120 Degrees All Steel

3/16" SBS Steel Countersunk Open End Blind POP Rivets

POP Rivet, or Blind Rivet, in Steel

  • 3/16" or #6C (Rivet Sizing Chart)
  • Used in a countersunk hole to create a flat surface
  • Connect two materials quickly and efficiently
  • Both hat and mandrel are made of steel
  • Specially treated ensures the mandrel will be encased by the rivet during application
  • Comprised of a hat and mandrel
  • Commonly used for:
    • Sliding Tracks
    • Rollers

All Steel Open End Countersunk Blind Rivet Spec Sheet

Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
POP Rivet Countersunk All Steel - 6-4C 3/16" (0.188 - 0.250)
SKU #1818-004-0002
POP Rivet Countersunk All Steel - 6-4C 3/16" (0.188 - 0.250)
SKU #1818-004-0002
1
 NA
25
 $3.50 (0.14/ea)
100
 $9.00 (0.09/ea)
1000
 $50.00 (0.05/ea)
Subtotal: $0.00 /
POP Rivet Countersunk All Steel - 6-6C 3/16" (0.251 - 0.375)
SKU #1818-004-0012
POP Rivet Countersunk All Steel - 6-6C 3/16" (0.251 - 0.375)
SKU #1818-004-0012
1
 NA
25
 $3.75 (0.15/ea)
100
 $10.00 (0.1/ea)
1000
 $70.00 (0.07/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Norseman Magnum Super Premium Jobber Length Drill Bits - #11
Norseman Magnum Super Premium Jobber Length Drill Bits - #11 1052-338-0062
Norseman Magnum Super Premium Jobber Length Drill Bits - #11
1
 $5.61 (5.61/ea)
5
 $22.50 (4.5/ea)
10
 $43.40 (4.34/ea)
Subtotal: $0.00 /
POP Rivet Hand-Operated Tool - 3/32" through 3/16" Rivet Size
POP Rivet Hand-Operated Tool - 3/32" through 3/16" Rivet Size 1050-082
POP Rivet Hand-Operated Tool - 3/32
POP Rivet Hand-Operated Riveter
Rivet Tool for Installing Blind Rivets - 3/16" Capacity

Our Price: $28.74
Subtotal: $0.00 /
POP Rivet Pneumatic Air Rivet Tool - 3/32" through 3/16" Rivet Size
POP Rivet Pneumatic Air Rivet Tool - 3/32" through 3/16" Rivet Size 1050-080
POP Rivet Pneumatic Air Rivet Tool - 3/32
POP Rivet Pneumatic Air Powered Riveter
Rivet Gun for Installing Blind Rivets - 3/16" Capacity

Our Price: $172.49
Subtotal: $0.00 /
Rivet Washers Zinc Plated Steel - 3/16" (ID.197, OD.500, TK.062)
Rivet Washers Zinc Plated Steel - 3/16" (ID.197, OD.500, TK.062) 1836-006-0022
Rivet Washers Zinc Plated Steel - 3/16
1
 NA
25
 $3.00 (0.12/ea)
100
 $8.00 (0.08/ea)
1000
 $30.00 (0.03/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Countersink
120
Drill (Hole) Size
#11
Finish
Zinc Plated
Flange Diameter Nominal
0.344
Head Height Max
0.05
Head Style
Countersunk
Mandrel Diameter Nominal
0.114
Material
Steel
Other
Open End
Pilot Hole
0.192 - 0.196
Product Type
Blind Rivets
Rivet Diameter
(#6) 3/16" (.187)
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
