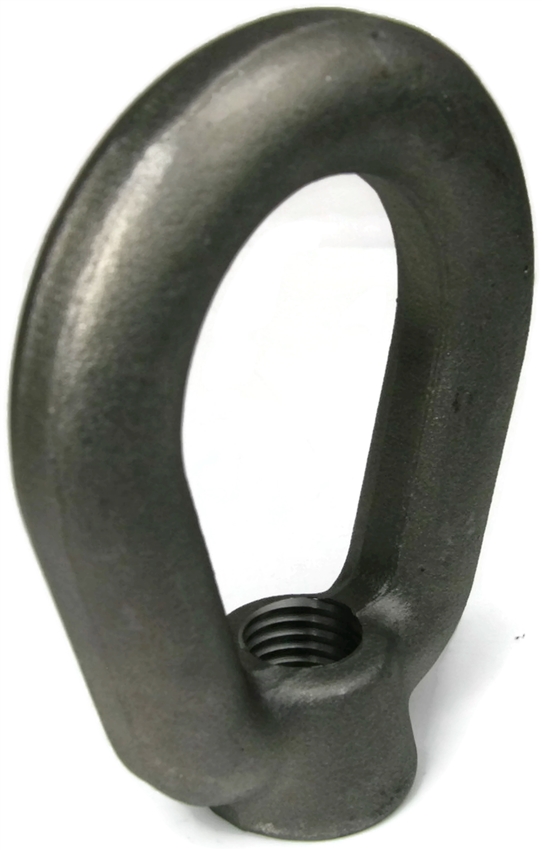

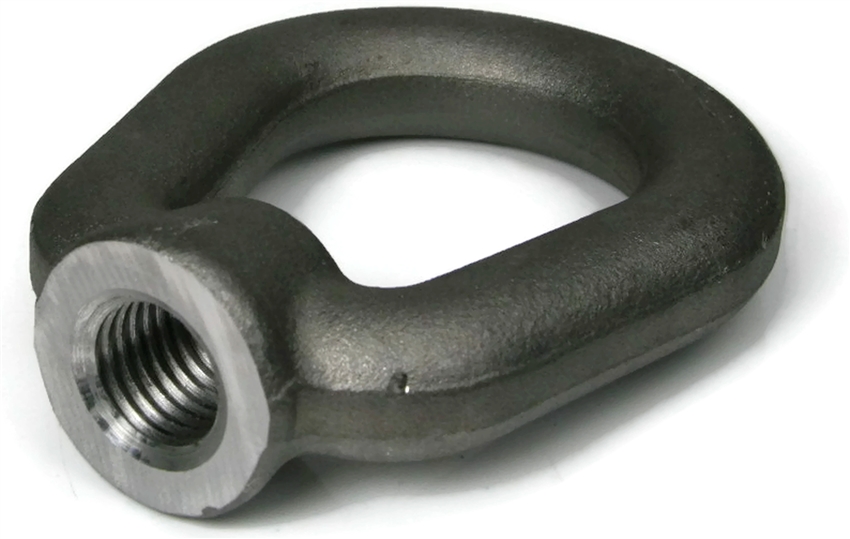

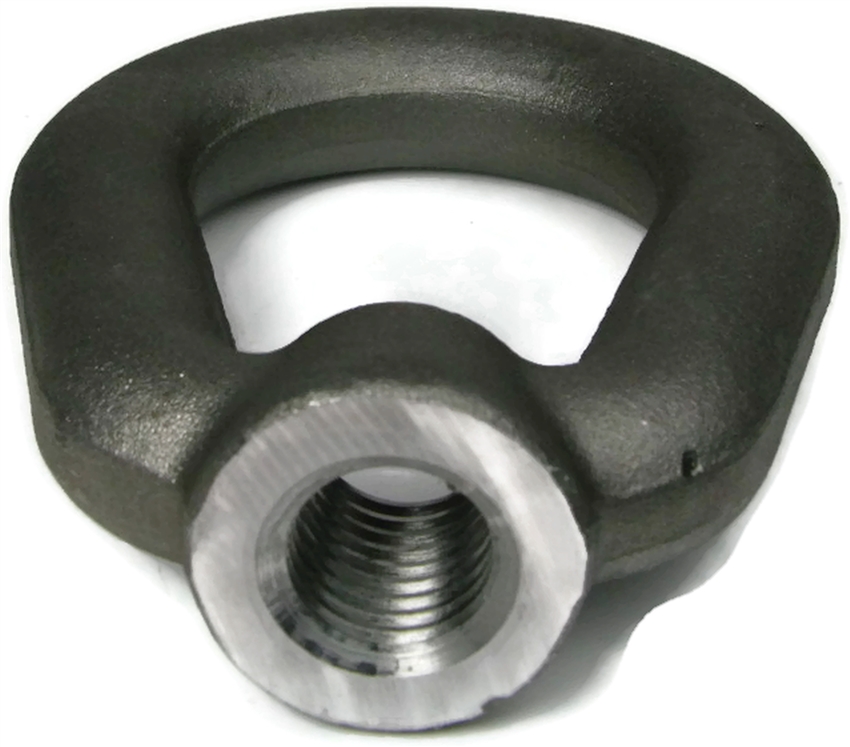

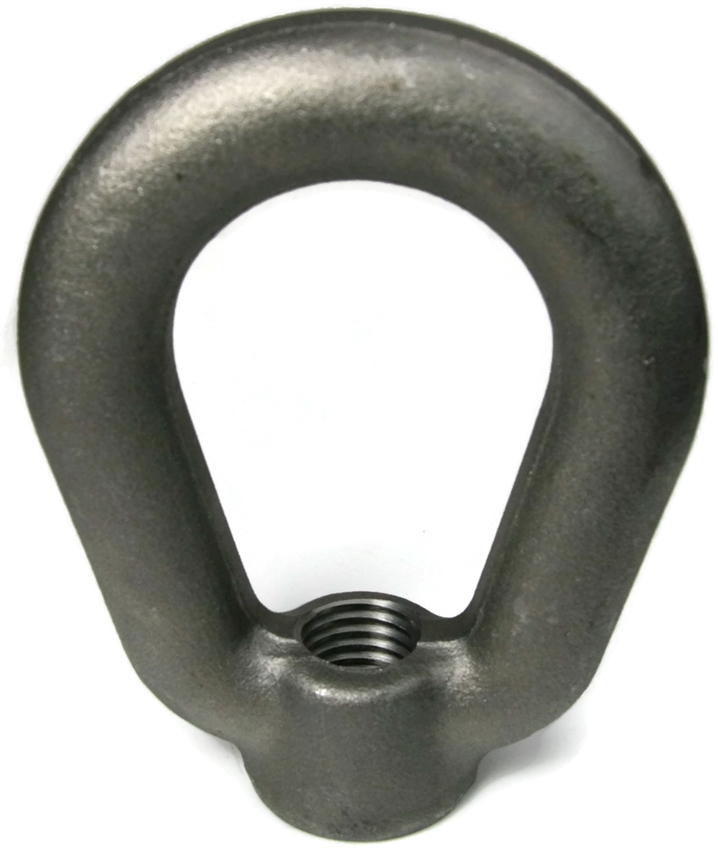

Ken Forging Style D Eye Nuts, C1030, Carbon Steel, 1"-8, USA Made
Forged Lifting Hardware
| Quantity | Unit price |
|---|---|
| To 9 |
$26.10*
|
| To 99 |
$25.48*
|
| From 100 |
$24.24*
|
- Brand: Ken Forging
- Color: Black
- Condition: New
- Diameter: 1"
- Eye Nut Style: D
- Head Type: Eye
- Thread Direction: Right Hand
- Fit: 2B
- Grade: C1030
- Head Style: Eye
- Internal Thread: 1"-8
- Material: Carbon Steel
- Part Number: 787392531618
- Product Type: Eye Nuts
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 8 Per Inch
- Thread Size: 1"-8
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- Designed to receive a hook or a rope, cable, or chain
- Often used to lift heavy equipment vertically, but are not recommended for angular lifting
- Used as attachments to equipment for transportation purposes that could not be moved by hand
- C1030 Carbon Steel
A C1030 Carbon Steel Style D Eye Nut only comes in 7/8"-9 and 1"-8 sizes (or their equivalent) and feature a smaller bell and large internal diameter length.
Please Note: Eye Nuts are not eligible for free shipping.
Follow the Manufacturer (Ken Forge) safety information for installation and usage of Eye bolts and Nuts on their Website.
Sizes listed as: Thread Diameter - Thread Pitch
