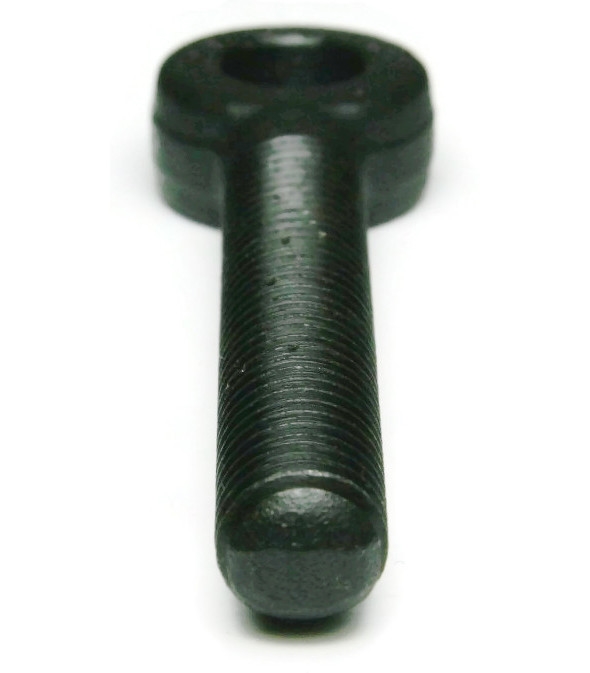

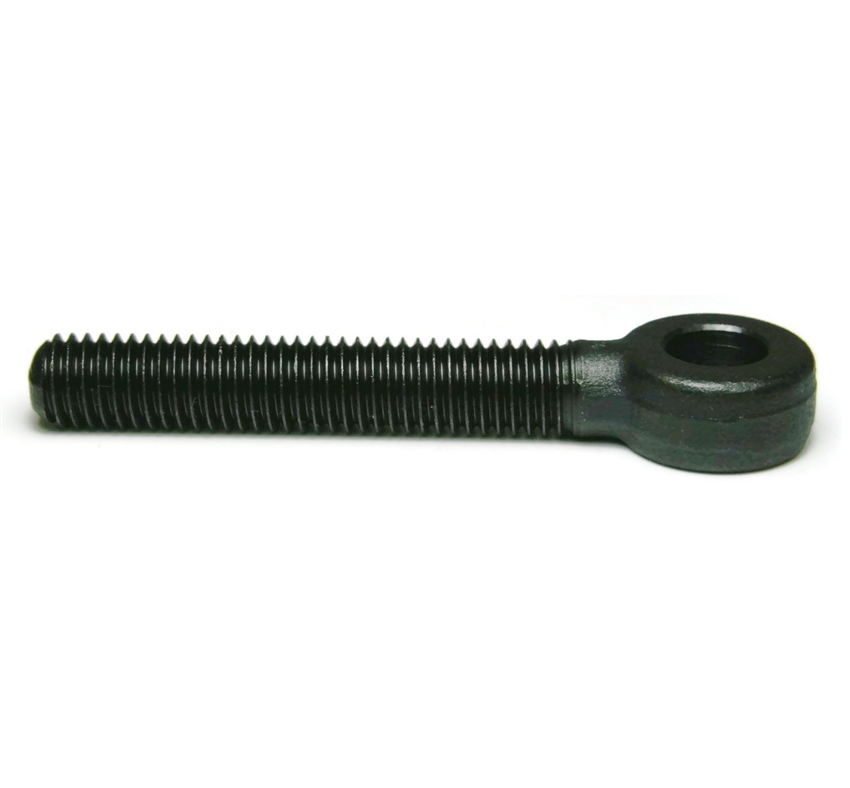

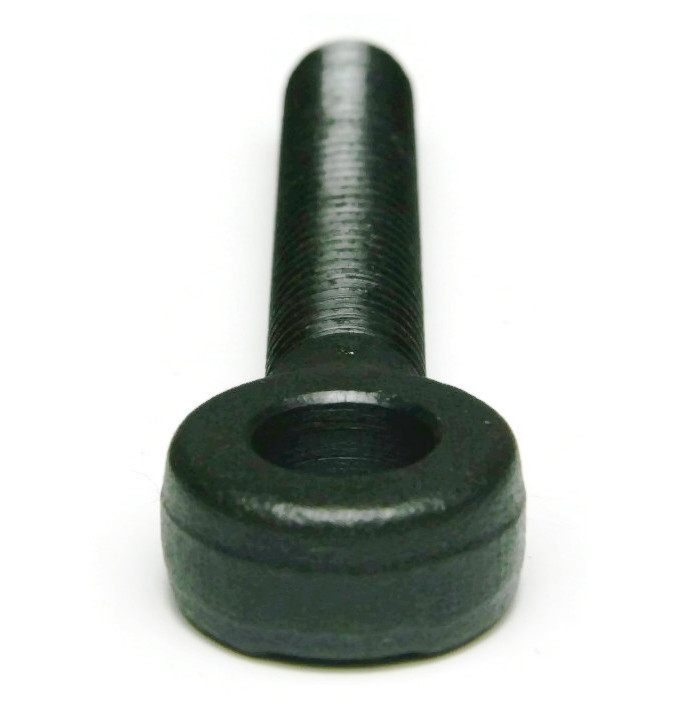

Ken Forging Solid Rod Ends, C1030-1035 Carbon Steel, 5/16"-18 x 1-1/2", USA Made
Forged Lifting Hardware
| Quantity | Unit price |
|---|---|
| To 9 |
$12.91*
|
| To 99 |
$12.61*
|
| From 100 |
$12.00*
|
- Brand: Ken Forging
- Color: Black
- Condition: New
- Diameter: 5/16"
- Thread Direction: Right Hand
- Grade: C1030-1035
- Length: 1-1/2"
- Material: Carbon Steel
- Other: Inner Diameter of Eye is equal to shank diameter
- Part Number: 787392544908
- Product Type: Rod Ends
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 18 Per Inch
- Thread Size: 5/16"-18
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- USA Made: Yes
- Weight: 1 lb
- Possess a thicker, smaller head in proportion to the body compared to eye bolts
- Designed for applications where a spherical bearing and side-to-side misalignment are not needed
- Often used in:
- Ladder Bar Assemblies
- Torque Arms
- Suspension Components
- C1030-1035 Carbon Steel are Black Oxided, Drop Forged, Passivated and Electropolished for a durable corrosion resistant finish
A C1030-C1035 Carbon Steel Solid Rod End or rod eye is a threaded rod with a ring for a head.
Please Note: Rod Ends are not eligible for free shipping.
Sizes listed as: Shank Diameter - Thread Pitch x Shank Length
Product number:
1570-006-0002
