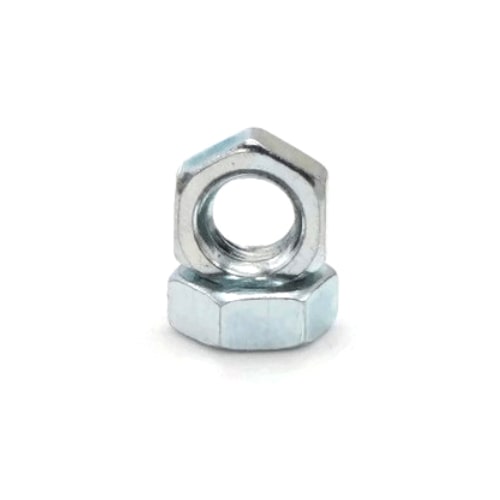

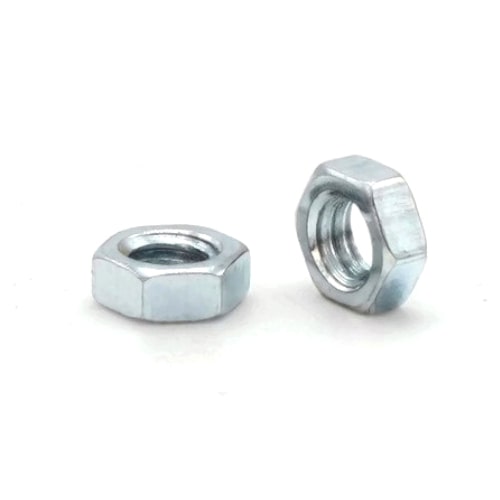

Hex Machine Screw Nuts, Extra Small Pattern, Grade 2 Zinc Plated Steel, #8-32 x 1/4" F x 3/32" H
Hex Nuts for Diameters under 1/4" with a Smaller Width Across Flats
| Quantity | Unit price |
|---|---|
| 1 – 99 |
$0.12*
|
| 100 – 999 |
$0.08*
|
| 1000+ |
$0.06*
|
- Across Flats (Width): 1/4"
- Additional Sizing Info: Small Pattern Machine Screw Nuts have a Smaller Across Flats Measurement
- Color: Silver
- Condition: New
- Diameter: #8
- Drive Style: External Hex
- Thread Direction: Right Hand
- Finish: Zinc Plated
- Fit: 2B
- Grade: 2
- Internal Thread: #8-32
- Material: Steel
- Part Number: 722703793170
- Product Type: Extra Small Pattern Hex Machine Screw Nut
- Size System: US
- Size Type: Regular
- Standards Met: REACH, RoHS
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #8-32
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Hexagonal Shape Extra Small Pattern Machine Screw Nut
- Used on Machine Screws or Bolts Diameters smaller than 1/4"
- Smaller flats than a regular machine nut
- Case Hardened (CR+3) Zinc Plated Grade 2 Steel
- Known as Machine Screw Nuts, MS Nuts, or Machine Nuts
- CR+3 Zinc Plated Steel
- REACH and RoHS Compliant
| Nut Sizes | Flats | Thickness |
| #8-32 | 1/4" | 3/32" |
Product number:
1102-125-0002
