#10 Phillips Modified Truss Head Self Drilling Screws TEK 3 Point - Zinc Plated Steel
Modified Truss Head Self Drilling Screws



Alternative Views:

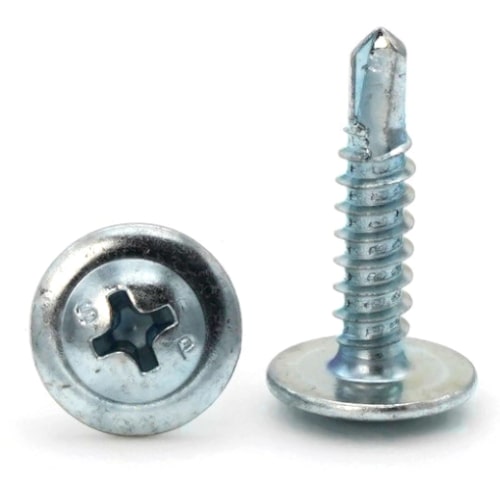

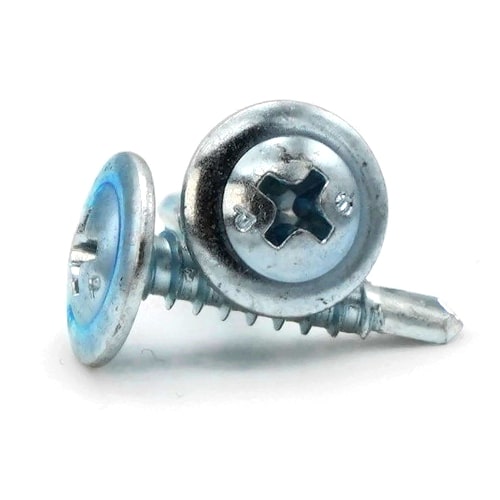

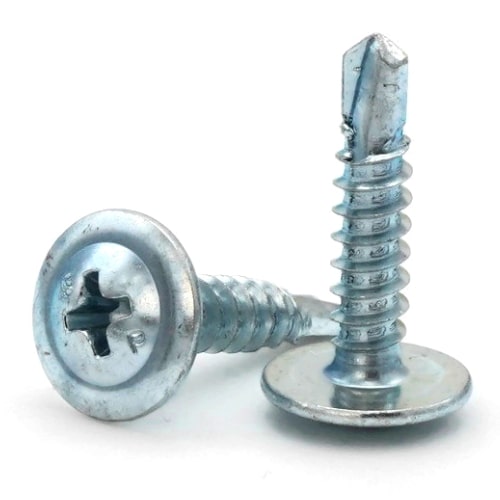

Phillips Modified Truss Head Self Drilling Screws - Zinc Plated Steel

Diameter: #10

Phillips Modified Truss Head Self Drilling Screws feature a Phillips drive and a a sheet metal thread with a self driller cutting (TEK) point to pierce through 20 to 14 gauge metals. Modified Truss Head Screws feature an oversized domed head with a flange, similar to an integral washer. Modified Truss Head Screws have a 100 degree undercut which creates a larger area beneath the screw's head for a larger bearing surface.

Self Drilling Screws in this selection are made from case hardened zinc plated steel to ensure that the metal of the screw is harder than the surface being drilled into.

REACH and RoHS Compliant

Product Specifications:
Phillips Modified Truss Head Sheet Metal Screws
Thread Diameter Major: #10 (0.189")
Thread Diameter Minor: #10 (0.141")
Thread Pitch: 16 Per Inch (Coarse)
Thread Direction: Right Hand
Overall Head Diameter: Max 0.441 - Min 0.425
Head Height: Max 0.098 - Min 0.079
Point Type: TEK 3
Material: Zinc Plated Steel
Drive Size: Phillips #2
Listed Below As: Diameter x Length
Specifications may vary +/- within IFI Tolerances

Related Products:
Phillips Power Bits
Stainless Steel
Phillips Modified Truss Head
Sheet Metal Screws
Phillips Power Bits
Stainless Steel Lath Screws



Item# Item Name Our Price Qty Add
62110-010-0002 Phillips Modified Truss Head Self Drill Screws Zinc - #10 x 3/4" - QTY 1
$0.15
62110-010-0004 Phillips Modified Truss Head Self Drill Screws Zinc - #10 x 3/4" - QTY 25
$0.80
62110-010-0006 Phillips Modified Truss Head Self Drill Screws Zinc - #10 x 3/4" - QTY 100
$2.89
62110-010-0008 Phillips Modified Truss Head Self Drill Screws Zinc - #10 x 3/4" - QTY 250
$6.86
62110-010-0010 Phillips Modified Truss Head Self Drill Screws Zinc - #10 x 3/4" - QTY 1000
$25.99
Check the items box you wish to purchase, then click
