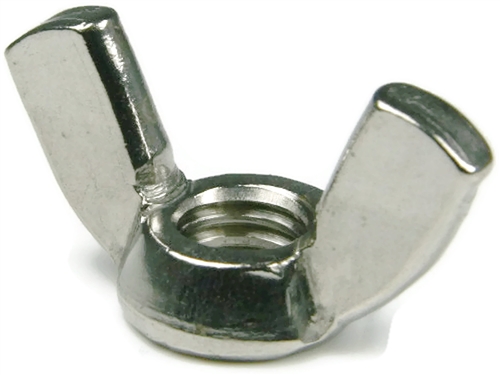

Wing Nuts, Stainless Steel 316, #10-32
Manually Installed Nuts in 316 Stainless Steel
| Quantity | Unit price |
|---|---|
| To 99 |
$0.50*
|
| To 999 |
$0.30*
|
| From 1000 |
$0.28*
|
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Drive Style: Hand
- Thread Direction: Right Hand
- Fit: 2B
- Grade: 316
- Internal Thread: #10-32
- Marine Grade: Yes
- Material (Duplicate): 316 Stainless Steel
- Material: Stainless Steel
- Part Number: 6002-014-0008
- Pattern: Wing Nut
- Product Type: Wing Nut
- Size: #10-32
- Size System: US
- Size Type: Regular
- System of Measurement: Inch
- Thread Direction: Right Hand
- Thread Pitch: 32 Per Inch
- Thread Size: #10-32
- Thread Standard: UNF
- Thread Type: Fine
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb
- Made for projects that don't require tools
- Install with just your fingers
- Two protruding "wings"
- Can be referred to as either a Wingnut or Wing Nut
- Commonly used where frequent adjustments is required
- Made from Marine Grade 316 Stainless Steel
- Superior Corrosion Resistance from Harsh or Salt Water Applications
- Sized listed below as: Internal Diameter - Thread Pitch
| Nut Sizes | Wing Span | Thickness |
| #10 | Max 0.91" - Min 0.78" | Max 0.14" - Min 0.10" |
| 1/4" | Max 1.10" - Min 0.97" | Max 0.18" - Min 0.14" |
| 5/16" | Max 1.25" - Min 1.12" | Max 0.21" - Min 0.17" |
| 3/8" | Max 1.44" - Min 1.31" | Max 0.24" - Min 0.20" |
| 1/2" | Max 1.94" - Min 1.81" | Max 0.33" - Min 0.26" |
Product number:
6002-014-0008
