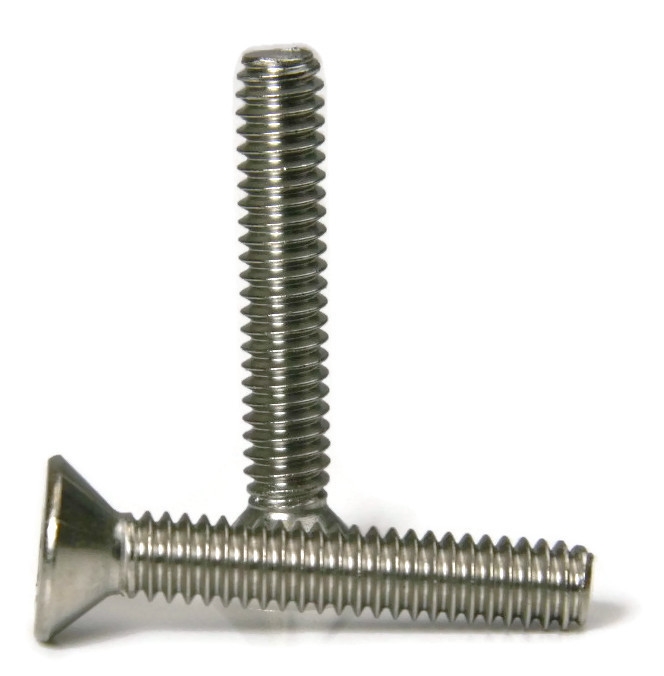

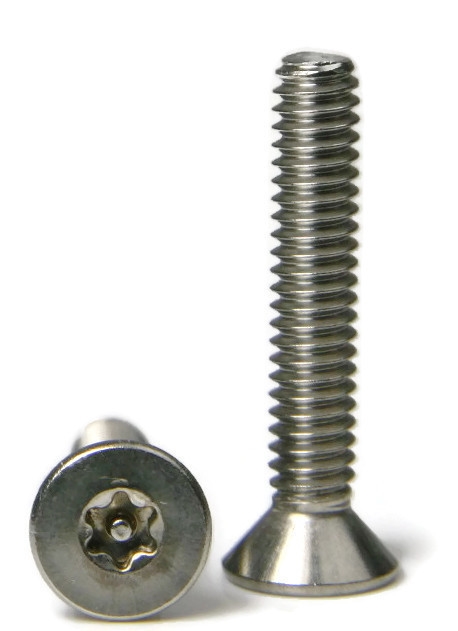

#8-32 Security Star Drive with Pin Flat Head Machine Screws
Diameter - Thread Pitch: #8-32 | Security Star Drive Size - T-15/T-20
#8-32 Stainless steel Star Drive flat head machine screws in 18-8 stainless steel
- Tamper Proof Star Drive Size - T-15/T-20
- Recommended for metal to metal applications
- Commonly used in food prep and processing areas
- Corrosion resistant: can prevent rust due to fresh water moisture

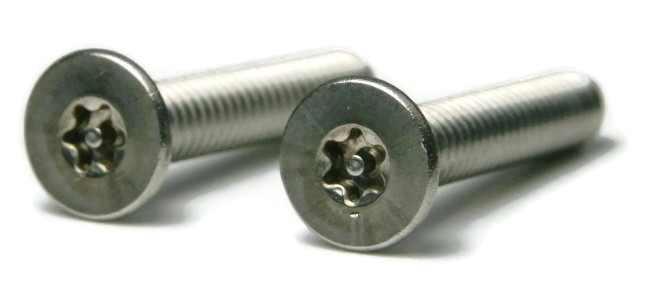

- Characterized by a 6 lobe or star drive with a central pin
- Pin grants additional protection by preventing conventional screwdrivers and grabbing devices from tampering with the fastener assembly
See Product Specifications
Select Package Quantity
Loading ...
Product Specifications
Body Diameter
#8 (Max 0.1631 - Min 0.1571)
Color
Silver
Corrosion Resistant
Yes
Diameter
#8
Drive Style
Star With Pin
Grade
18-8
Head Style
Flat
Material
Stainless Steel
Product Type
Tamper Proof Machine Screws
Security Fastener
Yes
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances3/8" Length has a T20 Drive
Torx TP Drive
T-15, T-20
