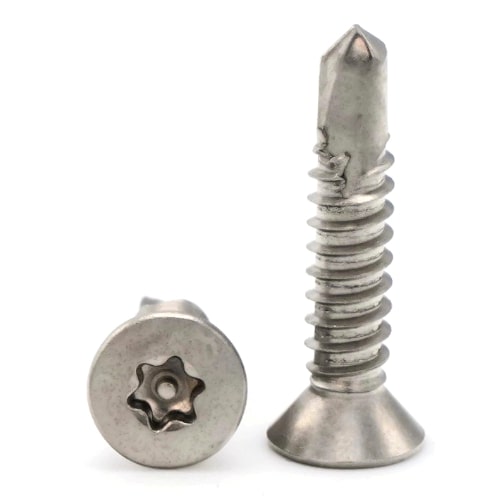

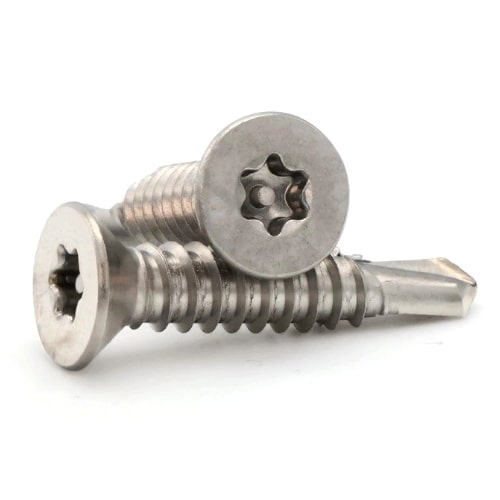

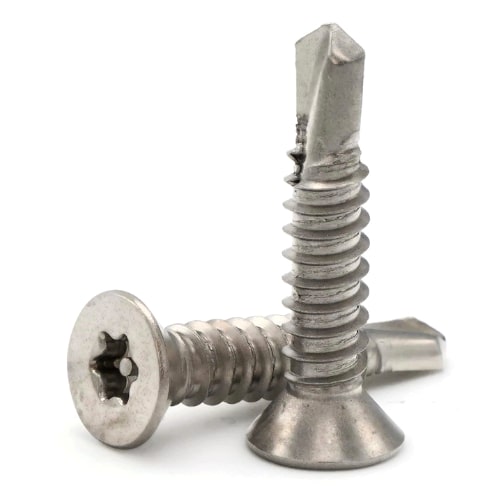

#10-16 Star Drive 6-Lobe Flat Head Self Driller Security Screws

#10-16 | 410 Stainless Steel Star Drive with Pin Security Flat Head Self Drilling Sheet Metal Screws

Diameter - #10 | Security Star Drive Size - T-20

  • #10-16
  • Tamper Proof Star Drive Size - T-20
  • Fully threaded
  • Anti-vandalism
  • Unusual drive style prevents conventional screwdrivers from tampering
  • Feature a self drilling TEK 3 tip and a countersunk head
  • 410 Stainless steel Star Drive flat head self drilling screws are corrosion resistant and hardened to make drilling easier
  • NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 1/2
SKU #1026000-0002
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 1/2
SKU #1026000-0002
1
 $0.29 (0.29/ea)
100
 $24.00 (0.24/ea)
1000
 $220.00 (0.22/ea)
Subtotal: $0.00 /
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 3/4
SKU #1026000-0012
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 3/4
SKU #1026000-0012
1
 $0.37 (0.37/ea)
100
 $31.00 (0.31/ea)
1000
 $280.00 (0.28/ea)
Subtotal: $0.00 /
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 1
SKU #1026000-0022
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 1
SKU #1026000-0022
1
 $0.37 (0.37/ea)
100
 $31.00 (0.31/ea)
1000
 $280.00 (0.28/ea)
Subtotal: $0.00 /
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 1-1/2
SKU #1026000-0042
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 1-1/2
SKU #1026000-0042
1
 $0.48 (0.48/ea)
100
 $40.00 (0.4/ea)
1000
 $360.00 (0.36/ea)
Subtotal: $0.00 /
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 2
SKU #1026000-0052
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 2
SKU #1026000-0052
1
 $0.60 (0.6/ea)
100
 $50.00 (0.5/ea)
1000
 $450.00 (0.45/ea)
Subtotal: $0.00 /
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 3
SKU #1026000-0072
Star Drive 6-Lobe Flat Head Self Driller Security Screws - #10 x 3
SKU #1026000-0072
1
 $0.80 (0.8/ea)
100
 $66.00 (0.66/ea)
1000
 $600.00 (0.6/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

Star Drive 6-Lobe Tamper Proof Security Bit - T-20
Star Drive 6-Lobe Tamper Proof Security Bit - T-20 1011042
Star Drive 6-Lobe Tamper Proof Security Bit - T-20
1
 $1.83 (1.83/ea)
100
 $134.00 (1.34/ea)
1000
 $1,230.00 (1.23/ea)
Subtotal: $0.00 /
Tamper Proof Star Drive Power Bits - T-20 - Length 2"
Tamper Proof Star Drive Power Bits - T-20 - Length 2" 1050-702-0022
Tamper Proof Star Drive Power Bits - T-20 - Length 2
1
 $7.38 (7.38/ea)
10
 $65.90 (6.59/ea)
50
 $272.00 (5.44/ea)
Subtotal: $0.00 /
Star Drive Tamper Proof T20 Round Blade Screwdriver
Star Drive Tamper Proof T20 Round Blade Screwdriver 10112-0012-0002
Star Drive Tamper Proof T20 Round Blade Screwdriver
1
 $11.67 (11.67/ea)
Subtotal: $0.00 /
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#10
Drive Style
Star (with Pin)
Grade
410
Head Style
Flat
Material
Stainless Steel
Point Type
TEK 3
Product Type
Tamper Proof Self Drilling Screws
System of Measurement (Unit)
Inch
TEK Self Drilling Point
TEK 3
Thread Diameter Major
(#10) 0.189"
Thread Diameter Minor
(#10) 0.141"
Thread Direction
Right Hand
Thread Pitch (Count)
16 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Torx TP Drive
T-20
