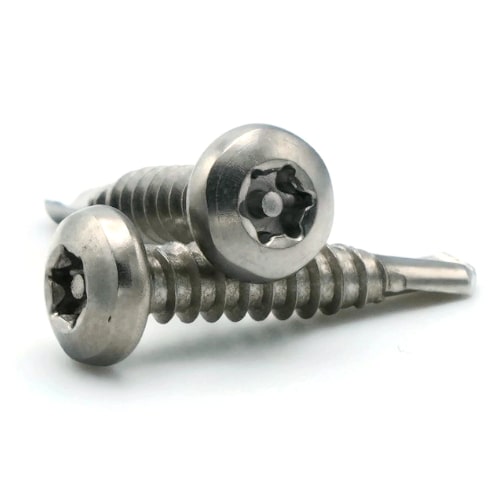

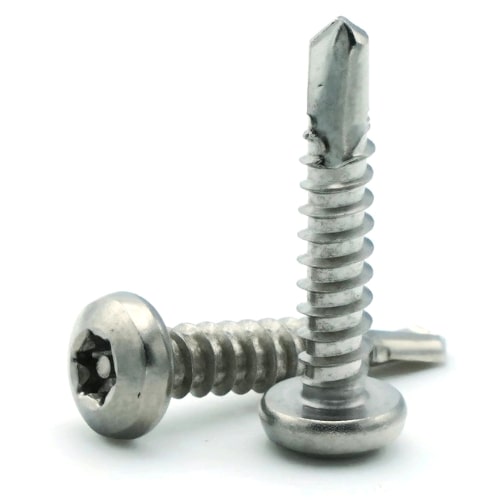

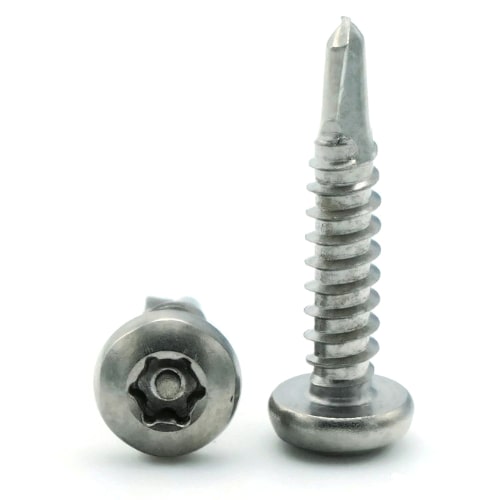

#10-16 Star Drive with Pin Pan Head Self Drilling Security Screws
Diameter - #10 | Security Star Drive Size - T-25
- Tamper Proof Star Drive Size - T-25
- Tamper proof screws are used to deter vandalism and screw removal
- Screw removal is difficult, if not impossible without the proper driver
- 6 lobe drive style (star drive with a central pin)
- Sizes listed below as: Diameter-Threads Per Inch x Length
- 410 Stainless steel Torx styled star drive pan head self drilling screws are harder than most materials easing the installation process
- Self drilling tip (TEK-3)
- Commonly used for:
- Public Restrooms
- Gutters
- Food prep areas
- Processing areas
- License plates
- Boats
- FREE BIT included with Purchase of 25 or more screws of the same size and length.
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#10
Drive Style
Star (with Pin)
Grade
410
Head Style
Pan
Material
Stainless Steel
Product Type
Tamper Proof Self Drilling Screws
System of Measurement (Unit)
Inch
Thread Diameter Major
(#10) 0.194 - 0.188
Thread Diameter Minor
(#10) 0.133 - 0.126
Thread Direction
Right Hand
Thread Pitch (Count)
16 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Torx TP Drive
T-25
