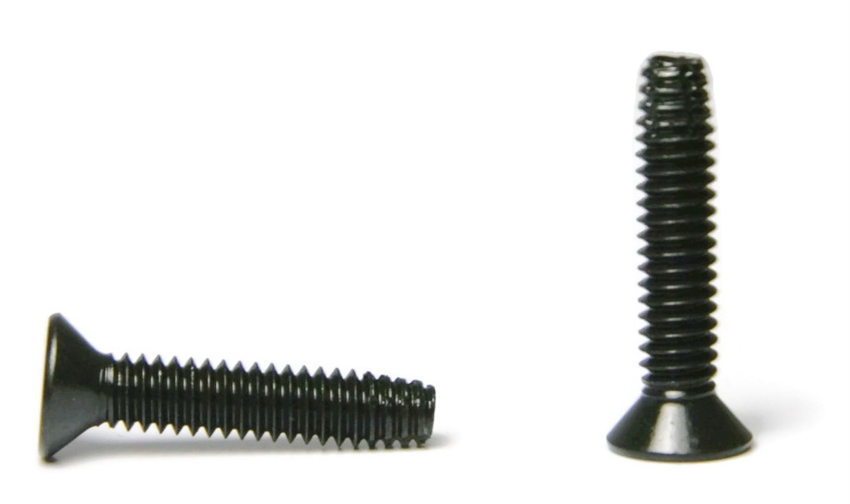

3/8"-16 Star Drive Flat Head Type F Thread Cutting Floorboard Screws Black Phosphate & Oil Finish

3/8"-16 Star Drive Flat Head Thread Cutting Screws - Black Phosphate and Oil Finish - Type F Point

Diameter - Thread Pitch: 3/8"-16


  • Provide a tight fit
  • A thread cutting screw cuts its own threads into an existing hole
  • High resistances to torque, shear, and tension when applied
  • Feature a machine screw style thread
  • Blunt tapered point with multi-cutting edges and chip cavities

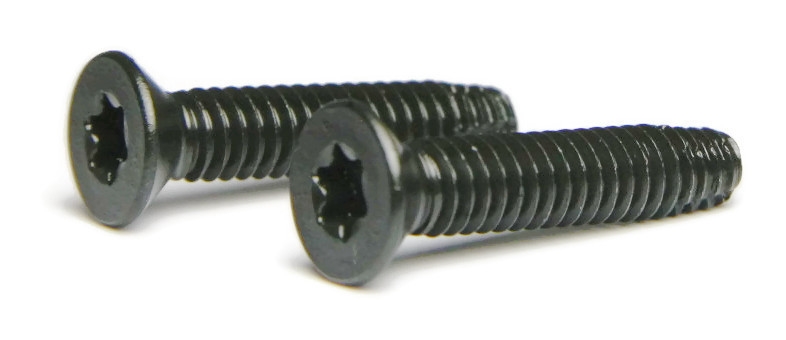

  • Star drive style to designed to reduce the chance of slip out during proper installation
  • Minimizes the chance to stripping

3/8"-16 Thread Cutting screws feature a thread cutting tip which makes threads in existing or pre-drilled holes.

Drill Bit Sizes for Thread Cutting Screws

Sizes Listed As:
Diameter - Thread Pitch x Length from Top of Head

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 1"
SKU #6000-020-0002
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 1"
SKU #6000-020-0002
1
$1.07 (1.07/ea)
25
$25.75 (1.03/ea)
100
$99.00 (0.99/ea)
1000
$970.00 (0.97/ea)
Subtotal: $0.00 /
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 1-1/4"
SKU #6000-020-0012
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 1-1/4"
SKU #6000-020-0012
1
$1.51 (1.51/ea)
25
$36.25 (1.45/ea)
100
$141.00 (1.41/ea)
1000
$1,390.00 (1.39/ea)
Subtotal: $0.00 /
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 1-1/2"
SKU #6000-020-0022
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 1-1/2"
SKU #6000-020-0022
1
$1.02 (1.02/ea)
25
$24.75 (0.99/ea)
100
$95.00 (0.95/ea)
1000
$930.00 (0.93/ea)
Subtotal: $0.00 /
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 2"
SKU #6000-020-0032
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 2"
SKU #6000-020-0032
1
$0.86 (0.86/ea)
25
$21.00 (0.84/ea)
100
$83.00 (0.83/ea)
1000
$810.00 (0.81/ea)
Subtotal: $0.00 /
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 2-1/2"
SKU #6000-020-0042
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 2-1/2"
SKU #6000-020-0042
1
$1.77 (1.77/ea)
25
$43.25 (1.73/ea)
100
$165.00 (1.65/ea)
1000
$1,620.00 (1.62/ea)
Subtotal: $0.00 /
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 3"
SKU #6000-020-0052
Star Drive Flat Head Type F Screws Black Phosphate 3/8"-16 x 3"
SKU #6000-020-0052
1
$3.08 (3.08/ea)
25
$74.00 (2.96/ea)
100
$285.00 (2.85/ea)
1000
$2,830.00 (2.83/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$3.59 (3.59/ea)
10
$32.40 (3.24/ea)
25
$79.00 (3.16/ea)
50
$142.00 (2.84/ea)
Subtotal: $0.00 /
1
$14.54 (14.54/ea)
5
$59.25 (11.85/ea)
10
$114.10 (11.41/ea)
Subtotal: $0.00 /

Product Specifications
Corrosion Resistant
Yes
Drive Style
Star
Finish
Black Phosphate & Oil
Grade
C1022
Head Style
Flat
Material
Steel
Point Type
F
System of Measurement (Unit)
Inch
Thread Diameter
3/8"
Thread Direction
Right Hand
Thread Pitch (Count)
16 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Torx Drive
T45
