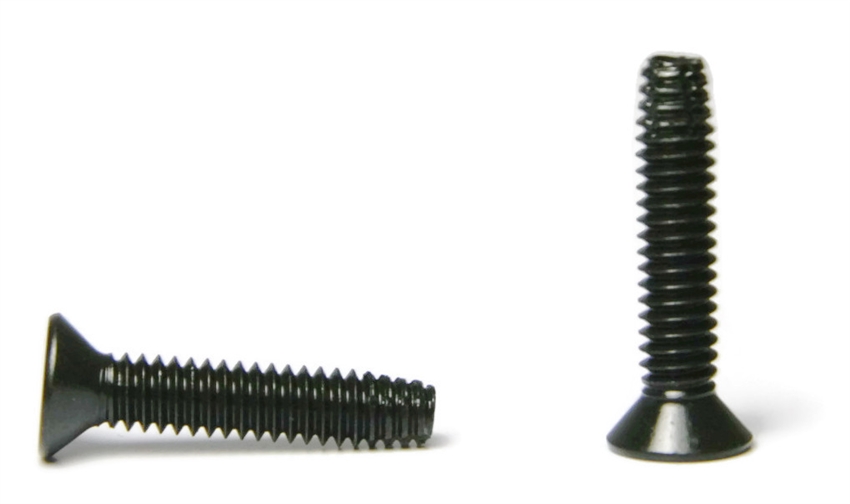

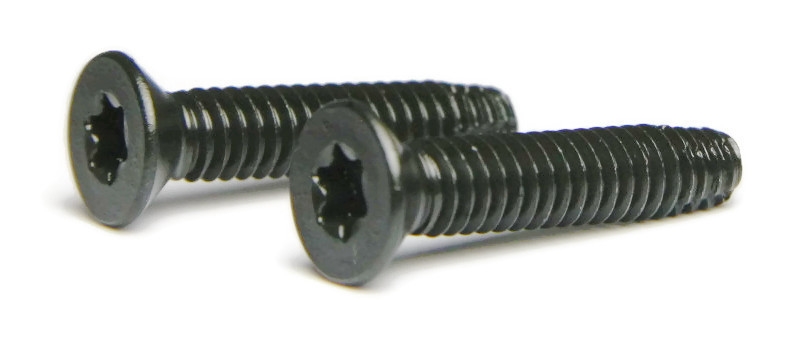

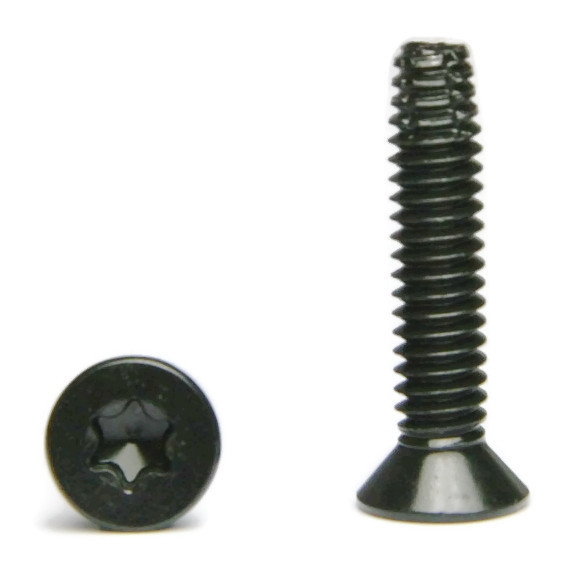

#10-24 Star Drive Flat Head Type F Thread Cutting Floorboard Screws Black Phosphate & Oil Finish

Star Drive 6 Lobe Flat Head Thread Cutting Screws | Black Phosphate + Oil Finish - Type F

Diameter - Thread Pitch: #10-24


  • Provide a tight fit
  • High resistances to torque, shear, and tension when applied
  • Feature a machine screw style thread
  • Blunt tapered point with multi-cutting edges and chip cavities
  • Star drive style to designed to reduce the chance of slip out during proper installation
  • Minimizes the chance to stripping
  • A thread cutting screw cuts its own threads into an existing hole

#10-24 Thread Cutting screws feature a thread cutting tip which makes threads in existing or pre-drilled holes.

Drill Bit Sizes for Thread Cutting Screws


Sizes Listed As:
Diameter - Thread Pitch x Length from Top of Head

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Star Drive Flat Head Type F Screws Black Phosphate #10-24 x 1-1/4"
SKU #6000-015-0012
Star Drive Flat Head Type F Screws Black Phosphate #10-24 x 1-1/4"
SKU #6000-015-0012
1
NA
25
$4.75 (0.19/ea)
100
$13.00 (0.13/ea)
1000
$110.00 (0.11/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$2.01 (2.01/ea)
10
$18.50 (1.85/ea)
25
$45.75 (1.83/ea)
50
$89.50 (1.79/ea)
Subtotal: $0.00 /
1
$4.75 (4.75/ea)
5
$18.90 (3.78/ea)
10
$36.30 (3.63/ea)
Subtotal: $0.00 /

Product Specifications
Color
Black
Corrosion Resistant
Yes
Drive Style
Star
Finish
Black Phosphate & Oil
Grade
C1022
Head Style
Flat
Material
Steel
Point Type
F
Product Type
Thread Cutting (Floorboard) Screws
System of Measurement (Unit)
Inch
Thread Diameter
#10
Thread Direction
Right Hand
Thread Pitch (Count)
24 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Torx Drive
T25
