#6-32 Thread Insert for Metal 303 Stainless Steel #303-006 US Coarse

#6-32 Stainless Steel Threaded Inserts for Metal

E-Z Lok Number | Internal Thread Size: #303-006 | #6-32

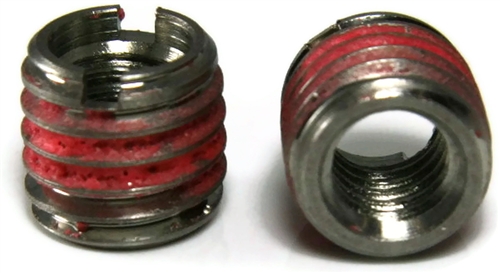

#6-32 Stainless Steel Threaded Inserts by E-Z Lok are machined out of 303 Stainless Steel and feature standard OD threads.

  • Use of standard taps for installation
  • No special tools are required
  • For Metal
  • Drill the appropriately sized hole with a standard drill
  • Tap the hole with a standard tap
  • Turn in the E-Z LOK like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK drive tool
Stainless Steel Solid wall inserts are commonly used in maintenance departments and in tool cribs, as well as in the molding and metalworking industries and are a quick and simple solution for reinforcing or repairing holes in soft metals.


Sizes Listed As:
E-Z Lok MPN, Internal Thread x Insert Length

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Thread Insert 303 SS #303-006 US Coarse - #6-32 x 0.280
SKU #11710002
Thread Insert 303 SS #303-006 US Coarse - #6-32 x 0.280
SKU #11710002
1
$5.20 (5.2/ea)
100
$429.00 (4.29/ea)
1000
$3,900.00 (3.9/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$2.50 (2.5/ea)
10
$17.50 (1.75/ea)
Subtotal: $0.00 /
1
$13.55 (13.55/ea)
10
$125.50 (12.55/ea)
100
$1,155.00 (11.55/ea)
Subtotal: $0.00 /

Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
#6
Drill (Hole) Size
#7
Drive Style
Slotted/E-Z Lok Drive Tool
External Thread
1/4"-20
EZ Lok Drive Took
500-006
Grade
303
Head Style
No Head
Insert Length
0.28
Internal Thread
#6-32
Manufacturer Part Number
303-006
Material
Stainless Steel
Other
Minimum Full Thread Depth: 0.344
Pilot Hole
#7
Product Type
Thread Insert
System of Measurement (Unit)
Inch
Tap Size
1/4"-20
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
