3/8"-16 Thread Insert for Metal 303 Stainless Steel #303-6 US Coarse

3/8"-16 Stainless Steel Threaded Inserts for Metal

E-Z Lok Number | Internal Thread Size: #303-6 | 3/8"-16

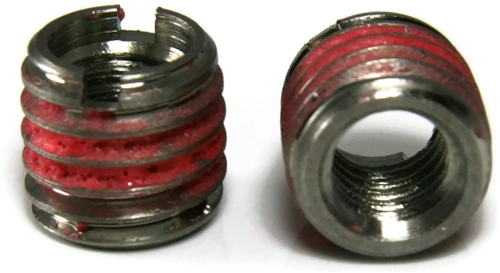

3/8"-16 Stainless Steel Threaded Inserts by E-Z Lok are machined out of 303 Stainless Steel and feature standard OD threads.

  • Use of standard taps for installation
  • No special tools are required
  • For Metal
  • Drill the appropriately sized hole with a standard drill
  • Tap the hole with a standard tap
  • Turn in the E-Z LOK like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK drive tool
Stainless Steel Solid wall inserts are commonly used in maintenance departments and in tool cribs, as well as in the molding and metalworking industries and are a quick and simple solution for reinforcing or repairing holes in soft metals.


Sizes Listed As:
E-Z Lok MPN, Internal Thread x Insert Length

Select Products Below See Product Specifications

NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
Thread Insert 303 SS #303-6 US Coarse - 3/8"-16 x 0.515
SKU #11760002
Thread Insert 303 SS #303-6 US Coarse - 3/8"-16 x 0.515
SKU #11760002
1
$7.56 (7.56/ea)
100
$624.00 (6.24/ea)
1000
$5,670.00 (5.67/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

1
$13.55 (13.55/ea)
10
$125.50 (12.55/ea)
100
$1,255.00 (12.55/ea)
Subtotal: $0.00 /
1
$13.08 (13.08/ea)
10
$91.50 (9.15/ea)
Subtotal: $0.00 /

Product Specifications
Color
Silver
Corrosion Resistant
Yes
Diameter
3/8"
Drill (Hole) Size
31/64"
Drive Style
Slotted/E-Z Lok Drive Tool
External Thread
9/16"-12
EZ Lok Drive Took
500-5
Grade
303
Head Style
No Head
Insert Length
0.515
Internal Thread
3/8"-16
Manufacturer Part Number
303-6
Material
Stainless Steel
Other
Minimum Full Thread Depth: 0.594
Pilot Hole
31/64"
Product Type
Thread Insert
System of Measurement (Unit)
Inch
Tap Size
9/16"-12
Thread Direction
Right Hand
Thread Pitch (Count)
16 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
