3/4"-10 Stainless Steel Threaded Inserts for Metal
E-Z Lok Number | Internal Thread Size: #303-12 | 3/4"-10

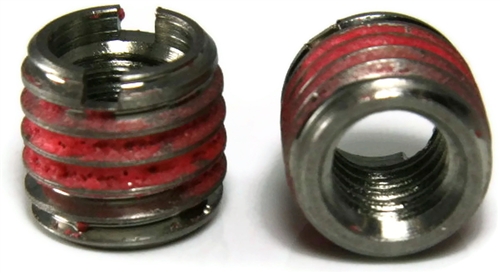

3/4"-10 Stainless Steel Threaded Inserts by E-Z Lok are machined out of 303 Stainless Steel and feature standard OD threads.
- Use of standard taps for installation
- No special tools are required
- For Metal
- Drill the appropriately sized hole with a standard drill
- Tap the hole with a standard tap
- Turn in the E-Z LOK like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK drive tool
Sizes Listed As:
E-Z Lok MPN, Internal Thread x Insert Length
See Product Specifications
Select Package Quantity
Loading ...
Product Specifications
Application
Metal
Brand
E-Z Lok
Color
Silver
Corrosion Resistant
Yes
Diameter
3/4"
Drill (Hole) Size
7/8"
Drive Style
Slotted/E-Z Lok Drive Tool
External Thread
1"-8
EZ Lok Drive Took
500-9
Grade
303
Head Style
No Head
Insert Length
0.781
Intended Work Material
Metal
Internal Thread
3/4"-10
Manufacturer Part Number
303-12
Material
Stainless Steel
Other
Minimum Full Thread Depth: 0.875
Pilot Hole
7/8"
Product Type
Thread Insert
Solid Heavy Wall
Yes
System of Measurement (Unit)
Inch
Tap Size
1"-8
Thread Direction
Right Hand
Thread Pitch (Count)
10 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
