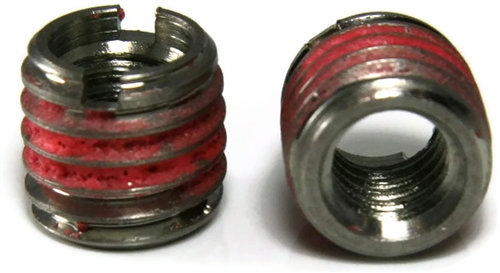

#10-32 Stainless Steel Threaded Inserts for Metal
E-Z Lok Number | Internal Thread Size: #303-332 | #10-32
#10-32 Stainless Steel Threaded Inserts by E-Z Lok are machined out of 303 Stainless Steel and feature standard OD threads.
- Use of standard taps for installation
- No special tools are required
- For Metal
- Drill the appropriately sized hole with a standard drill
- Tap the hole with a standard tap
- Turn in the E-Z LOK like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK drive tool
Sizes Listed As:
E-Z Lok MPN, Internal Thread x Insert Length
Product Specifications
Application
Metal
Brand
E-Z Lok
Color
Silver
Corrosion Resistant
Yes
Diameter
#10
Drill (Hole) Size
5/16"
Drive Style
Slotted/E-Z Lok Drive Tool
External Thread
3/8"-16
EZ Lok Drive Took
500-2
Grade
303
Head Style
No Head
Insert Length
0.406
Intended Work Material
Metal
Internal Thread
#10-32
Manufacturer Part Number
303-332
Material
Stainless Steel
Other
Minimum Full Thread Depth: 0.469
Pilot Hole
5/16"
Product Type
Thread Insert
Solid Heavy Wall
Yes
System of Measurement (Unit)
Inch
Tap Size
3/8"-16
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNF
Thread Type
Fine
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
