E-Z Coil, Helical Threaded Inserts, Stainless Steel 303, #10-24 x .406
E-Z Lok Number
Quantity | Unit price |
---|---|
To 99 |
$6.40*
|
To 999 |
$5.28*
|
From 1000 |
$4.80*
|
- Brand: E-Z Lok
- Color (Duplicate): Silver
- Color: Silver
- Condition: New
- Corrosion Resistant: Yes
- Diameter: #10
- Drill (Hole) Size: 5/16"
- Drive Style: Slotted/E-Z Lok Drive Tool
- External Thread: #10-24
- EZ Lok Drive Tool: M1007
- Thread Direction: Right Hand
- Thread Type: Coarse
- Grade: 303
- Head Style: No Head
- Insert Length: 0.406
- Internal Thread: #10-24
- Length: .406
- Manufacturer Part Number: 303-3
- Material (Duplicate): Stainless Steel
- Material: Stainless Steel
- Other: Minimum Full Thread Depth
- Part Number: 717029171122
- Pilot Hole: 5/16"
- Product Type: Thread Insert
- Size Type: Regular
- System of Measurement: Inch
- Tap Size: 3/8"-16
- Thread Direction: Right Hand
- Thread Pitch: 24 Per Inch
- Thread Size: #10-24
- Thread Standard: UNC
- Thread Type: Coarse
- Tolerance (IFI): Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
- Weight: 1 lb

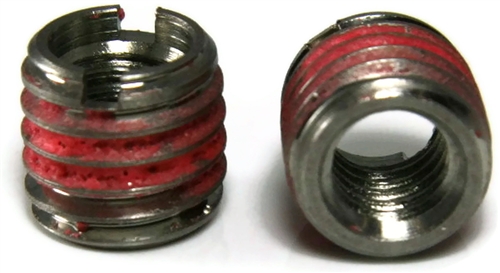

#10-24 Stainless Steel Threaded Inserts by E-Z Lok are machined out of 303 Stainless Steel and feature standard OD threads.
- Use of standard taps for installation
- No special tools are required
- For Metal
- Drill the appropriately sized hole with a standard drill
- Tap the hole with a standard tap
- Turn in the E-Z LOK like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK drive tool
Sizes Listed As:
E-Z Lok MPN, Internal Thread x Insert Length
Product number:
11730002
