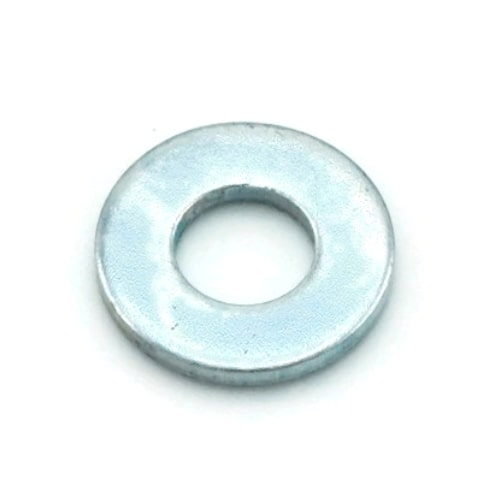

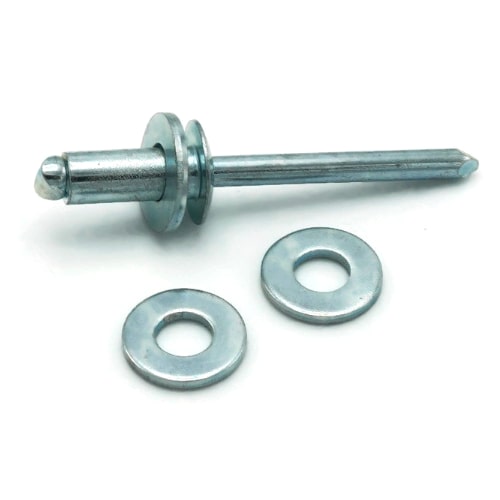

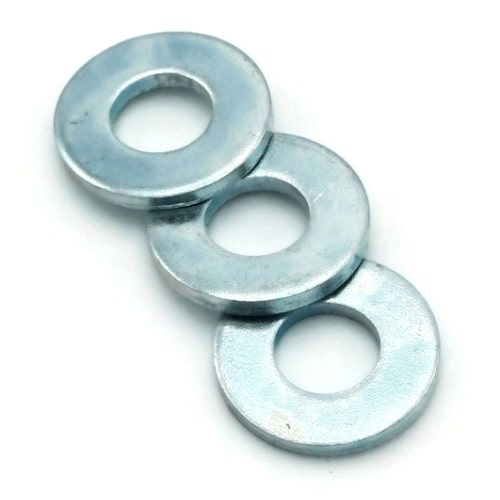

Zinc Plated Rivet Backup Washers
Zinc Plated Low Carbon Steel
- Typically used in stainless steel and other soft metals
- Create a larger diameter of pressure during fastener installation
- The larger diameter helps to spead our pressure over the material preventing pull through
- Zinc plated steel rivet backup washers are corrosion resistant with a shiny finish
- Always use the same material for rivet and backup washer
- Actual measurements may vary slightly +/- depending on production run
Zinc Plated Rivet Backup Washer Sizing
Washer Size | Rivet Diameter (Callout) | Rivet Diameter (Inch) |
1/8" | 4 | 1/8" |
5/32" | 5 | 5/32" |
3/16" | 6 | 3/16" |
1/4" | 8 | 1/4" |
Zinc Plated Rivet Backup Washer Specifications
Washer Sizes | Inner Diameter (ID) | Outer Diameter (OD) | Washer Thickness |
1/8" | Max 0.136" - Min 0.132" | 0.375" | 0.062" |
5/32" | Max 0.167" - Min 0.163" | 0.437" | 0.062" |
3/16" | Max 0.199" - Min 0.195" | 0.500" | 0.062" |
1/4" | Max 0.264" - Min 0.260" | 0.562" | 0.062" |
