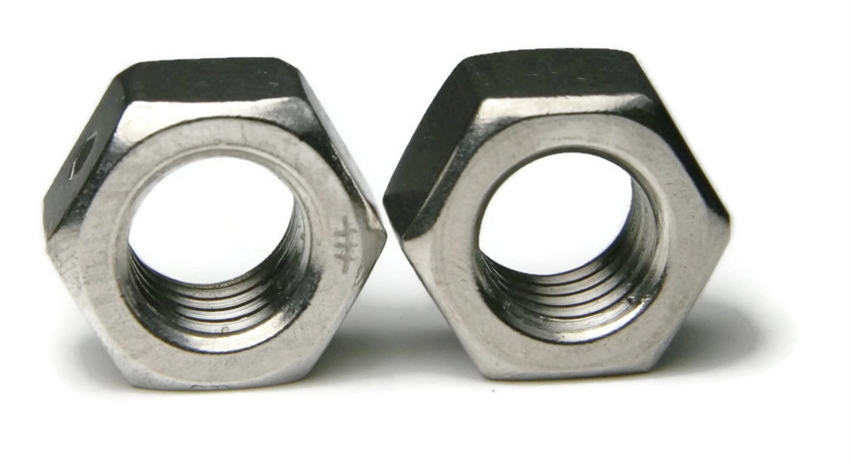

Stainless Steel Two Way Reversible Lock Nut
All Metal Centerlock Nuts in 18-8 Stainless Steel
- Can be used either top up or top down

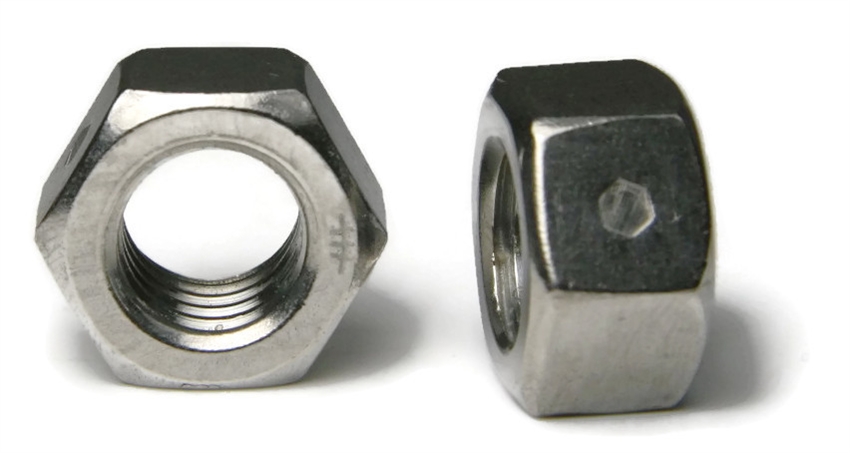

- Can be identified by indentations on the outside which distorts the internal threads to increase resistance on the mating part
- Available in UNC coarse or UNF fine thread
- Also referred to as two way lock nuts or center lock nuts, which are a kind of distorted thread locknut
|
Nut Size
|
Width Across Flats
|
Thickness
|
|
1/4"
|
Max 0.438 - Min 0.428
|
Max 0.226 - Min 0.212 |
|
5/16"
|
Max 0.500 - Min 0.489 | Max 0.273 - Min 0.258 |
|
3/8"
|
Max 0.562 - Min 0.551 | Max 0.337 - Min 0.320 |
|
1/2"
|
Max 0.750 - Min 0.736 | Max 0.448 - Min 0.427 |
|
5/8"
|
Max 0.938 - Min 0.922 | Max 0.559 - Min 0.535 |
| 3/4" |
Max 1.125 - Min 1.088
|
Max 0.665 - Min 0.617 |
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Color
Silver
Corrosion Resistant
Yes
Drive Style
External Hex
Grade
18-8
Material
Stainless Steel
Product Type
Two Way Reversible Lock Nut
System of Measurement (Unit)
Inch
Thread Direction
Right Hand
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
