1/4"-20 Tamper Proof Socket Set Screws 18-8 Stainless Steel

1/4"-20 Stainless Steel Security Socket Set Screws

Diameter - Thread Pitch: 1/4"-20


1/4"-20 Stainless steel security socket set screws in 18-8 stainless steel

  • Designed to be driven by a special security Allen wrench

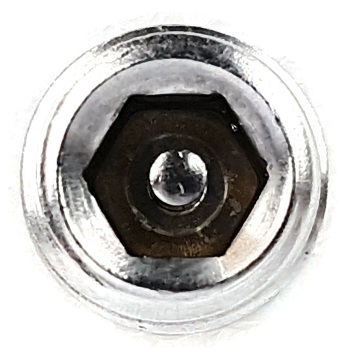

  • Drive has a pin in the center to deter tampering
  • Used where a flush surface is key
  • Headless fastener that can be driven entirely into a material
  • Corrosion and rust resistant, ensuring durability
  • Commonly used for:
    • Pulleys
    • Tracks
    • Surfboard Fins
    • Hotels
FREE Bit Included With Purchase of 25, 100 or 1000 Packs

Select Products Below
Product Specifications
Body Diameter
(1/4") Max 0.2500 - Min 0.2435
Corrosion Resistant
Yes
Cup Point Diameter
Max 0.132 - Min 0.118
Drive Style
Hex with Pin
Hex Drive
1/8" (With Pin)
Material
18-8 Stainless Steel
Product Type
Tamper Proof Socket Set Screws
Thread Pitch (Count)
20 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Select Products Below
Qty
Size
Select Package Quantity
SubTotal
1/4"-20 x 1/4"
SKU #6204-048-0002
1/4"-20 x 1/4"
SKU #6204-048-0002
1
$0.27 (0.27/ea)
25
$6.25 (0.25/ea)
100
$22.00 (0.22/ea)
1000
$200.00 (0.20/ea)

1/4"-20 x 3/8"
SKU #6204-048-0012
1/4"-20 x 3/8"
SKU #6204-048-0012
1
$0.29 (0.29/ea)
25
$6.50 (0.26/ea)
100
$24.00 (0.24/ea)
1000
$220.00 (0.22/ea)

1/4"-20 x 1/2"
SKU #6204-048-0022
1/4"-20 x 1/2"
SKU #6204-048-0022
1
$0.32 (0.32/ea)
25
$7.50 (0.30/ea)
100
$27.00 (0.27/ea)
1000
$240.00 (0.24/ea)
