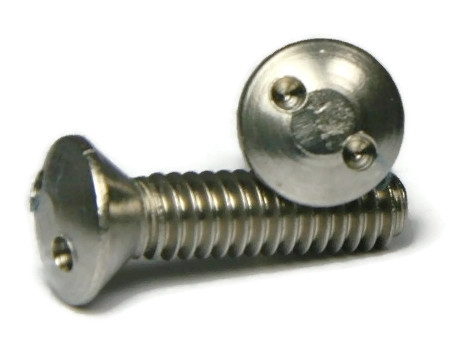

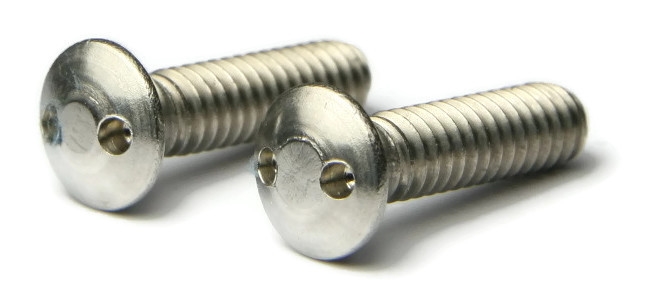

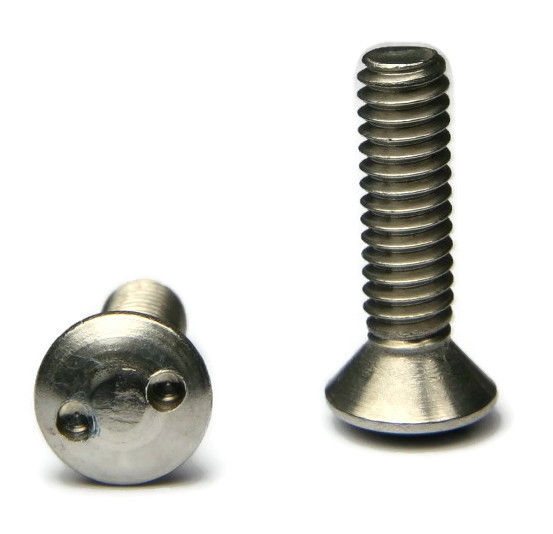

#10-32 Spanner Security Oval Head Machine Screws
Diameter - Thread Pitch: #10-32
- Spanner (snake eye) drive is considered an uncommon drive style making screws with this head type difficult to remove without the proper bit
- Countersunk head with a raised domed top
- Used to secure materials that may be tampered with
- A machine screw is commonly identified by its small size
- Ideal for freshwater moisture environments
- Rust and corrosion resistant
#10-32 Spanner oval head security machine screws are available in grade 18-8 stainless steel.
See Product Specifications
NA = "Not Sold In Single Quantity"
Select Package Quantity
Loading ...
Product Specifications
Corrosion Resistant
Yes
Drive Style
Spanner
Grade
18-8
Head Diameter
Max 0.385 - Min 0.340
Head Style
Oval
Material
Stainless Steel
Overall Head Height
Max 0.176 - Min 0.148
Product Type
Spanner Oval Head Machine Screws are Fully Threaded
Spanner Drive
#10
System of Measurement (Unit)
Inch
Thread Diameter
(#10) Max 0.1890 - Min 0.1818
Thread Direction
Right Hand
Thread Pitch (Count)
32 Per Inch
Thread Standard
UNF
Thread Type
Fine
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
