#14 (1/4) - 14 Round Head One Way Tamper Proof Sheet Metal Screws - 18-8 Stainless Steel

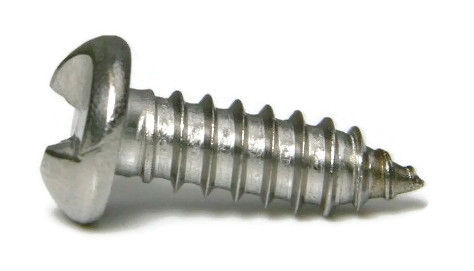

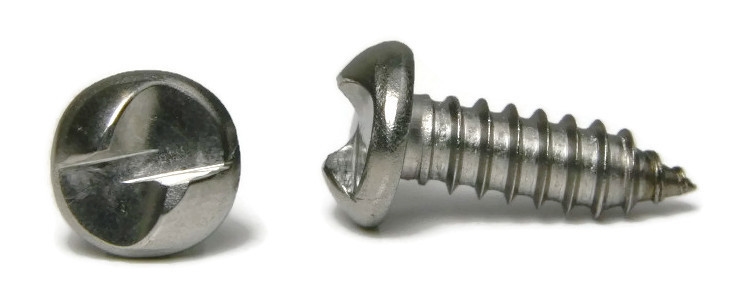

1/4"-14 Stainless Steel One Way Round Head Sheet Metal Security Screws

Diameter: #14 (1/4")

  • #14(1/4")
  • Used to prevent tampering

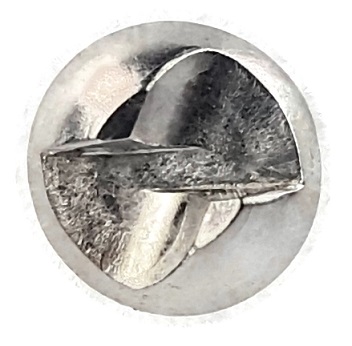

  • Its one way drive style makes these screws particularly hard to remove
  • Sharp point for cutting into wood, plastic and sheet metal
  • Commonly used for:
    • Bathroom Partitions
    • Wall or Floor Mounted Safes
    • Anywhere tampering after installation becomes a security issue
  • One way round head sheet metal screws are extremely difficult to remove making them best for long lasting applications
  • 18-8 Stainless steel is corrosion and rust resistant
  • NOTE: Sheet metal screws provide excellent retention in wood but are very difficult to remove
Type A Sheet Metal Screw Thread Specifications
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size
Select Package Quantity
SubTotal
One Way Round Head Tamper Proof SMS 18-8 SS - #14 x 1/2"
SKU #6208-006-0002
One Way Round Head Tamper Proof SMS 18-8 SS - #14 x 1/2"
SKU #6208-006-0002
1
 NA
25
 $10.75 (0.43/ea)
100
 $36.00 (0.36/ea)
1000
 $310.00 (0.31/ea)
Subtotal: $0.00 /
One Way Round Head Tamper Proof SMS 18-8 SS - #14 x 3/4"
SKU #6208-006-0012
One Way Round Head Tamper Proof SMS 18-8 SS - #14 x 3/4"
SKU #6208-006-0012
1
 $0.54 (0.54/ea)
25
 $12.00 (0.48/ea)
100
 $41.00 (0.41/ea)
1000
 $350.00 (0.35/ea)
Subtotal: $0.00 /
One Way Round Head Tamper Proof SMS 18-8 SS - #14 x 1"
SKU #6208-006-0022
One Way Round Head Tamper Proof SMS 18-8 SS - #14 x 1"
SKU #6208-006-0022
1
 $0.59 (0.59/ea)
25
 $13.25 (0.53/ea)
100
 $45.00 (0.45/ea)
1000
 $380.00 (0.38/ea)
Subtotal: $0.00 /
One Way Round Head Tamper Proof SMS 18-8 SS - #14 x 1-1/4"
SKU #6208-006-0032
One Way Round Head Tamper Proof SMS 18-8 SS - #14 x 1-1/4"
SKU #6208-006-0032
1
 $0.85 (0.85/ea)
25
 $19.75 (0.79/ea)
100
 $75.00 (0.75/ea)
1000
 $730.00 (0.73/ea)
Subtotal: $0.00 /
One Way Round Head Tamper Proof SMS 18-8 SS - #14 x 1-1/2"
SKU #6208-006-0042
One Way Round Head Tamper Proof SMS 18-8 SS - #14 x 1-1/2"
SKU #6208-006-0042
1
 $2.08 (2.08/ea)
25
 $48.75 (1.95/ea)
100
 $178.00 (1.78/ea)
1000
 $1,750.00 (1.75/ea)
Subtotal: $0.00 /



FREQUENTLY USED WITH

32 Piece Industrial Driver Bit Set - Security Tamper Proof - V32-1TP
32 Piece Industrial Driver Bit Set - Security Tamper Proof - V32-1TP 1050-312
32 Piece Industrial Driver Bit Set - Security Tamper Proof - V32-1TP
Security Tamper Proof Insert Bits - 32 Piece Industrial Driver Bit Set
Tamper Proof Insert Bit Set - V32-1TP

Our Price: $36.79
Subtotal: $0.00 /
100 Piece Master Screwdriver Bit Set - Standard and Security - VHS100A
100 Piece Master Screwdriver Bit Set - Standard and Security - VHS100A 1050-306
100 Piece Master Screwdriver Bit Set - Standard and Security - VHS100A
100 Piece Master Screwdriver Bit Set - Standard and Security (Tamper Proof) Bits
Master Screwdriver Bit Set - VHS100A

Our Price: $79.50
Subtotal: $0.00 /
50 Piece Industrial Driver Bit Set - Standard - V50-1P
50 Piece Industrial Driver Bit Set - Standard - V50-1P 1050-308
50 Piece Industrial Driver Bit Set - Standard - V50-1P
50 Piece Industrial Driver Bit Set - Standard Insert Bits
Insert Bit Screwdriver Bit Set - V50-1P

Our Price: $36.79
Subtotal: $0.00 /
Product Specifications
ASME
B18.6.1
Color
Silver
Corrosion Resistant
Yes
Diameter
#14
Drive Style
One Way
Grade
18-8
Head Diameter
Max 0.457 - Min 0.429
Head Style
Round
Material
Stainless Steel
Overall Head Height
Max 0.170 - Min: 0.155
Product Type
Tamper Proof Sheet Metal Screws
Standards Met
ASME B18.6.1
System of Measurement (Unit)
Inch
Thread Diameter Major
(#14) Max 0.254 - Min 0.248
Thread Diameter Minor
(#14) Max 0.185 - Min 0.178
Thread Direction
Right Hand
Thread Pitch (Count)
14 Per Inch
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
