Square Washers Hot Dip Galvanized

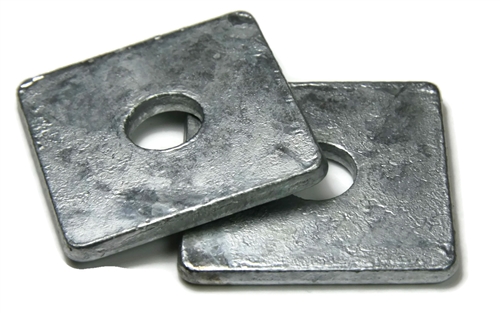

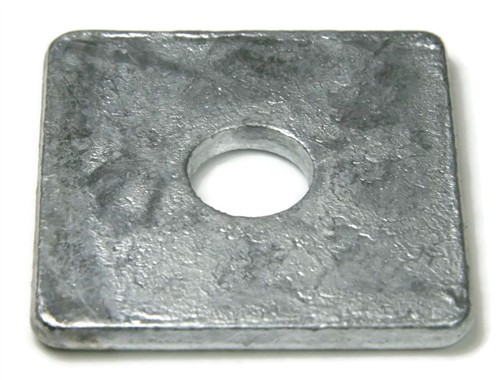

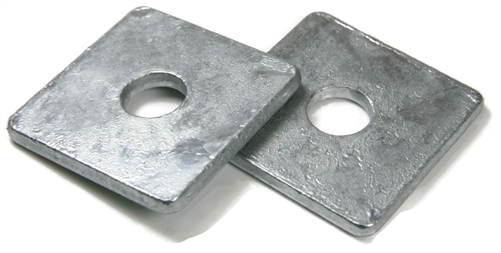

Hot Dip Galvanized Square Washers

Square Plate Washers in a Corrosion Resistant Finish

  • Larger surface area to create greater resistance to movement
  • Limits the effect of vibration loosening of fastener assemblies
  • Commonly used where seismic activity is likely to occur
  • Hot dipped galvanized coating creates a corrosion resistant finish which is perfect for harsh environments
  • Actual measurements may vary slightly +/- depending on production run
  • Due to the finishing process for Hot Dip Galvanized fasteners, it is recommended to only use Hot Dip Galvanized fasteners with Hot Dip Galvanized fasteners and not mix metals. This can create threading and durability issues.

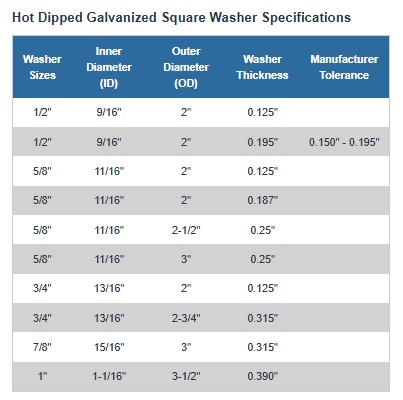

Hot Dipped Galvanized Square Washer Specifications
Washer Sizes Inner Diameter (ID) Outer Diameter (OD) Washer Thickness Manufacturer Tolerance
1/2" 9/16" 2" 0.125"
1/2" 9/16" 2" 0.195" 0.150" - 0.195"
5/8" 11/16" 2" 0.125"
5/8" 11/16" 2" 0.187"
5/8" 11/16" 2-1/2" 0.25"
5/8" 11/16" 3" 0.25"
3/4" 13/16" 2" 0.125"
3/4" 13/16" 2-3/4" 0.315"
7/8" 15/16" 3" 0.315"
1" 1-1/16" 3-1/2" 0.390"
Select Products Below See Product Specifications
NA = "Not Sold In Single Quantity"

Size/SKU
Select Package Quantity Price
SubTotal
1/2" (ID 9/16", OD 2", THK 0.195")
SKU #1070-014-0002
1/2" (ID 9/16", OD 2", THK 0.195")
SKU #1070-014-0002
1 $1.15 (1.15/ea)
100 $95.00 (0.95/ea)
1000 $860.00 (0.86/ea)
Subtotal: $0.00 /
5/8" (ID 11/16", OD 2", THK 0.125")
SKU #1070-014-0012
5/8" (ID 11/16", OD 2", THK 0.125")
SKU #1070-014-0012
1 $0.82 (0.82/ea)
100 $71.00 (0.71/ea)
1000 $680.00 (0.68/ea)
Subtotal: $0.00 /
5/8" (ID 11/16", OD 2", THK 0.187")
SKU #1070-014-0022
5/8" (ID 11/16", OD 2", THK 0.187")
SKU #1070-014-0022
1 $1.29 (1.29/ea)
100 $119.00 (1.19/ea)
1000 $1,100.00 (1.1/ea)
Subtotal: $0.00 /
5/8" (ID 11/16", OD 2-1/2", THK 0.25")
SKU #1070-014-0032
5/8" (ID 11/16", OD 2-1/2", THK 0.25")
SKU #1070-014-0032
1 $2.53 (2.53/ea)
100 $219.00 (2.19/ea)
1000 $2,150.00 (2.15/ea)
Subtotal: $0.00 /
5/8" (ID 11/16", OD 3", THK 0.25")
SKU #1070-014-0042
5/8" (ID 11/16", OD 3", THK 0.25")
SKU #1070-014-0042
1 $3.47 (3.47/ea)
100 $333.00 (3.33/ea)
1000 $3,100.00 (3.1/ea)
Subtotal: $0.00 /
3/4" (ID 13/16", OD 2-3/4", THK 0.315")
SKU #1070-014-0062
3/4" (ID 13/16", OD 2-3/4", THK 0.315")
SKU #1070-014-0062
1 $4.08 (4.08/ea)
100 $395.00 (3.95/ea)
1000 $3,010.00 (3.01/ea)
Subtotal: $0.00 /
7/8" (ID 15/16", OD 3", THK 0.315")
SKU #1070-014-0072
7/8" (ID 15/16", OD 3", THK 0.315")
SKU #1070-014-0072
1 $4.77 (4.77/ea)
100 $463.00 (4.63/ea)
1000 $4,520.00 (4.52/ea)
Subtotal: $0.00 /
1" (ID 1-1/16", OD 3-1/2", THK 0.39")
SKU #1070-014-0082
1" (ID 1-1/16", OD 3-1/2", THK 0.39")
SKU #1070-014-0082
1 $7.49 (7.49/ea)
100 $722.00 (7.22/ea)
1000 $7,010.00 (7.01/ea)
Subtotal: $0.00 /
3/4" (ID 13/16", OD 2", THK 0.125")
SKU #1070-014-0052
3/4" (ID 13/16", OD 2", THK 0.125")
SKU #1070-014-0052
1 $4.39 (4.39/ea)
100 $391.00 (3.91/ea)
1000 $2,110.00 (2.11/ea)
Subtotal: $0.00 /

Frequently Used With

Bolts, Screws & Nuts Gauge
Bolts, Screws & Nuts Gauge 1050-200
Bolts, Screws & Nuts Gauge
Fastener Measuring Gauge Nuts, Bolts Washers & Screws Measuring & Identification Tool
Our Price: $9.00
Subtotal: $0.00
MRO Solution 2400 - Marine Grade Anti-Seize Lubricant - 8 oz.
MRO Solution 2400 - Marine Grade Anti-Seize Lubricant - 8 oz. 1050-106
MRO Solution 2400 - Marine Grade Anti-Seize Lubricant - 8 oz.
Anti Seize MRO Solution 2400 - 8oz Prevent Fastener Galling & Locking Up with Anti-Seize Lubricants
Our Price: $18.11
Subtotal: $0.00
Product Specifications
Product Specifications
Color
Gray
Corrosion Resistant
Yes
Finish
Hot Dip Galvanized
Material
Steel
Product Type
Square Plate Washer
System of Measurement (Unit)
Inch
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
