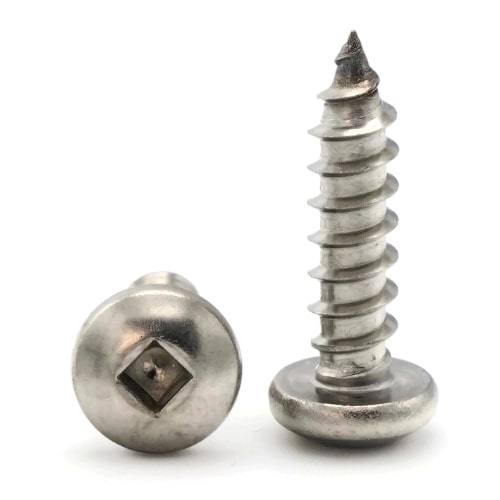

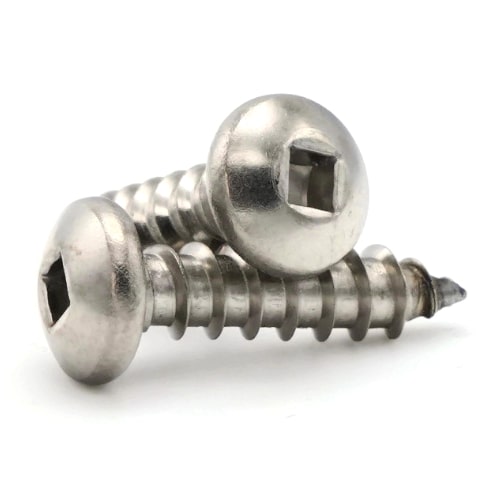

#12 Square Drive Pan Head Sheet Metal Screws 18-8 Stainless Steel

#12-11 Stainless Steel Square Drive Pan Head Sheet Metal Screws

Diameter - Thread Pitch: #12-11


  • #12-11
  • Easily cut into soft materials
  • Fully threaded
  • Threads cut into material
  • Great for attaching metal equipment to wood
  • Strong retention in wood
  • Square drive to prevent stripping at higher torque
  • Sizes listed below as: Diameter - Length
  • 18-8 Stainless steel square drive pan head sheet metal screws are corrosion and rust resistant
  • Great for fresh water moisture environments

Select Products Below
Product Specifications
ANSI
ANSI B18.6.4
Color
Silver
Diameter
#12
Drive Style
Square
Elongation
30%
Hardness
100 Rockwell B
Head Diameter
Max 0.425 - Min 0.407
Head Height Max
0.125
Head Style
Pan
Material
Stainless Steel 18-8
Overall Head Height
Max 0.125 - Min 0.112
Point Type
A
Product Type
Sheet Metal Screws
Reduction
40%
Square Drive
#3
Standards Met
ANSI B18.6.4
Tensile PSI
100,000 - 125,000 PSI
Thread Diameter Major
(#12) 0.221" - 0.215"
Thread Diameter Minor
(#12) 0.162" - 0.155"
Thread Direction
Right Hand
Thread Pitch (Count)
11
Thread Standard
UNC
Thread Type
Coarse
Tolerance (IFI)
Actual measurements may vary slightly +/- depending on production run within IFI Tolerances
Yield PSI
55,000 - 75,000 PSI
